Home >> Chrysler >> 1985 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> Instrument Panel Side

Instrument Panel Side

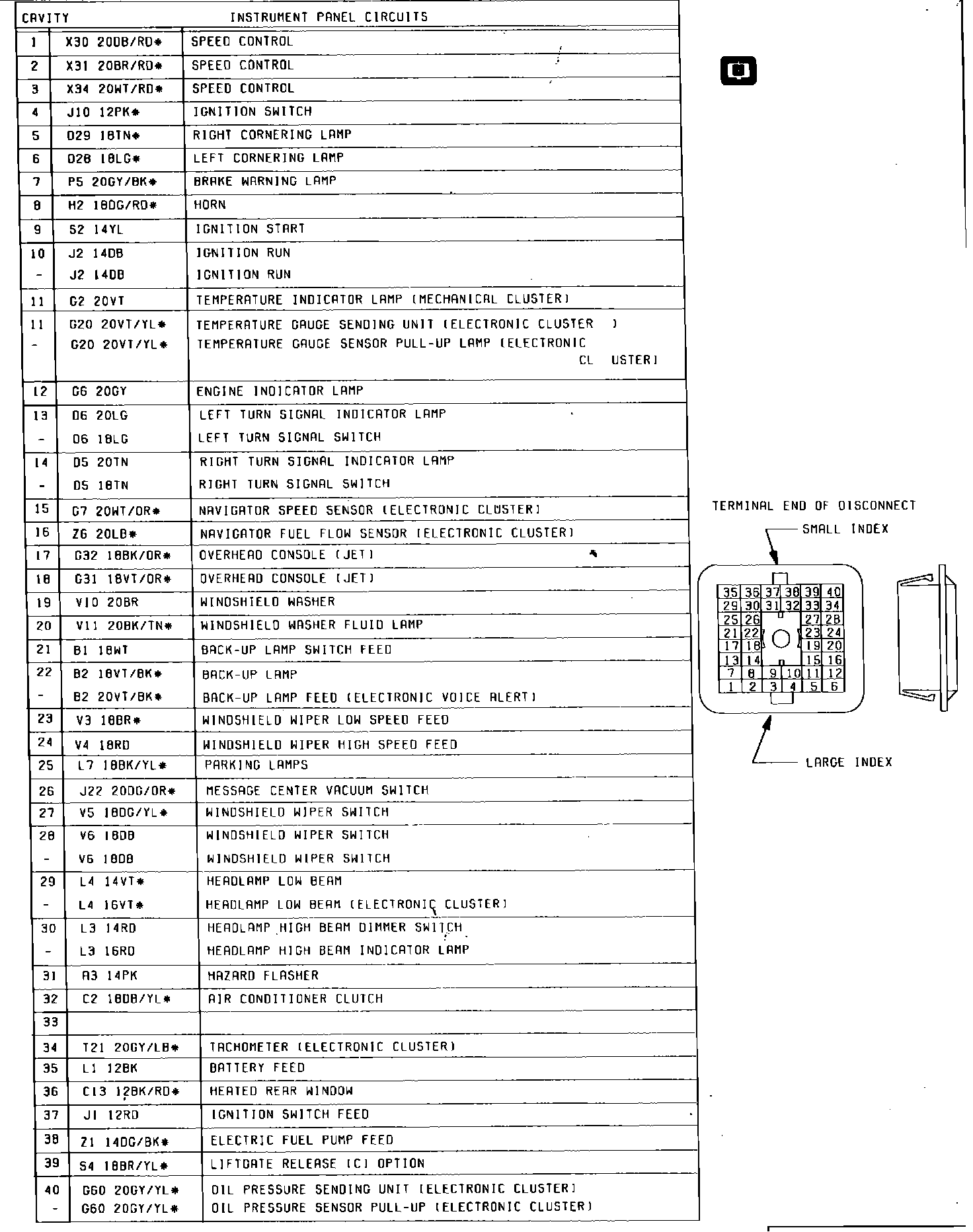

Fig. 5 Bulkhead Connector (40 Way). 1985 Instrument Panel Side:
