Home >> Chrysler >> 1985 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Cluster / Carrier >> System Diagram >> Left Side >> Part 2 of 2

Part 2 of 2

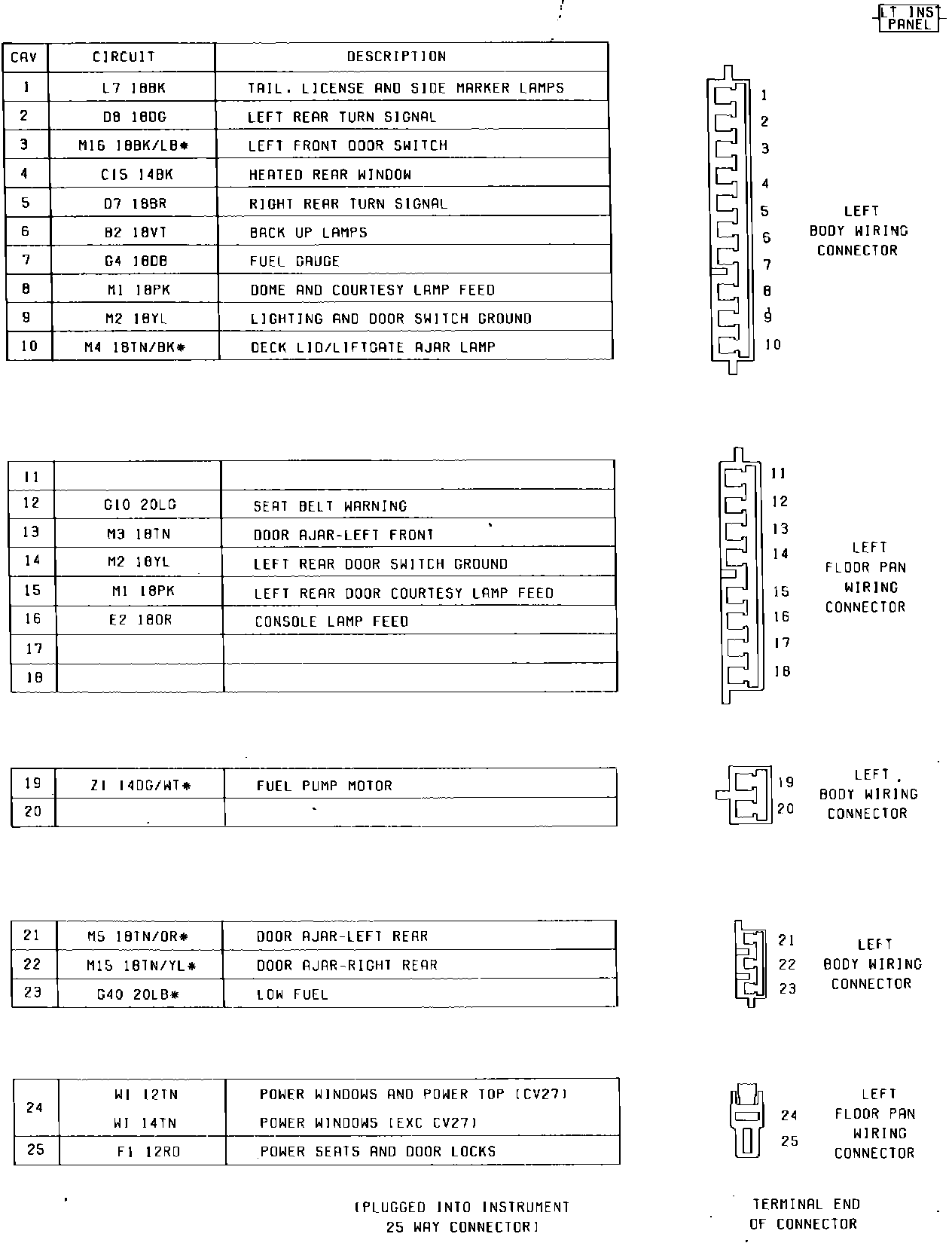

Fig. 8 Instrument To Body Connector (25 Way Left Side, Part 2 of 2). 1985:
