Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
>>
Instrument Panel Circuit Board
>>
Mechanical Cluster
Mechanical Cluster

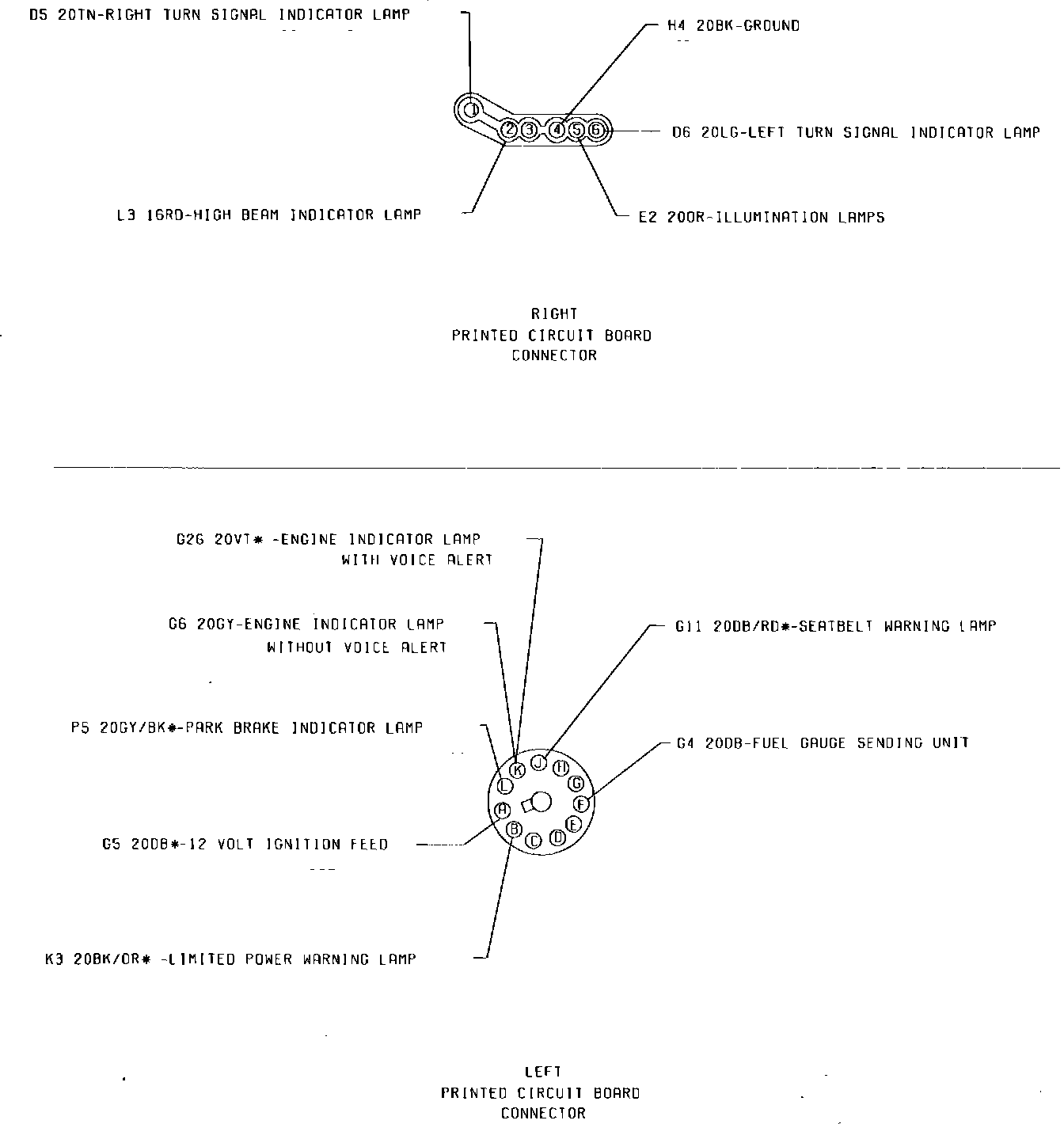

Fig. 4 Circuit Board Connector (Manual Cluster). 1985:
