Deck Lid/Liftgate Release Wiring Circuit

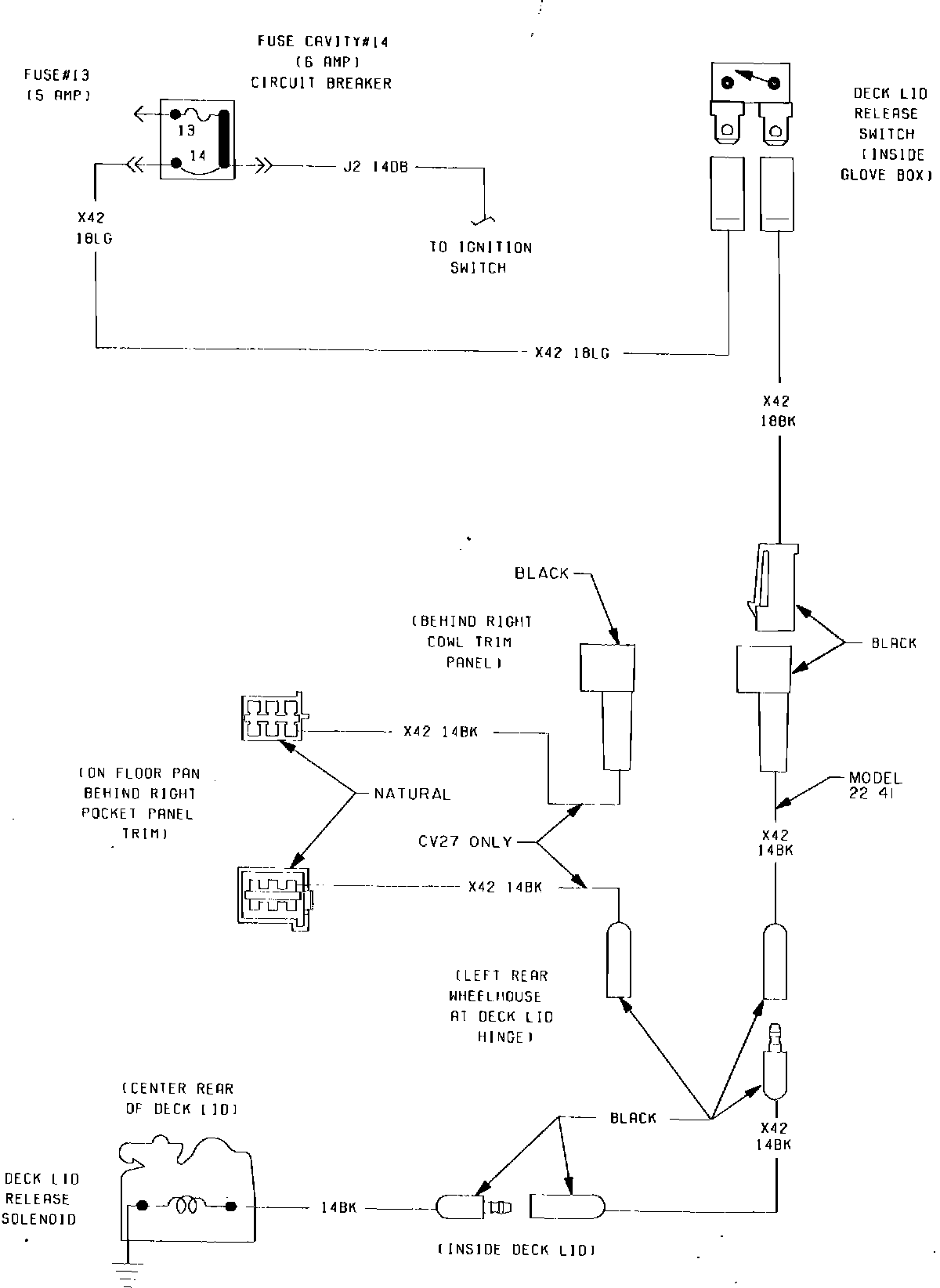

Fig. 30 Decklid Release System Wiring Circuit. 1985:

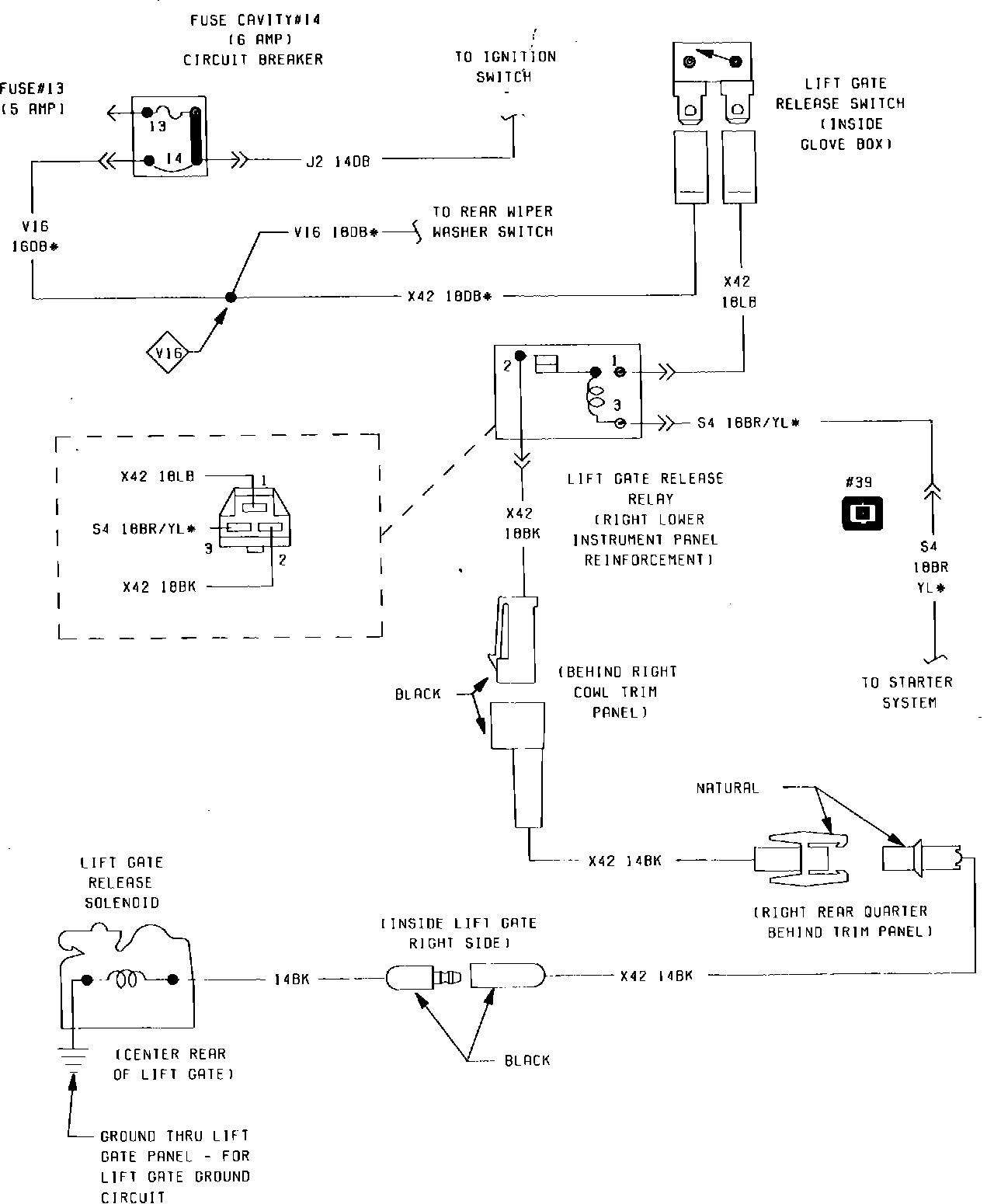

Fig. 57 Liftgate Release System Wiring Circuit. 1985:
