Convertible With 4 Power Windows

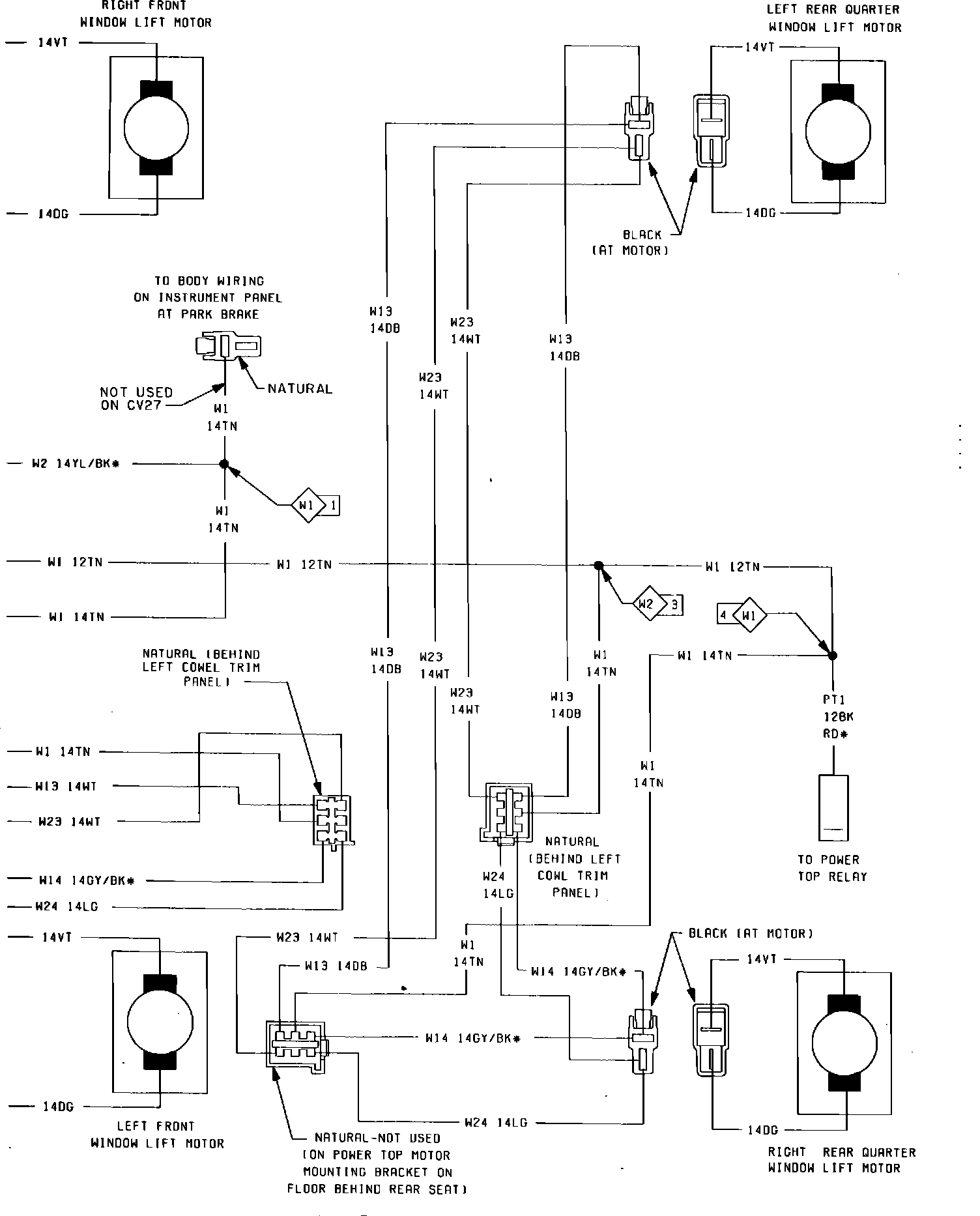

Fig. 101 Power Window Wiring Circuit (Part 1 of 2). 1984 2 Door Convertible W/4 Window System:



Fig. 101 Power Window Wiring Circuit (Part 2 of 2). 1984 2 Door Convertible W/4 Window System:
