Convertible Quarter Window

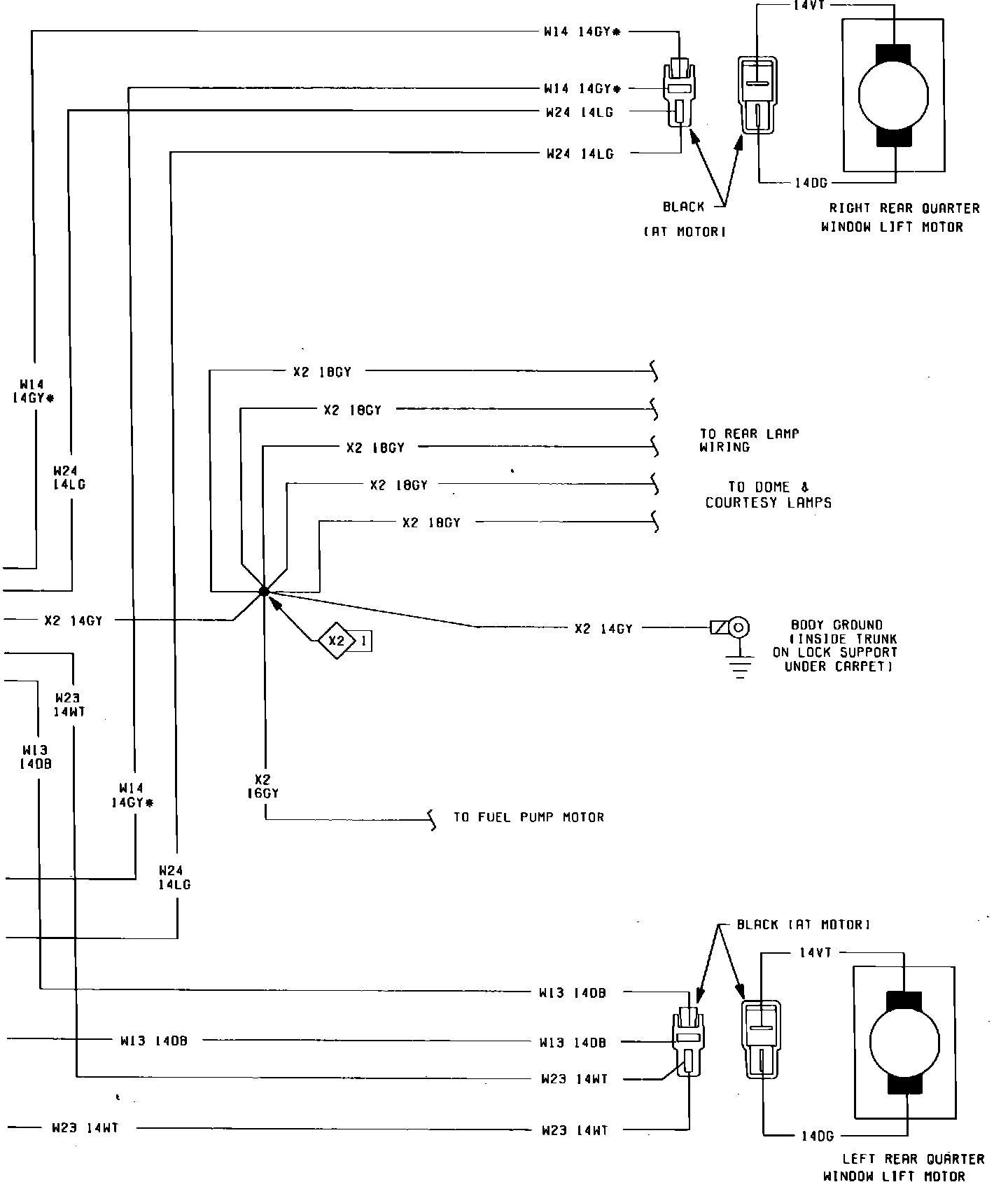

Fig. 102 Power Window Wiring Circuit (Part 1 of 2). 1984 Convertible W/Power Rear Quarter:



Fig. 102 Power Window Wiring Circuit (Part 1 of 2). 1984 Convertible W/Power Rear Quarter:
