Home >> Chrysler >> 1984 >> Lebaron Convertible L4-156 2.6L SOHC VIN G 2-bbl >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Power Window Circuit Diagrams >> 2 Door

2 Door

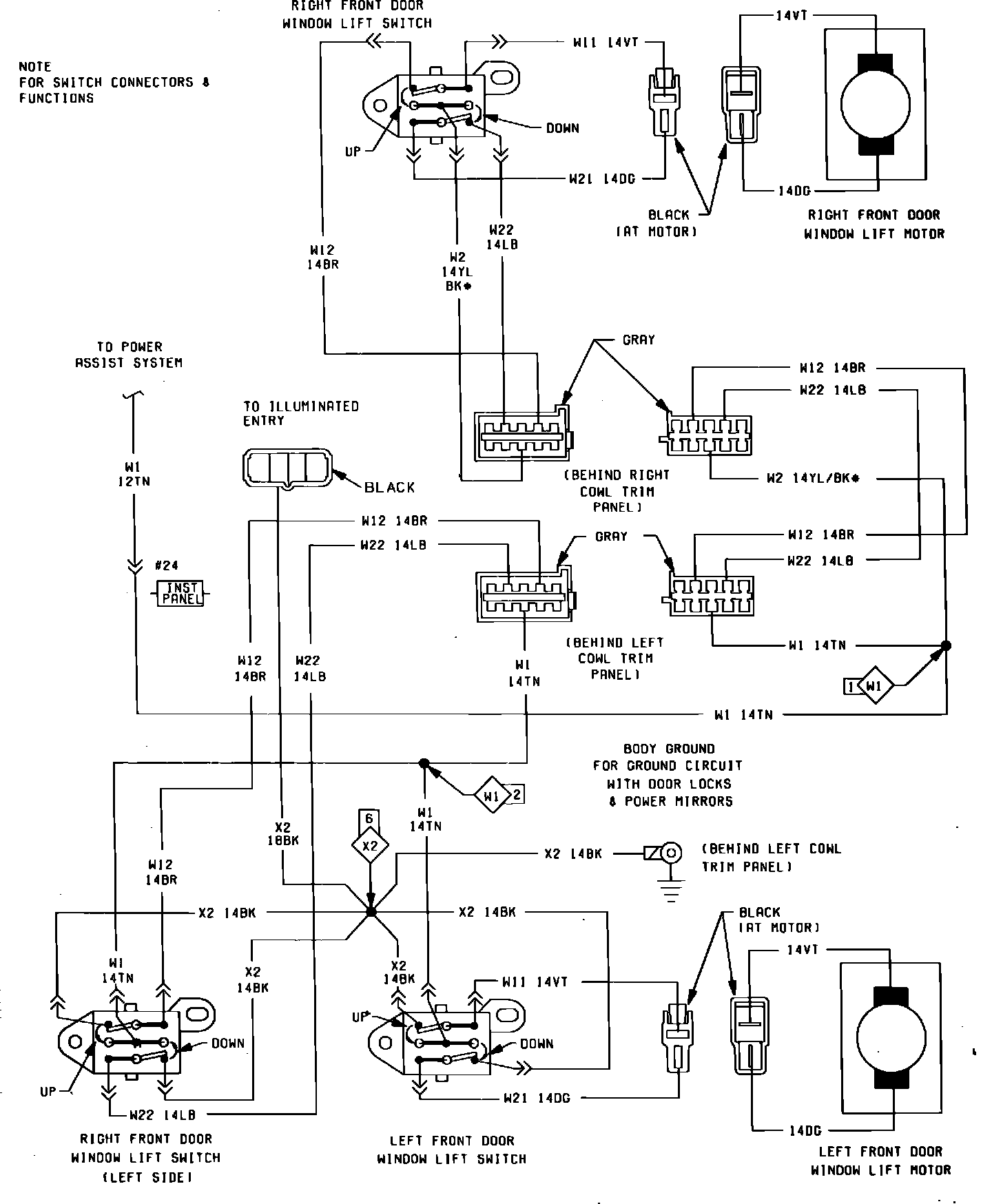

Fig. 100 Power Window Wiring Circuit. 1984 2 Door:
