Home >> Chrysler >> 1984 >> Lebaron Convertible L4-156 2.6L SOHC VIN G 2-bbl >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Power Assist System Wiring Circuit

Power Assist System Wiring Circuit

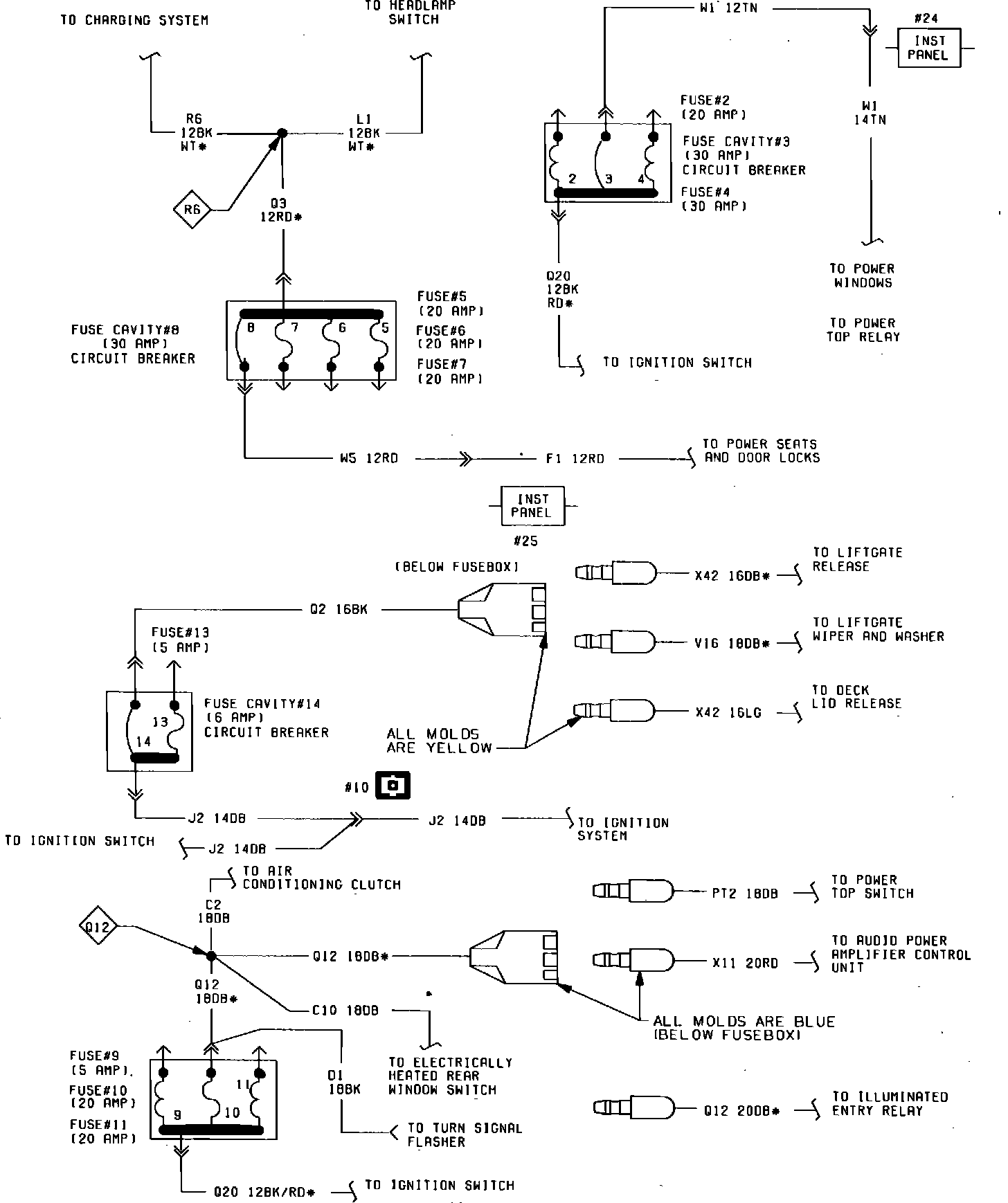

Fig. 86 Power Assist System Wiring Circuit. 1984:
