Wiring Diagrams - Manual Revisions

84chrysler10

Models


1984 Laser, Daytona, LeBaron, E Class, 600 & New Yorker Front Wheel Drive Vehicles


Subject


Service Manual Revision on Wiring Diagrams


Index


ELECTRICAL


Date

July 16, 1984


No.


08-20-84

P-2953-C
Attached are revised pages of the 1984 Front Wheel Drive Electrical and Engine Performance Service Manual, publication #81-270-4004.

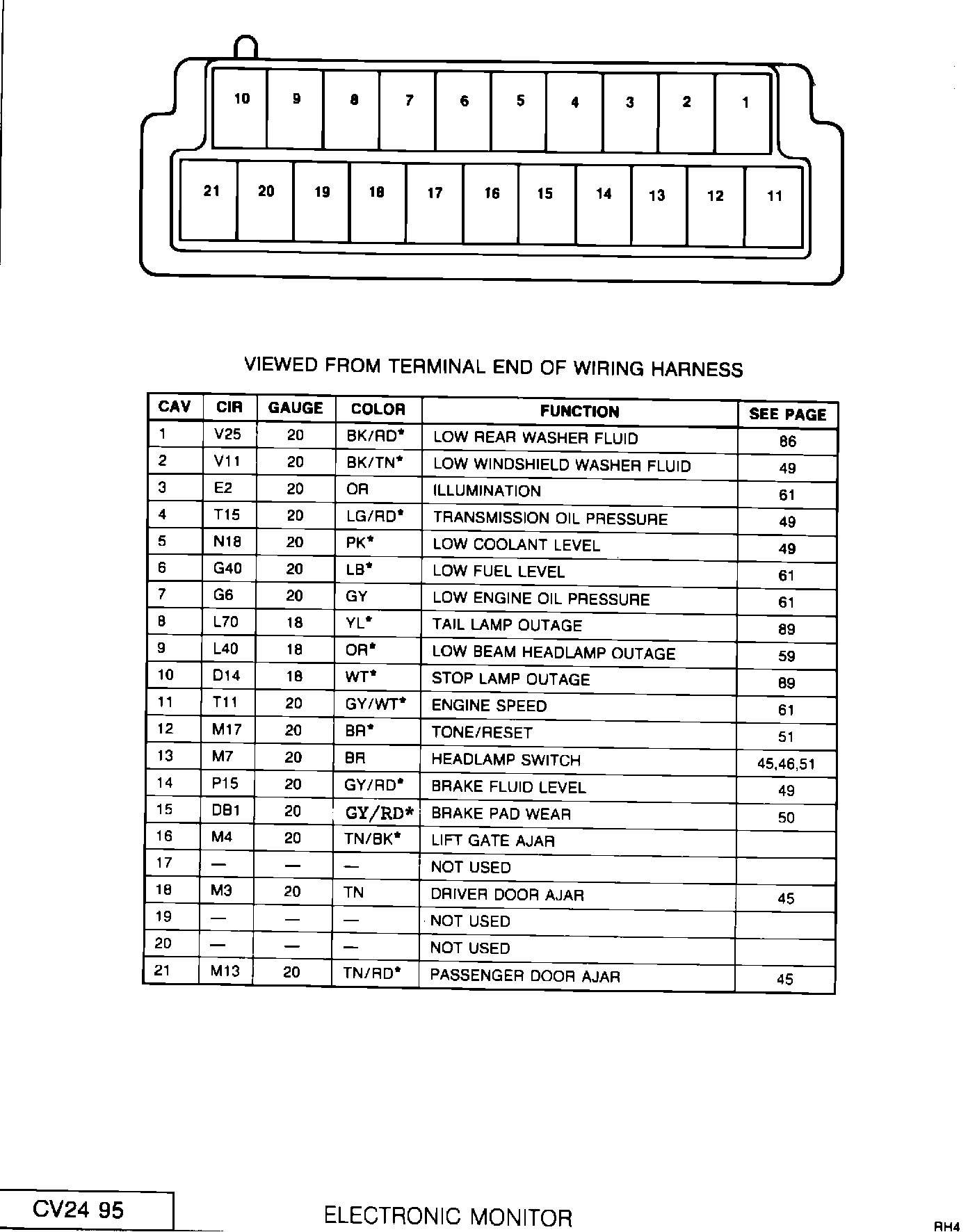

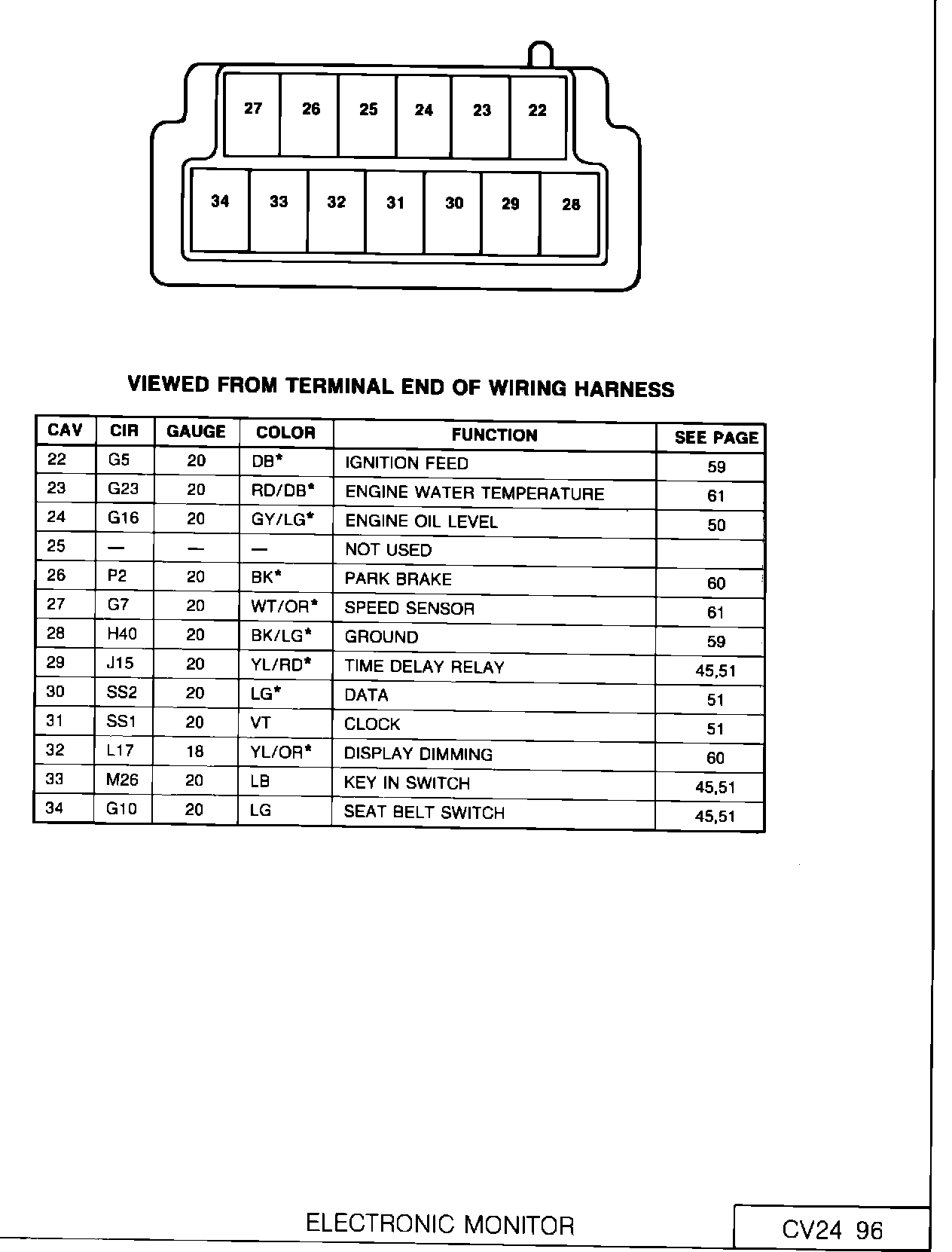

^ Pages 8-964 and 8-965 (wiring diagram numbers CV24 95 and CV24 96) have revised terminal cavity numbers for the electronic monitor.

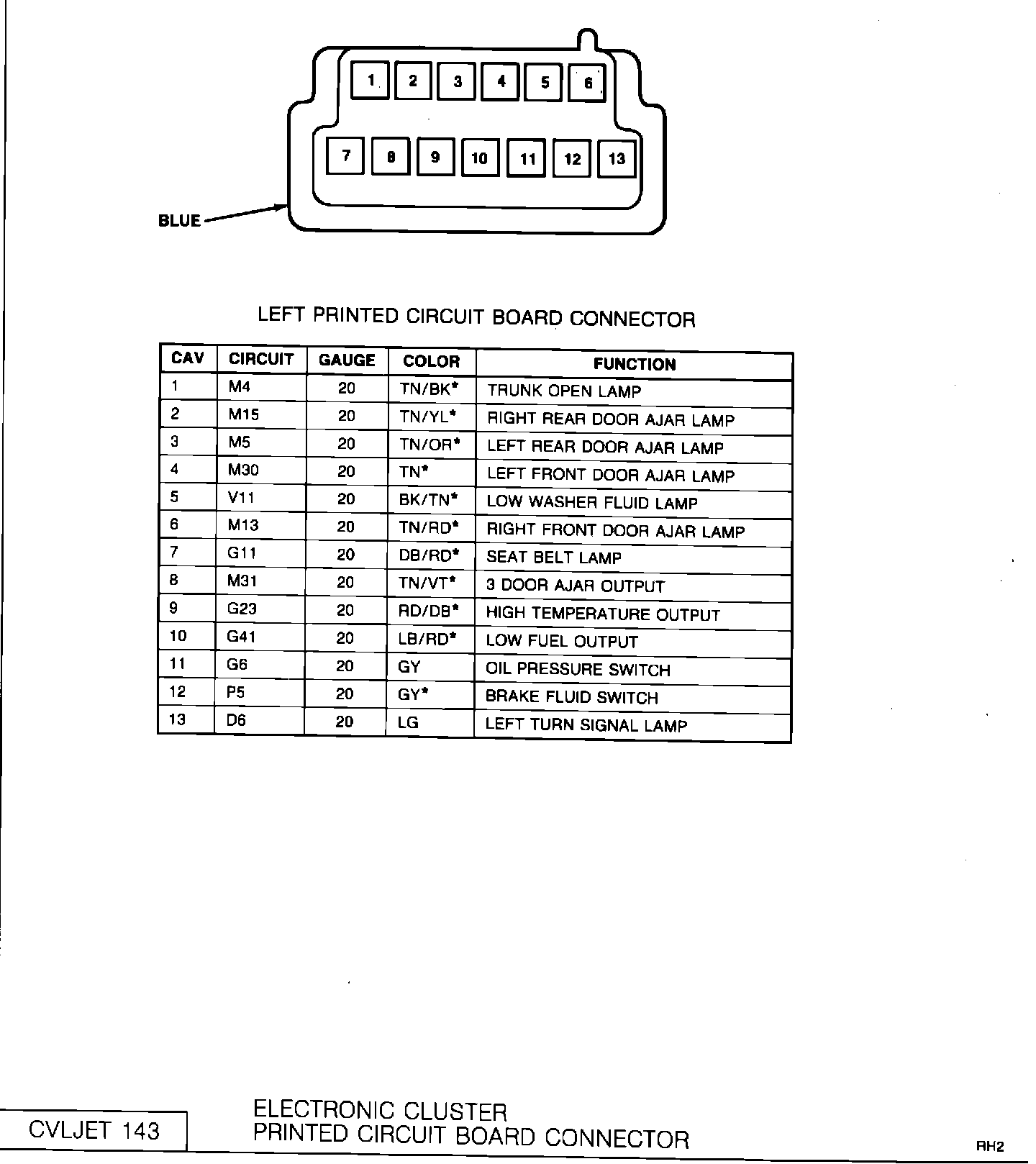

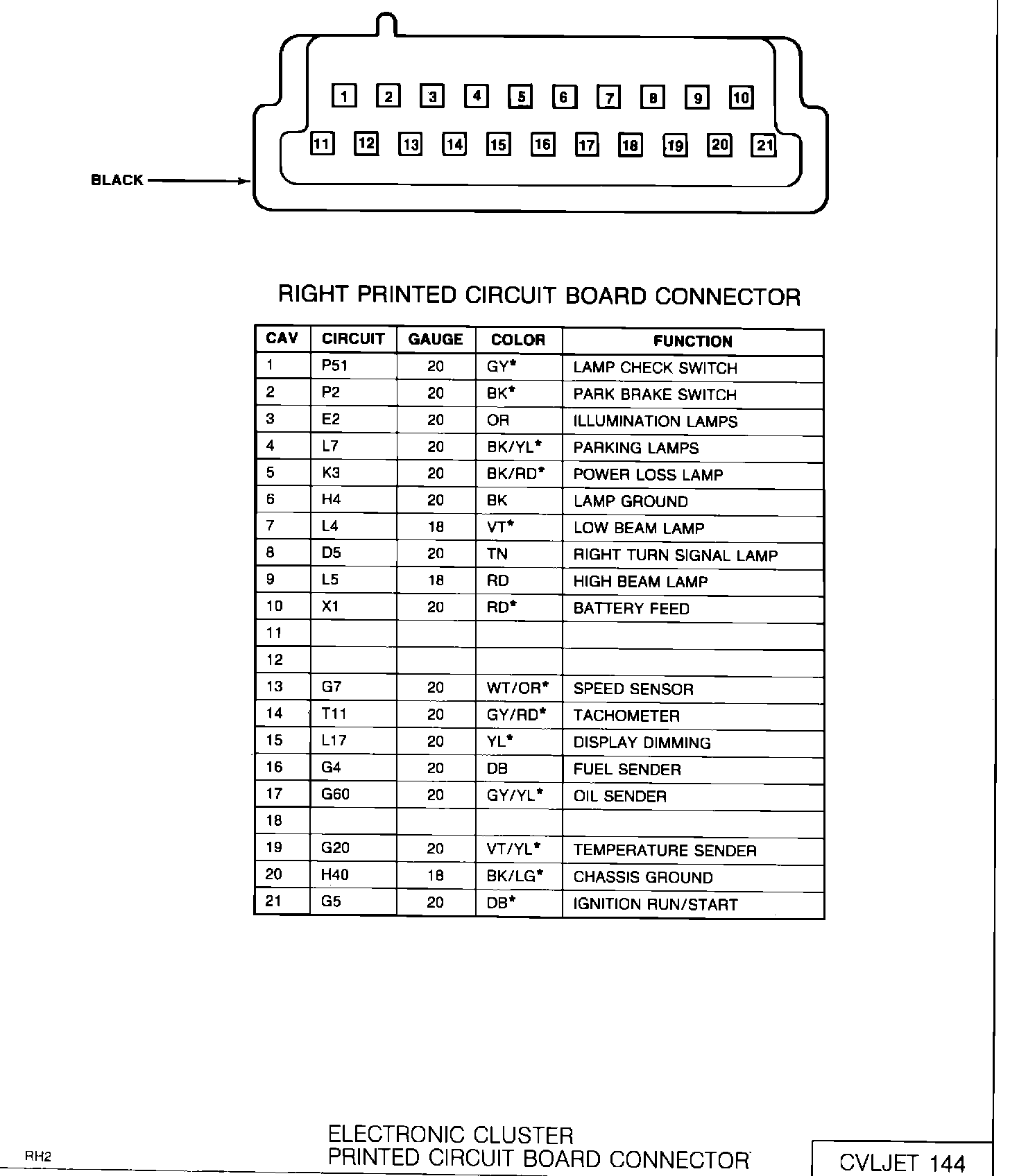

^ Pages 8-858 and 8-859 (wiring diagram numbers CVLJET 143 and CVLJET 144) have revised terminal cavity numbers for the electronic instrument cluster.


Staple, glue, or tape these pages in your service manual for future reference.


POLICY: Information only



8-964 G/C-V WIRING DIAGRAMS-ELECTRICAL



G/C-V WIRING DIAGRAMS-ELECTRICAL 8-965




8-858-K & E/C-V-L-J-E-T WIRING DIAGRAMS-ELECTRICAL



K & E/C-V-L-J-E-T WIRING DIAGRAMS-ELECTRICAL-8-859
