Clearance and Design Specifications

Specifications

A-415, 413 and A-470 Torqueflite Transaxles

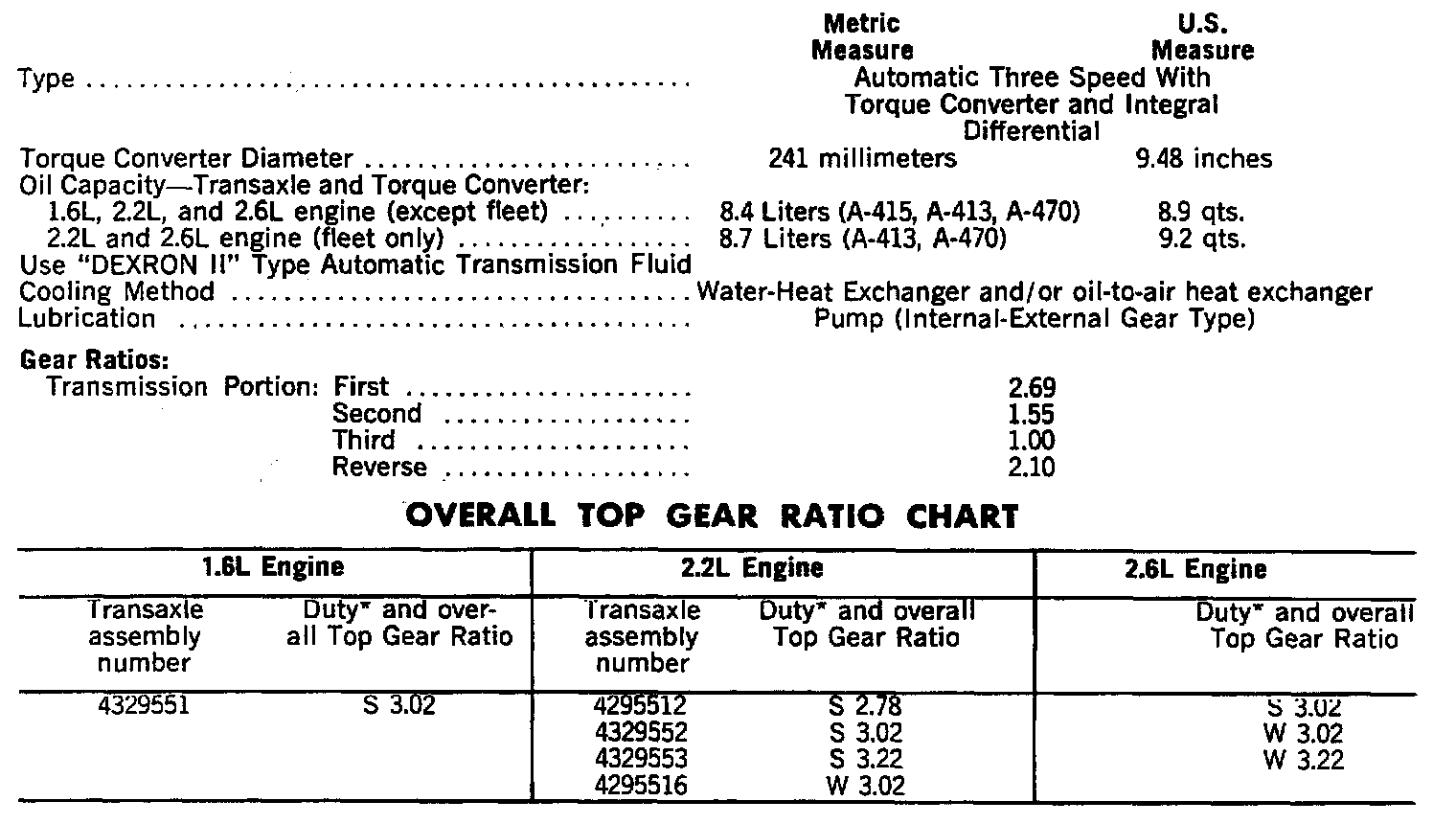

General Specifications:

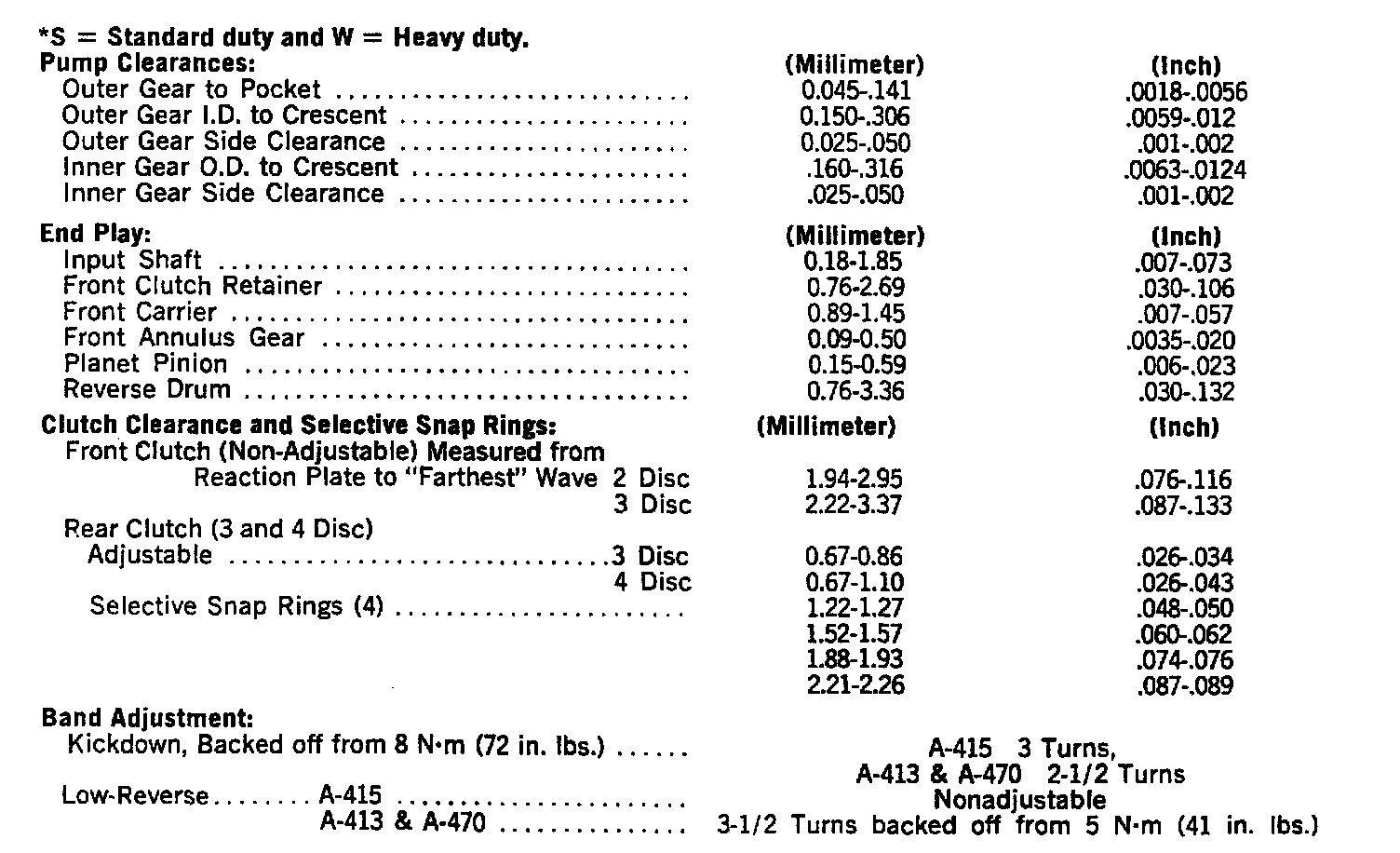

Continued:




Continued:





Speedometer Pinions:

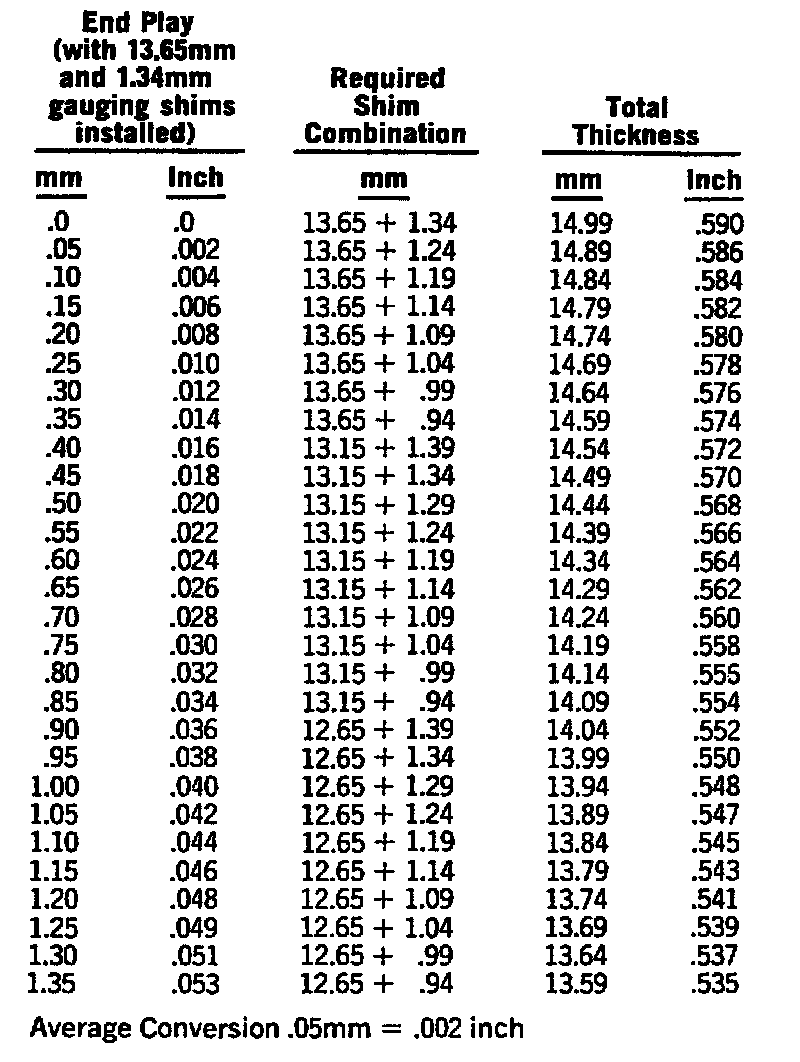

OUTPUT SHAFT BEARING SHIM CHART

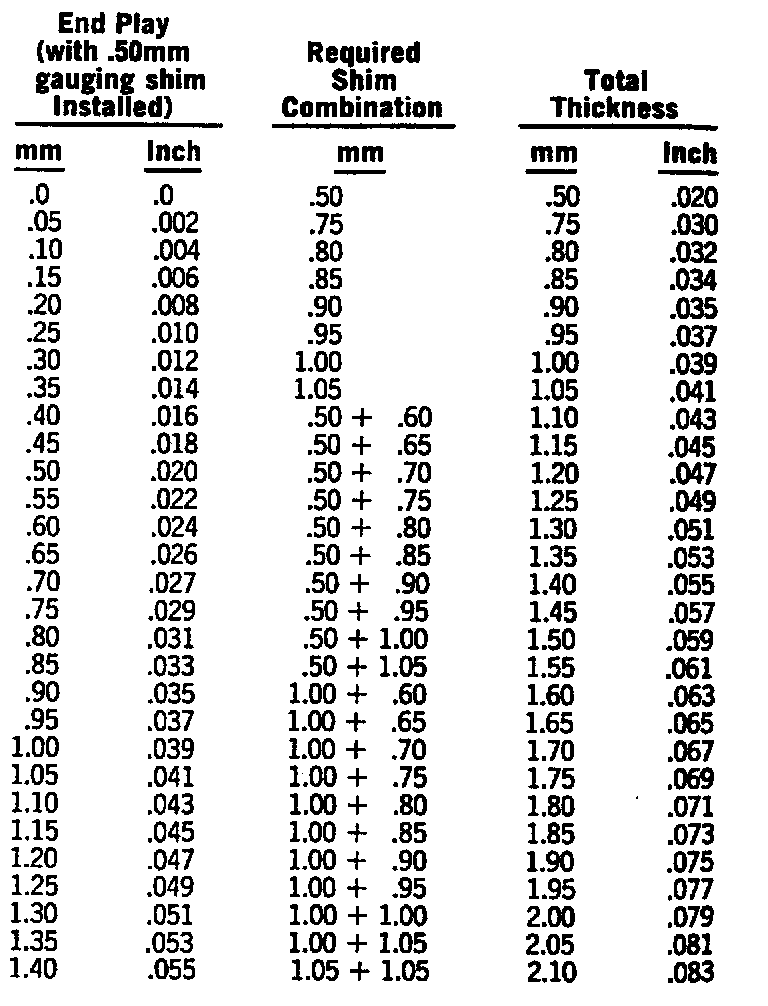

DIFFERENTIAL BEARING SHIM CHART

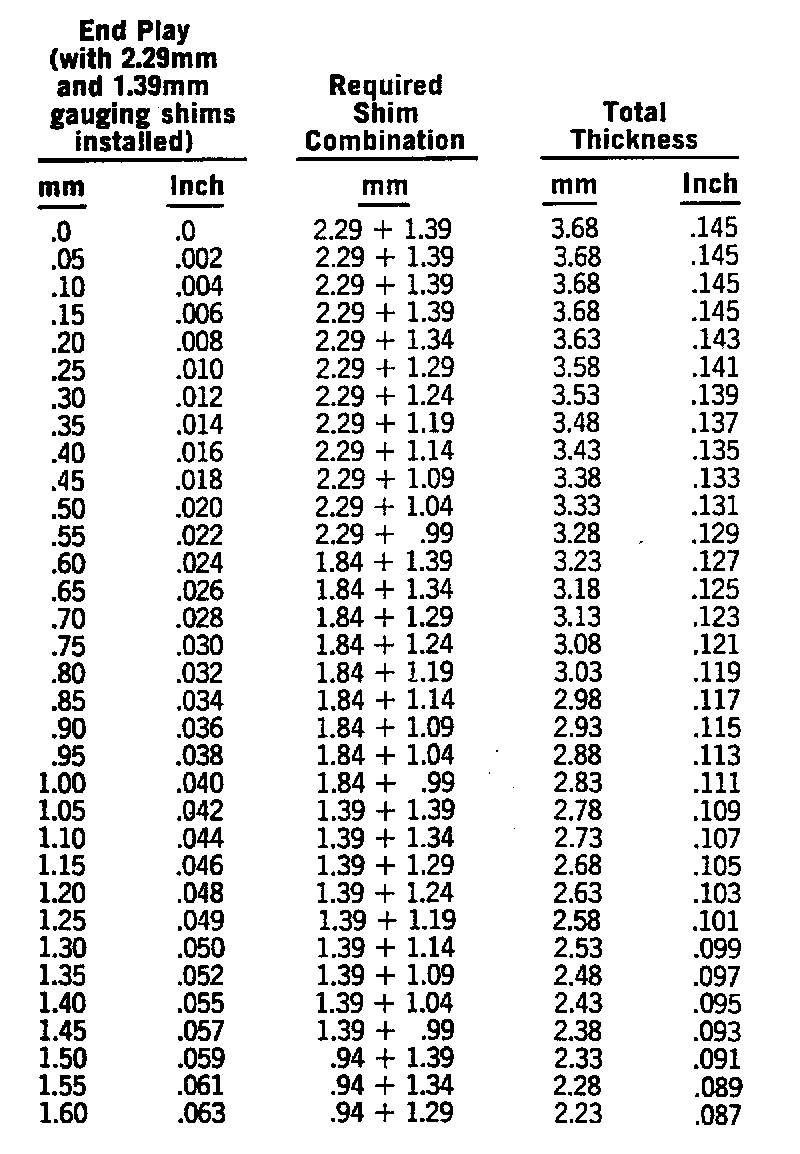

TRANSFER BEARING SHIM CHART

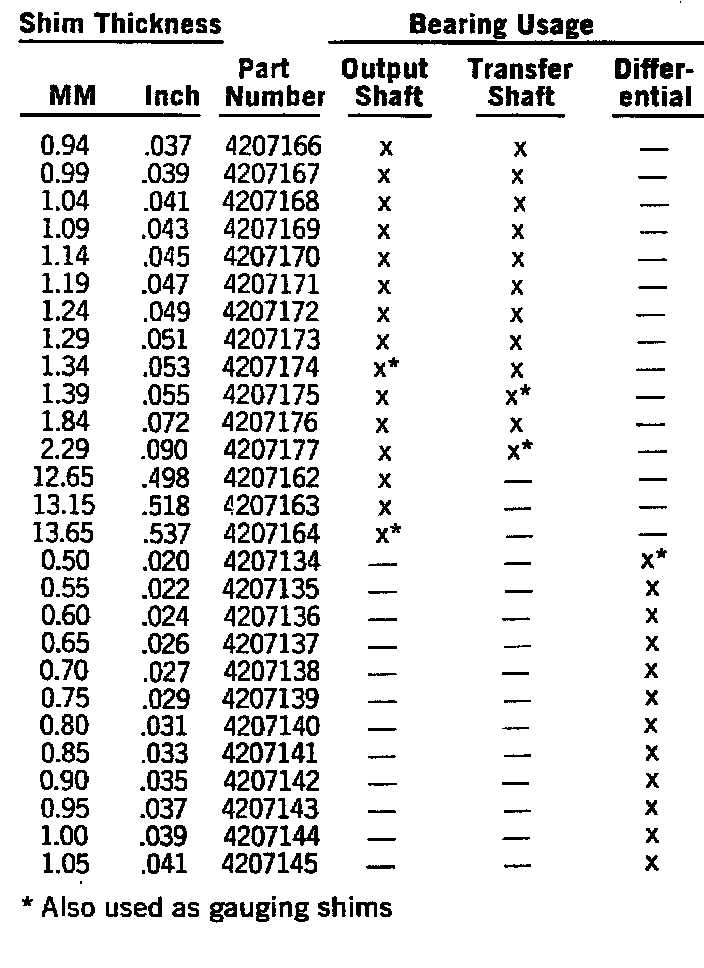

BEARING SHIM CHART
