Seat Belts - Wiring Diagram Manual Revision

84chrysler10

Models


All 1984 LeBaron Dodge 600, E-Class, & New Yorker Front Wheel Drive Vehicles


Subject


Front Wheel Drive Service Manual Revision on Seat Belt Wiring Diagram


Index


ELECTRICAL

Date

April 16, 1984


No.


08-12-84

P-1526-C

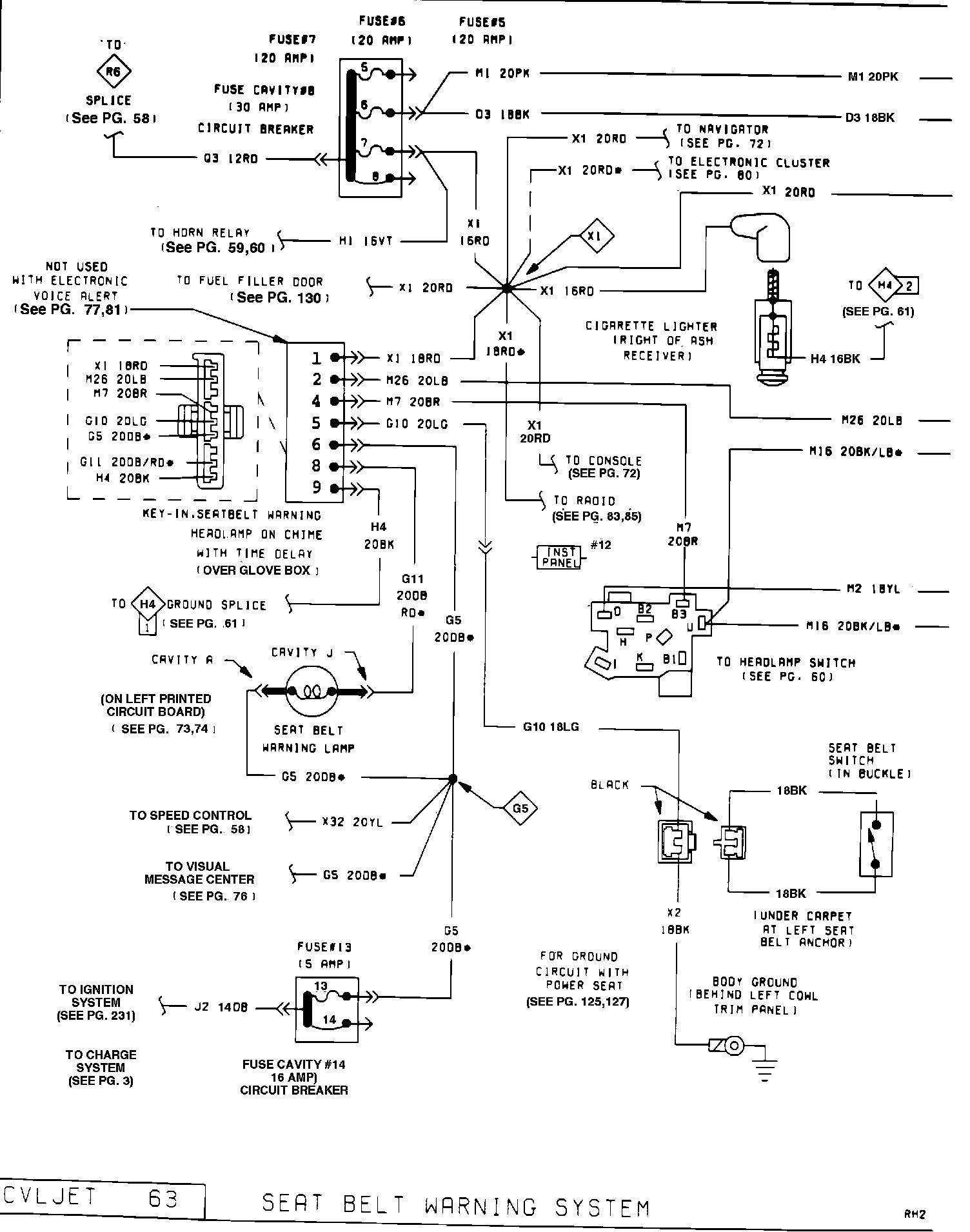

Attached is a revised page 8-778 (wiring diagram number CVLJET 63) of your Front Wheel Drive Electrical and Engine Performance Service Manual, publication #81-270-4004.

Please glue, staple, or tape this page in your service manual for future reference. It revises the chime module connector wiring to show the M7 20BR wire in cavity number four instead of cavity number three of the connector (numbered from top locator end of connector).
POLICY: Information only
