Home >> Chrysler >> 1984 >> Lebaron Convertible L4-156 2.6L SOHC VIN G 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Federal

Federal

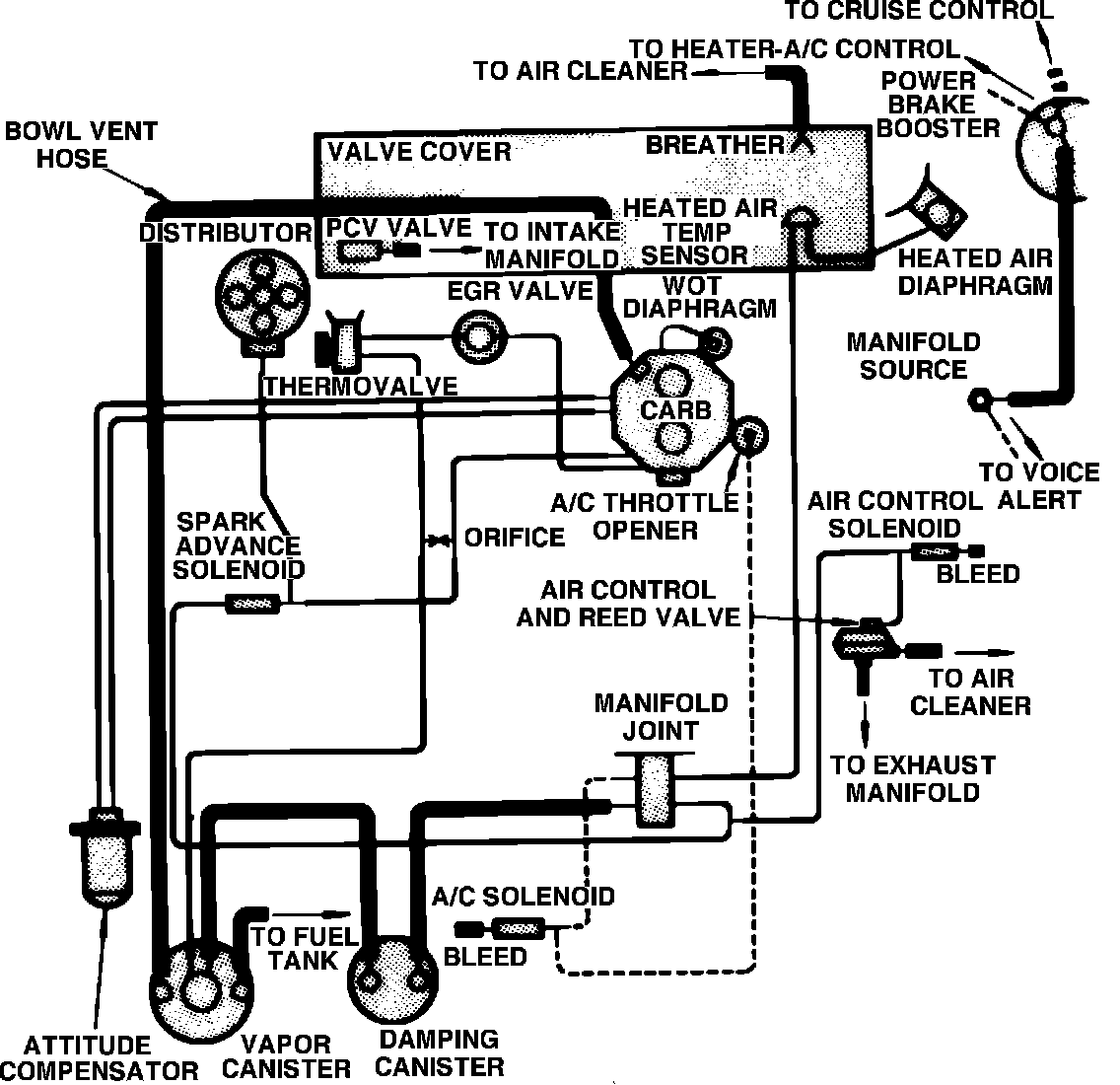

Fig. 7 Vacuum hose routing. 1984 4-156/2.6L 2 Bbl. Federal:
