Home >> Chrysler >> 1984 >> Lebaron Convertible L4-156 2.6L SOHC VIN G 2-bbl >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Speedometer Cable >> Testing and Inspection

Speedometer Cable: Testing and Inspection

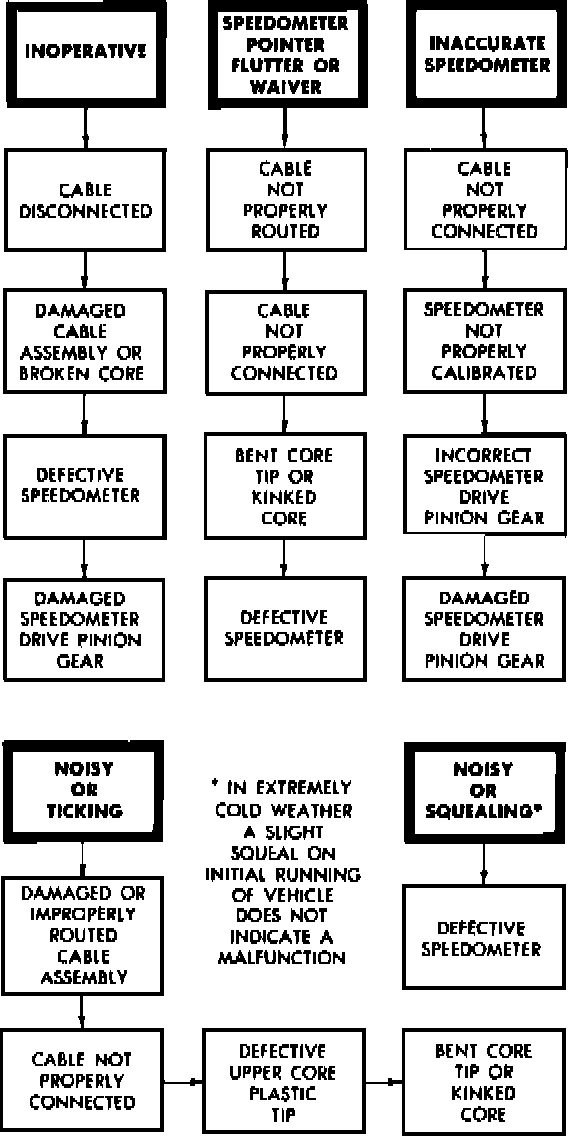

Fig. 1 Speedometer & cable diagnosis.:
