Vehicle Identification Conquest

VEHICLE IDENTIFICATION NUMBER LOCATION

The vehicle identification number (V.I.N.) is located on a plate attached to the left top side of the instrument panel and visible through the windshield.

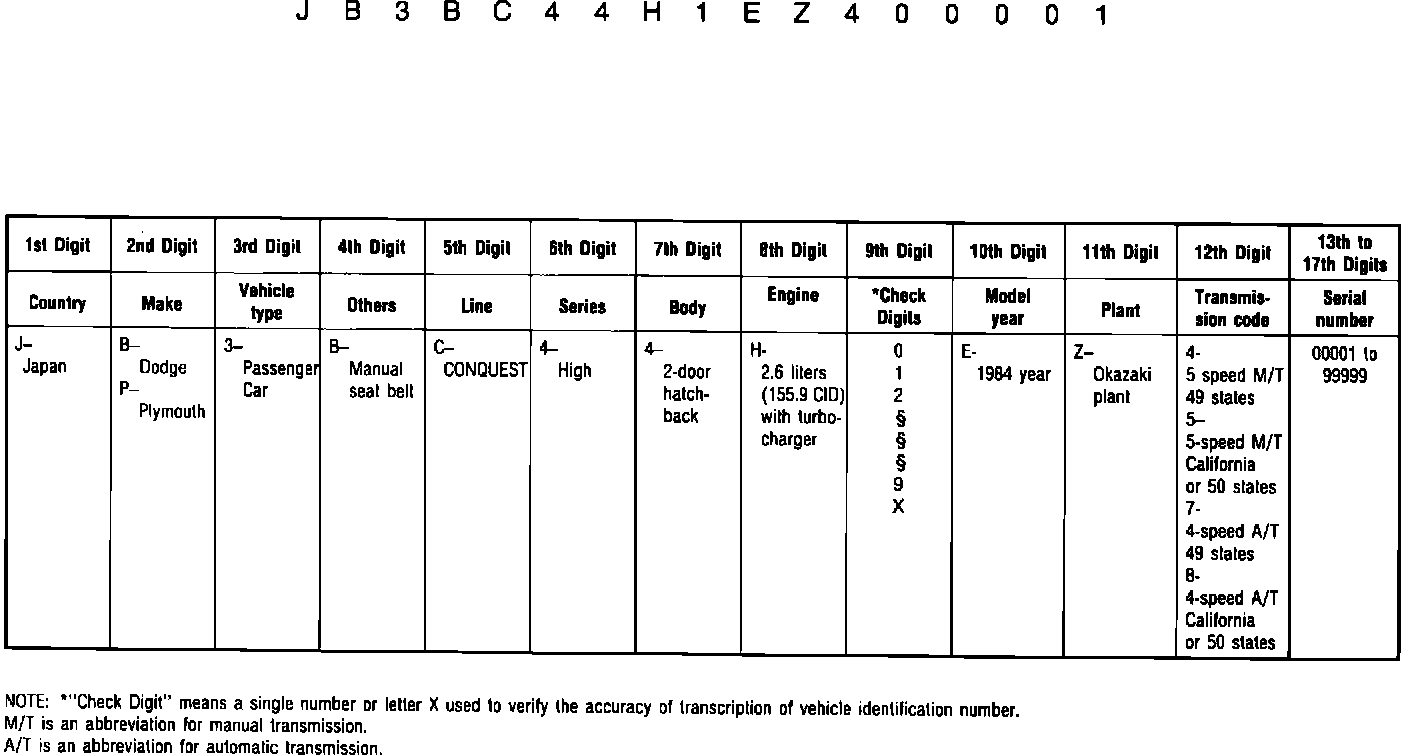

VEHICLE IDENTIFICATION CODE CHART PLATE

All vehicle identification numbers contain 17 digits. The vehicle number is a code which tells country, make, vehicle type, etc.

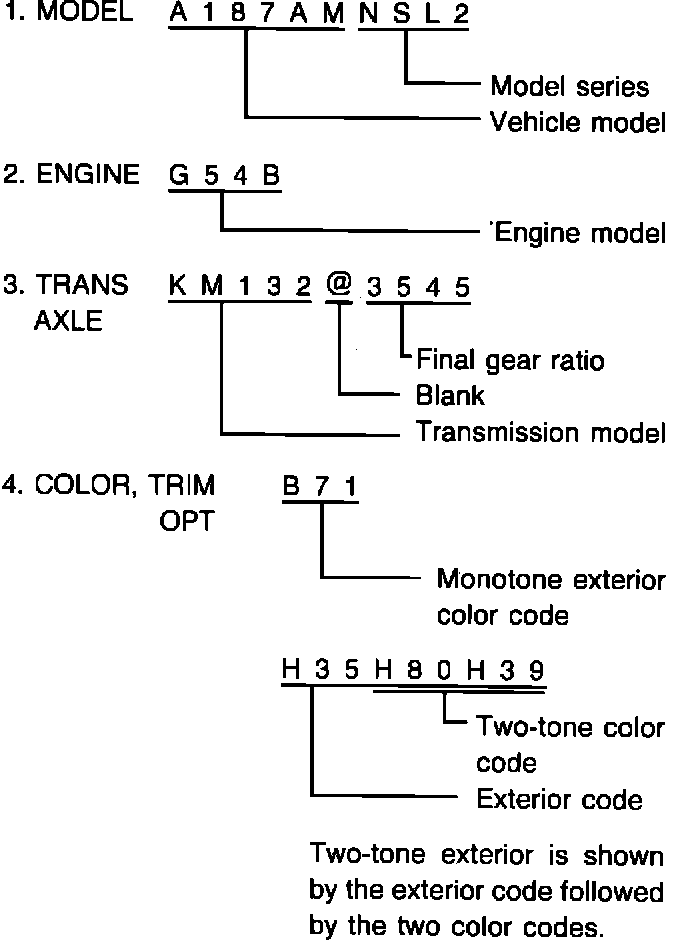

VEHICLE INFORMATION CODE PLATE

Vehicle information code plate is riveted onto the firewall in the engine compartment. The plate shows model code, engine model, transmission model, final gear ratio, and body color code.



VEHICLE IDENTIFICATION
CHASSIS NUMBER

Stamping Location

The chassis number is stamped on the top center of the fire wall in the engine compartment.

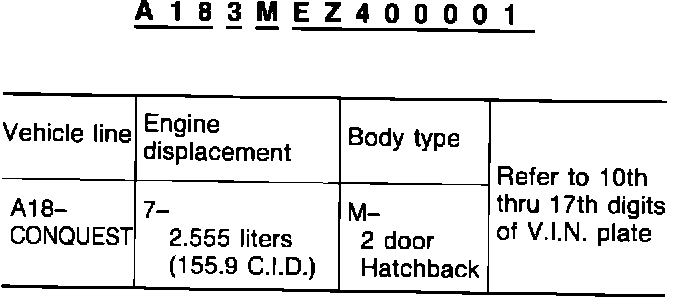

Chassis Number Code Chart
VEHICLE SAFETY CERTIFICATION LABEL

The vehicle safety certification label is attached to face of left door pillar. (OOY599) This label indicates the month and year of manufacture, Gross Vehicle Weight Rating (G.A.W.R.) front, Gross Axle Weight Rating (G.A.W.R.) rear and Vehicle Identification Number (V.I.N.)
VEHICLE IDENTIFICATION

The engine model number is stamped at the right front side on the top edge of the cylinder block as shown in the following:

Engine model Engine displacement

G45B 2.555 liters (155.9 C.I.D.)

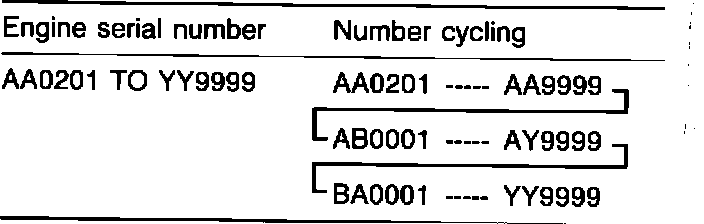

The engine serial number is stamped near the engine model number, and the serial number cycles, as shown below.
ENGINE TRANSMISSION MODEL

Vehicle model Engine-transmission Transmission
model model

A187AMNUL
G54B-1-J1U KM132-B-CNUL
A187AMNSL
A187AMRUL
G54B-1-R0K JM600
A187AMRSL


BODY COLOR CODE

Exterior code Body color

Monotone
B71 Blue (Metallic)
H39 Dark gray (Metallic)
H80 Silver (Metallic)
K16 Gold
R49 Red (Metallic)
X15 Black

Two-tone
H35H80H39 Dark gray (Metallic)/
Silver (Metallic)
W59W42K16 White/Gold
X52X15K16 Black/Gold
