Radiator Fan and Compressor Circuits
>>
W/Feedback Carburetor
W/Feedback Carburetor
Air Conditioning & Heater System - 2.6L Feedback (Part 1 of 2):

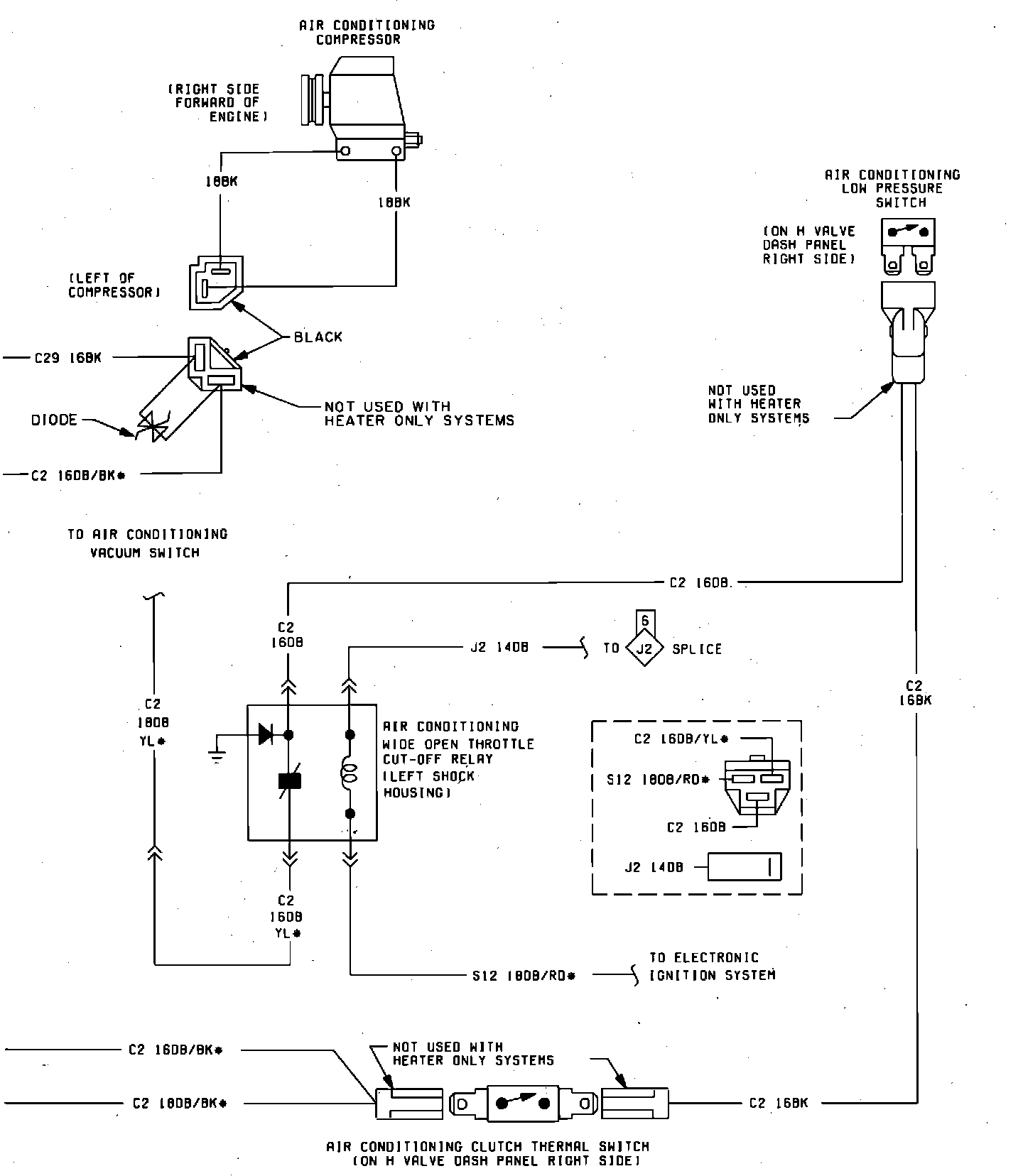

Air Conditioning & Heater System - 2.6L Feedback (Part 2 of 2):
