Home >> Chrysler >> 1984 >> Lebaron Convertible L4-156 2.6L SOHC VIN G 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> System Diagram >> With Feedback Carburetor >> Part 2 of 2

Part 2 of 2

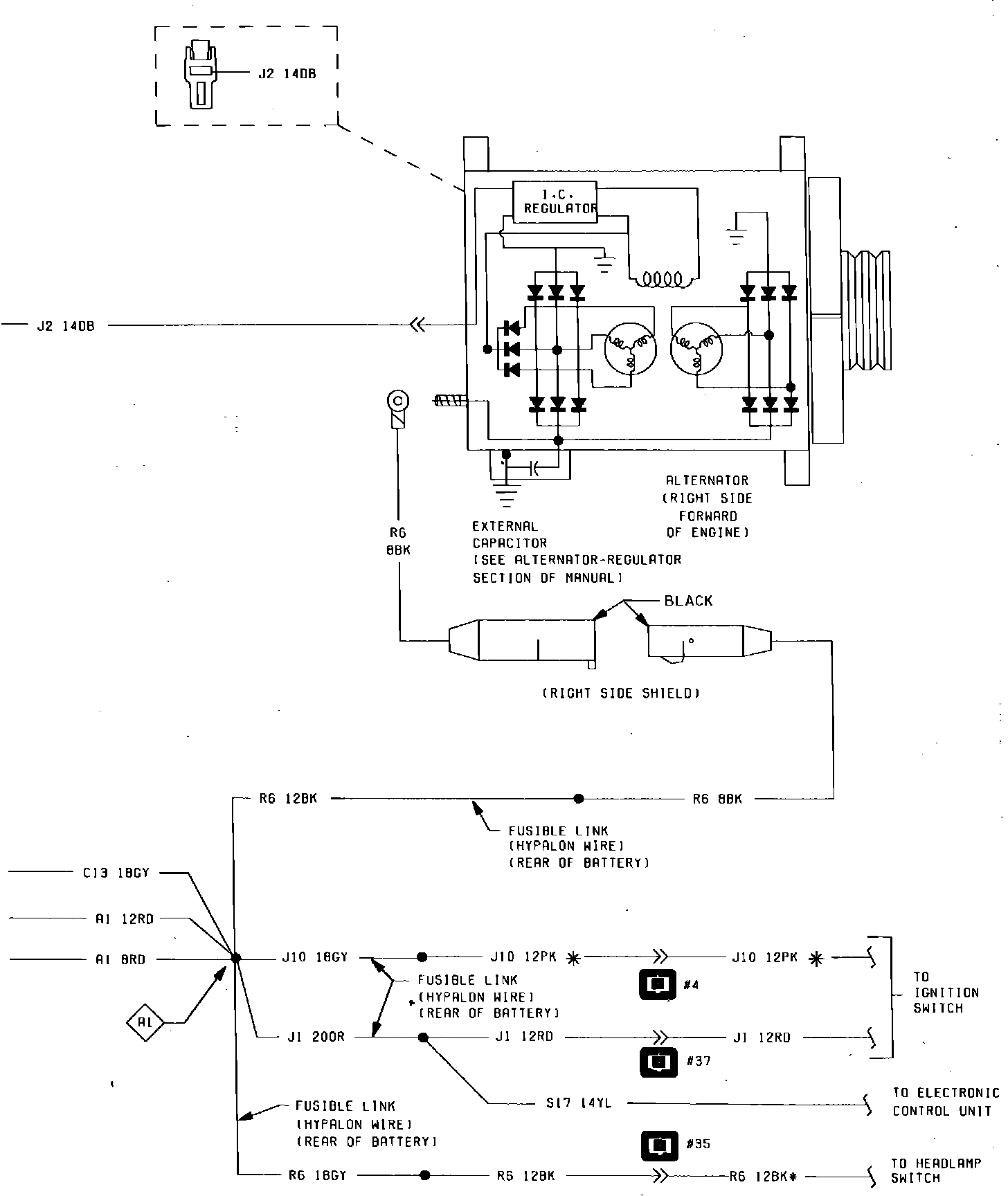

Fig. 32 Charging System Wiring Circuit (Part 2 of 2). 1984 4-156/2.6L W/Feedback Carburetor:
