Home >> Chrysler >> 1984 >> Lebaron Convertible L4-156 2.6L SOHC VIN G 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Speaker >> Exc Convertible

Exc Convertible

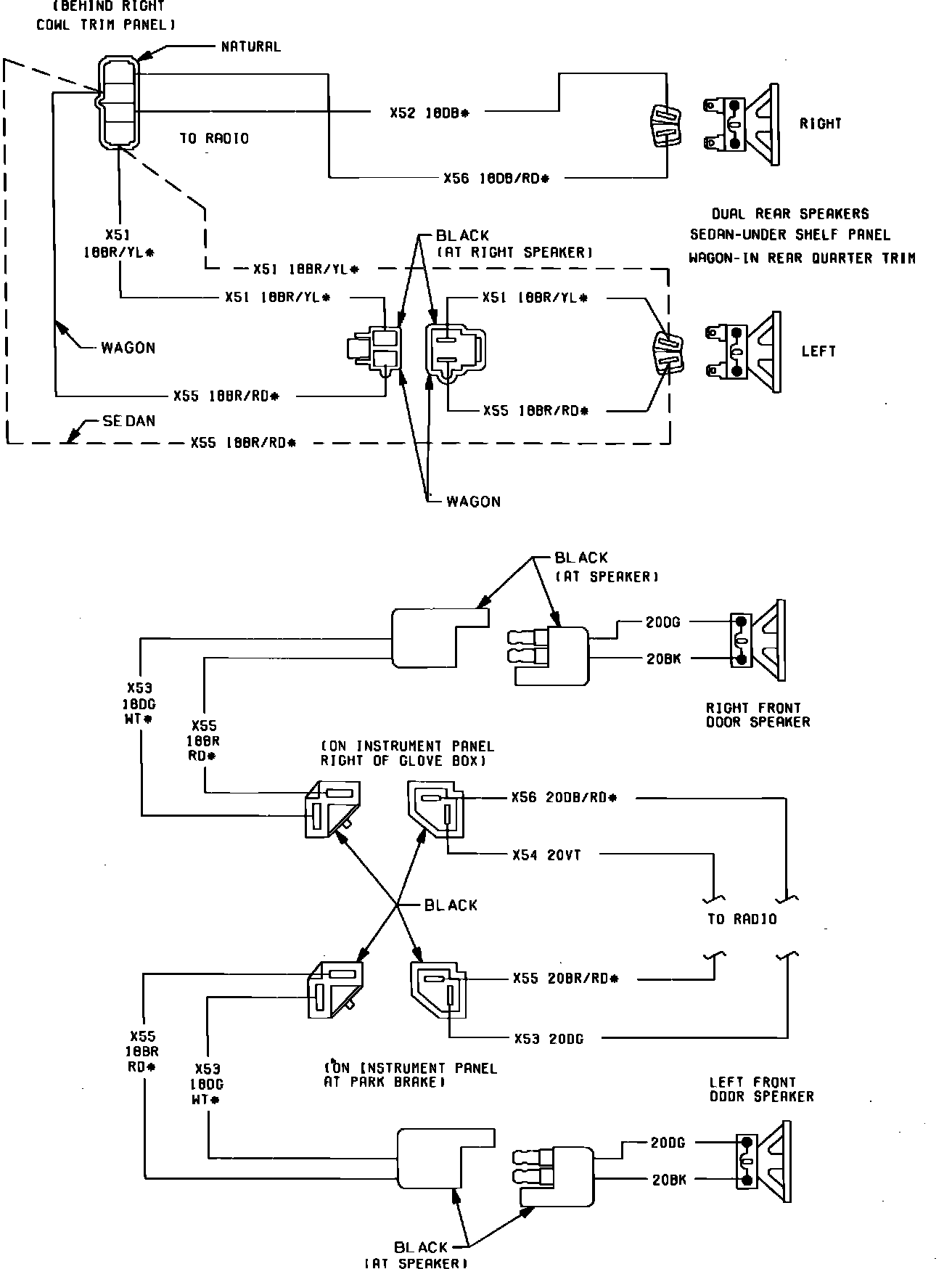

Fig. 109 Radio Rear Speaker Wiring Circuit. 1984 Exc. Convertible:
