Home >> Chrysler >> 1984 >> Lebaron Convertible L4-156 2.6L SOHC VIN G 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Radio Wiring Circuit >> AM Radio

AM Radio

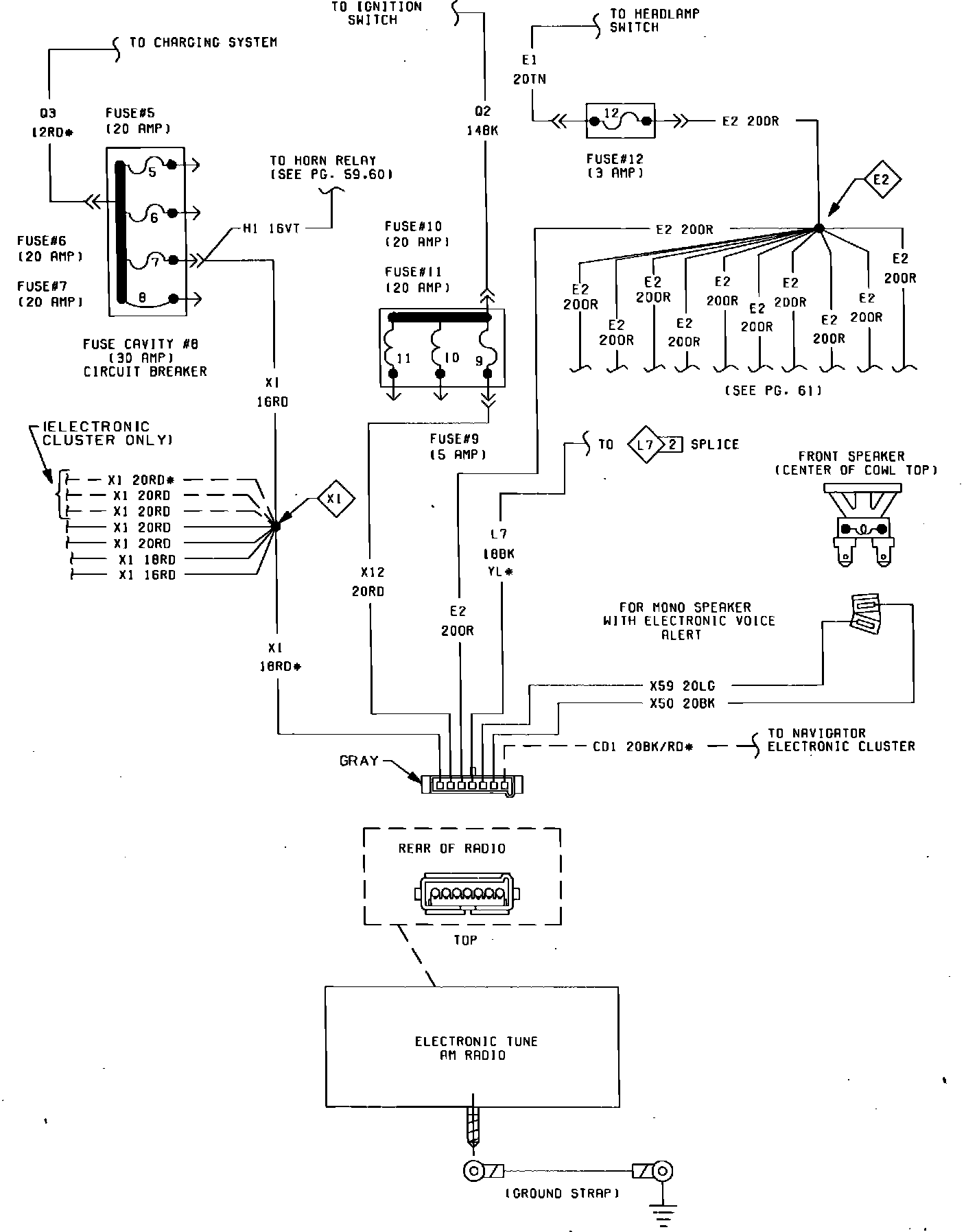

Fig. 112 Radio Wiring Circuit. 1984 Mono:
