Rear Lighting

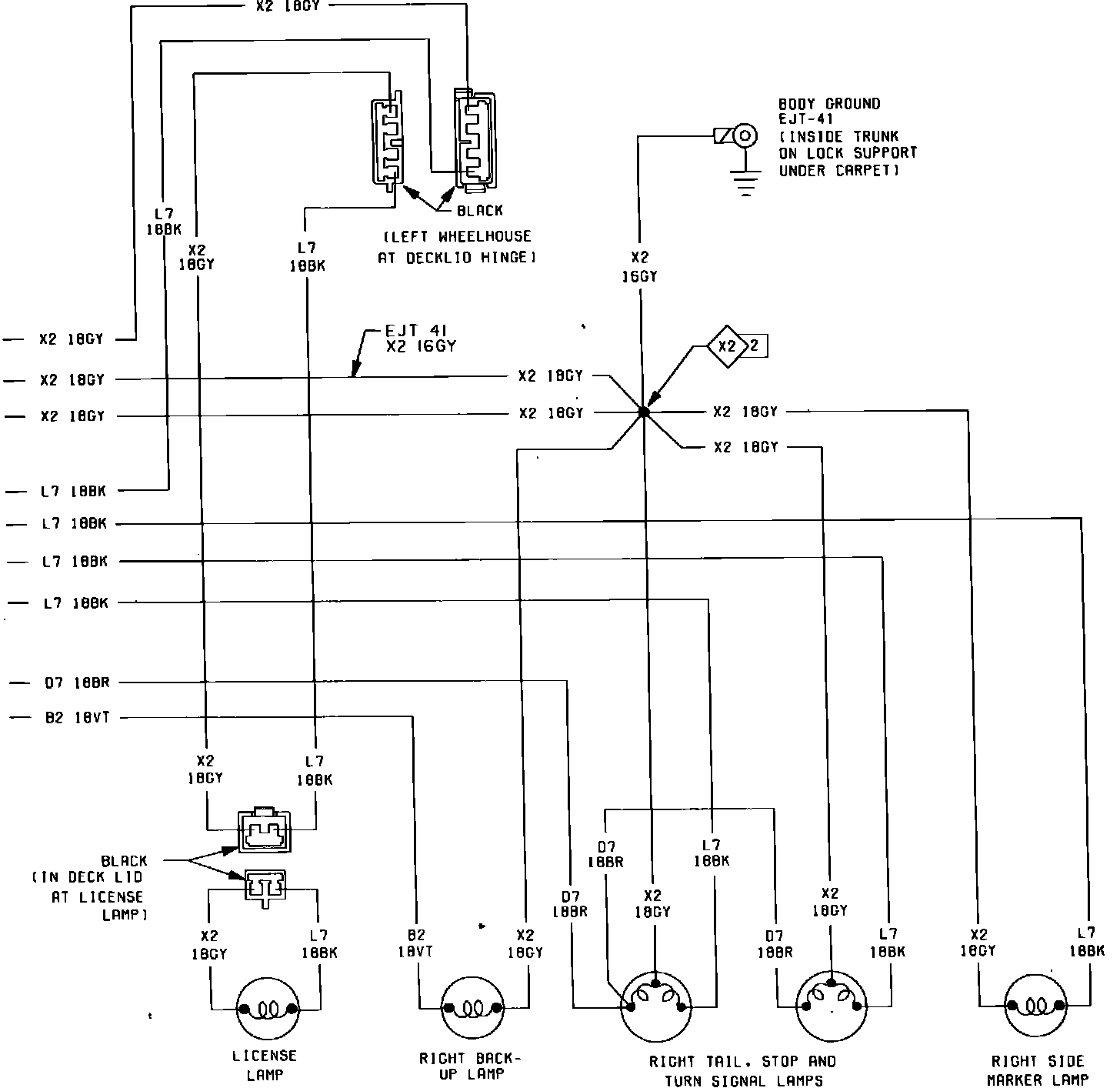

Fig. 119 Rear End Wiring Circuit (Part 1 of 2). 1984 Exc. E Class, New Yorker & Wagon:

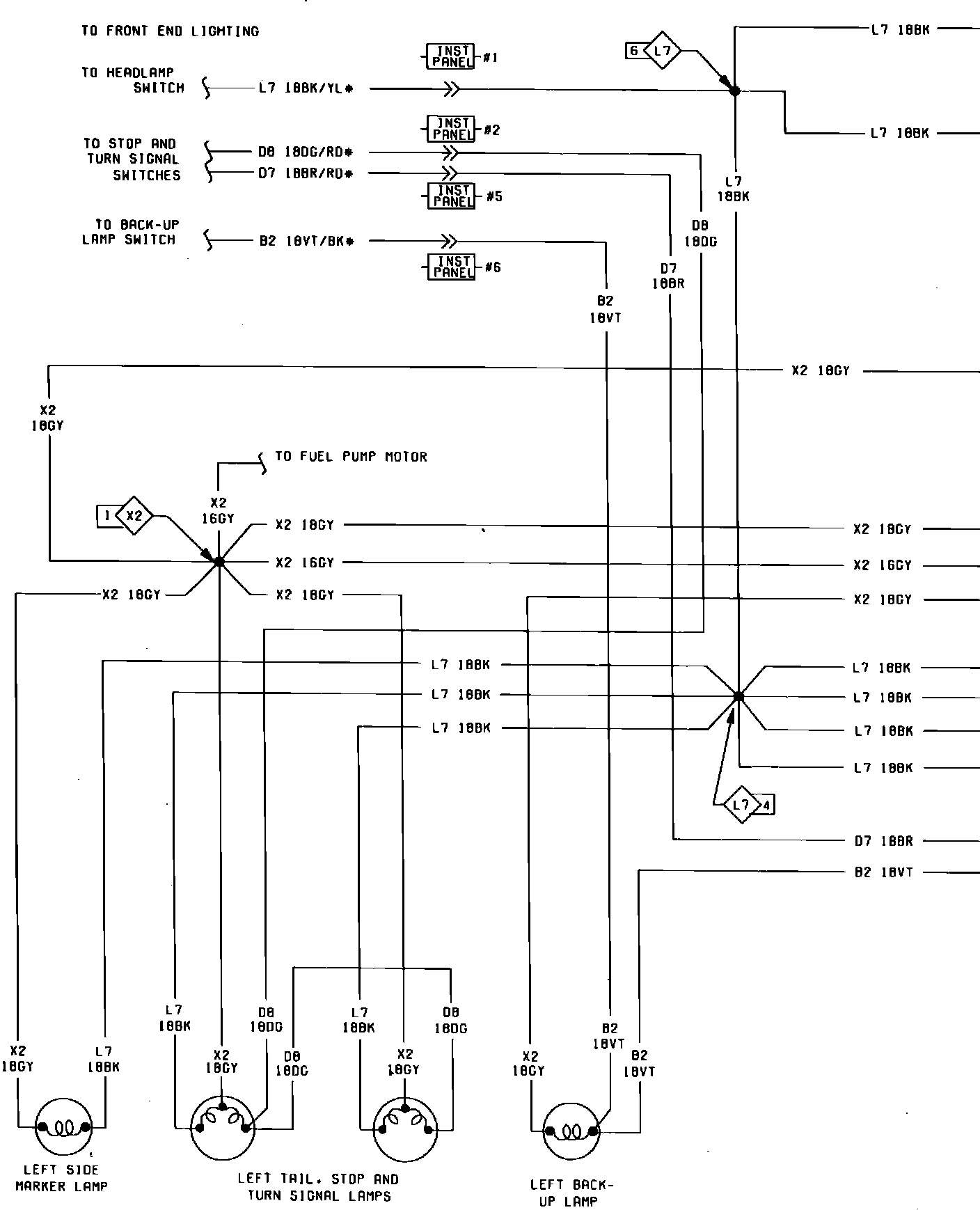

Fig. 119 Rear End Wiring Circuit (Part 2 of 2). 1984 Exc. E Class, New Yorker & Wagon:

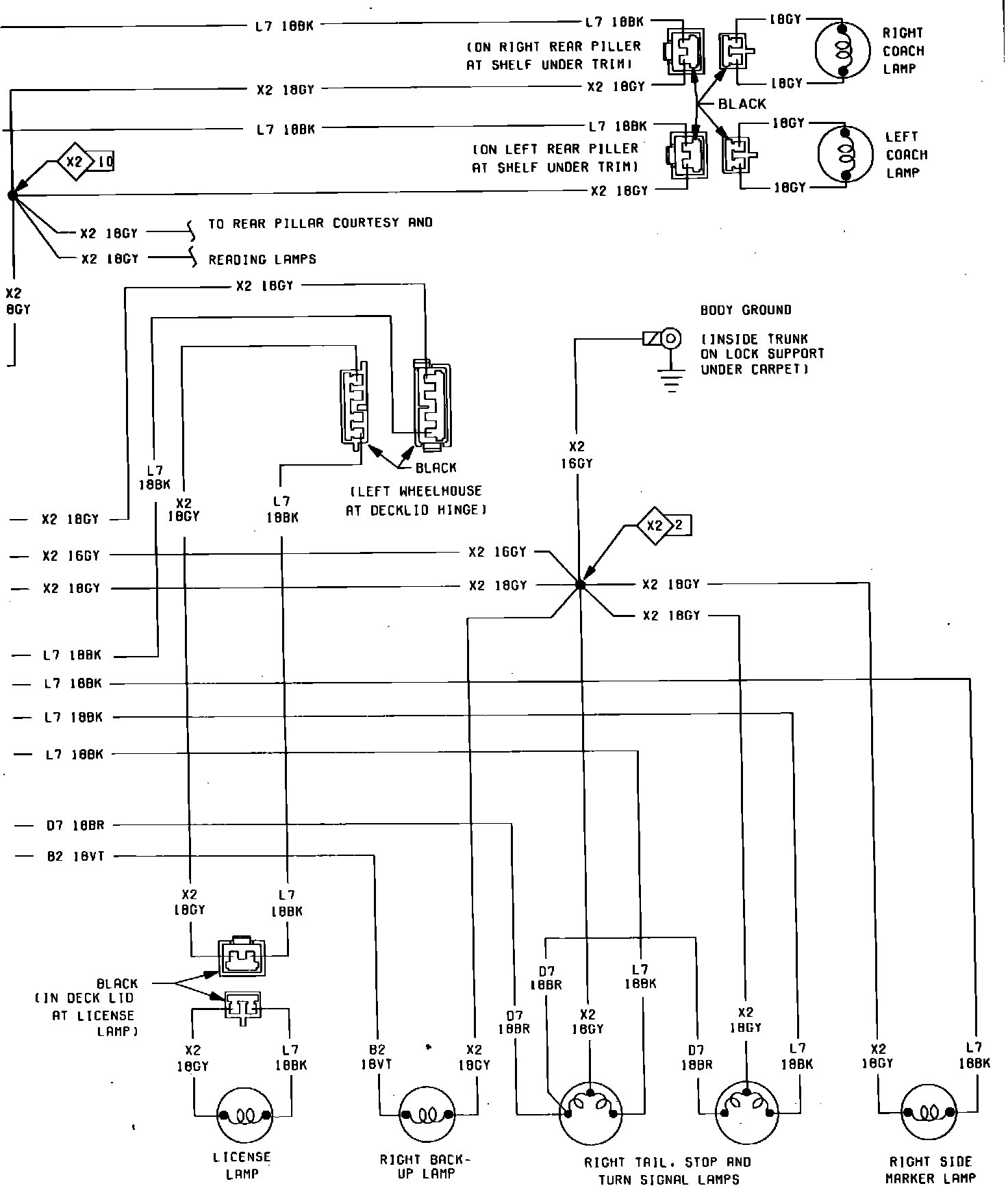

Fig. 121 Rear End Wiring Circuit (Part 1 of 2). 1984 E Class & New Yorker:

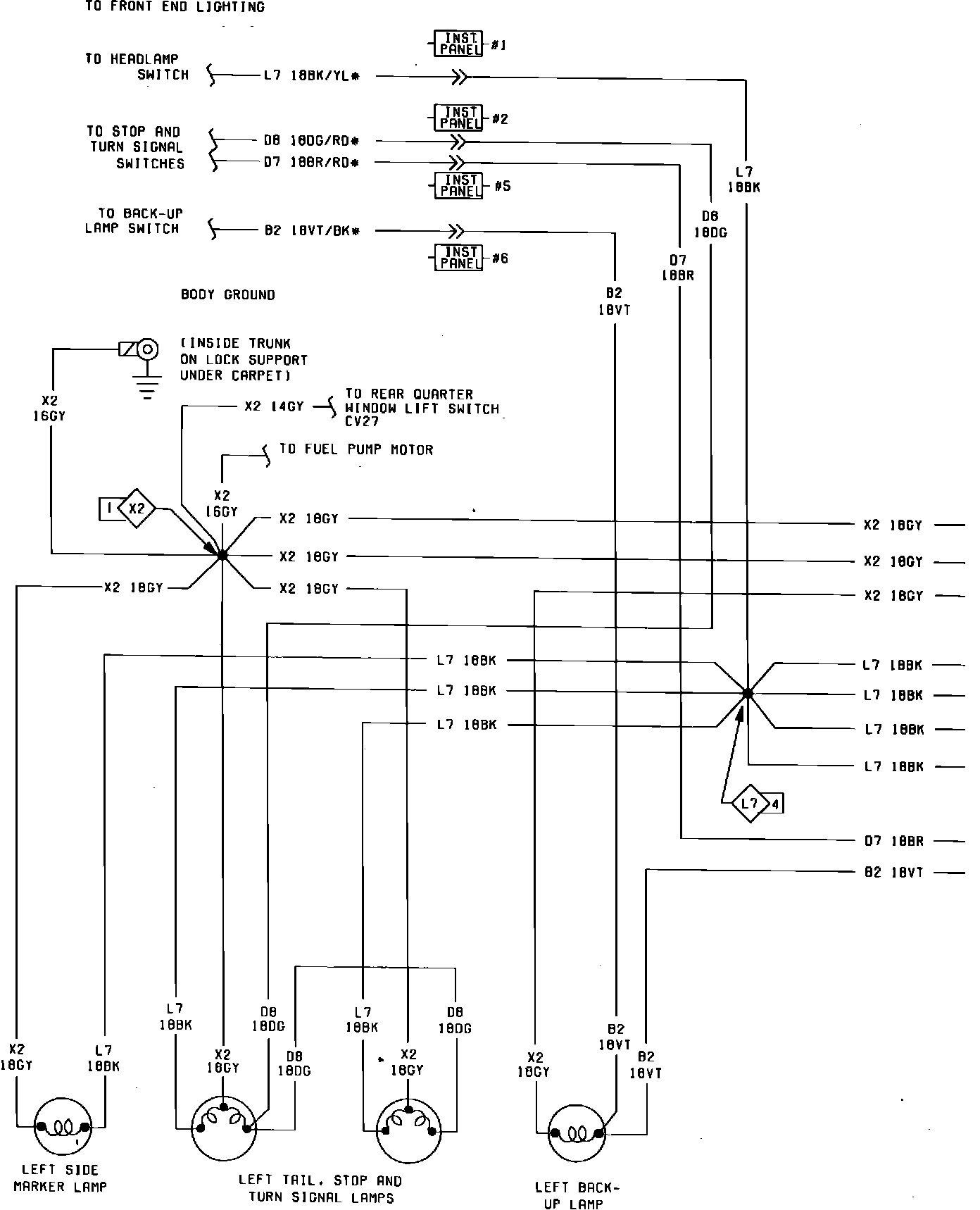

Fig. 121 Rear End Wiring Circuit (Part 2 of 2). 1984 E Class & New Yorker:
