Without Feedback Carburetor

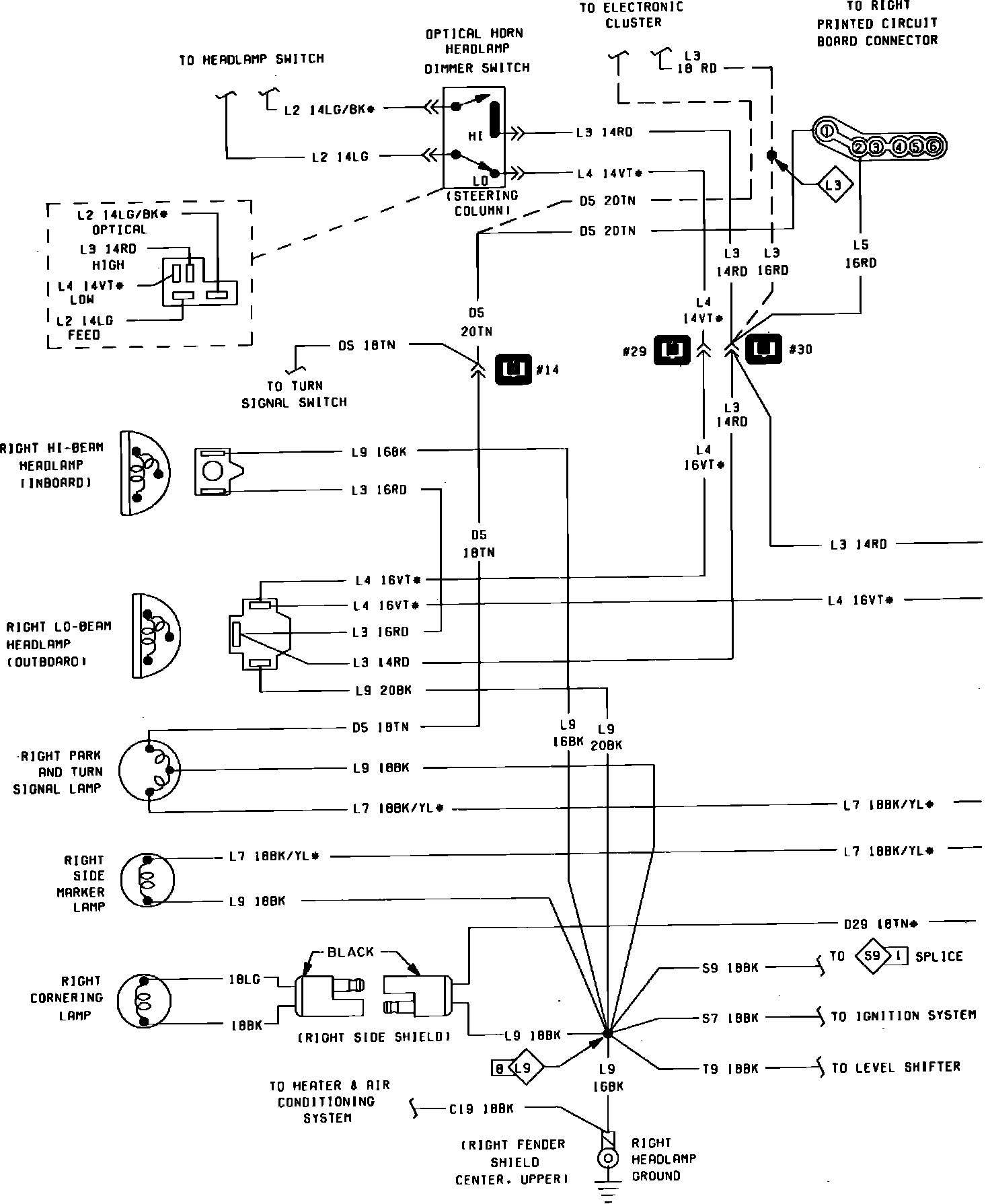

Fig. 60 Front End Wiring (Part 1 of 2). 1984 4-156/2.6L Exc. Feedback Carburetor:

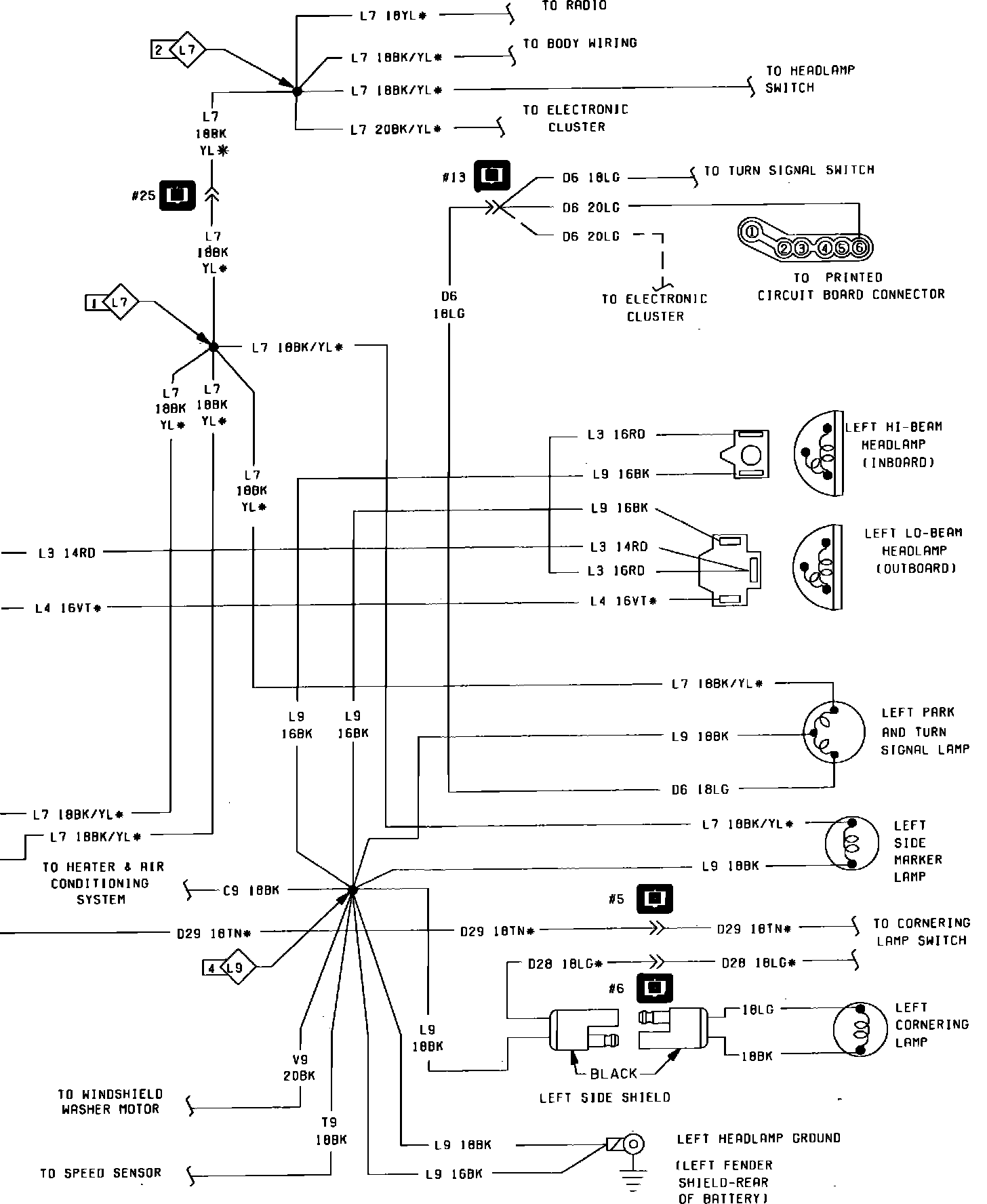

Fig. 60 Front End Wiring (Part 2 of 2). 1984 4-156/2.6L Exc. Feedback Carburetor:
