With Feedback Carburetor

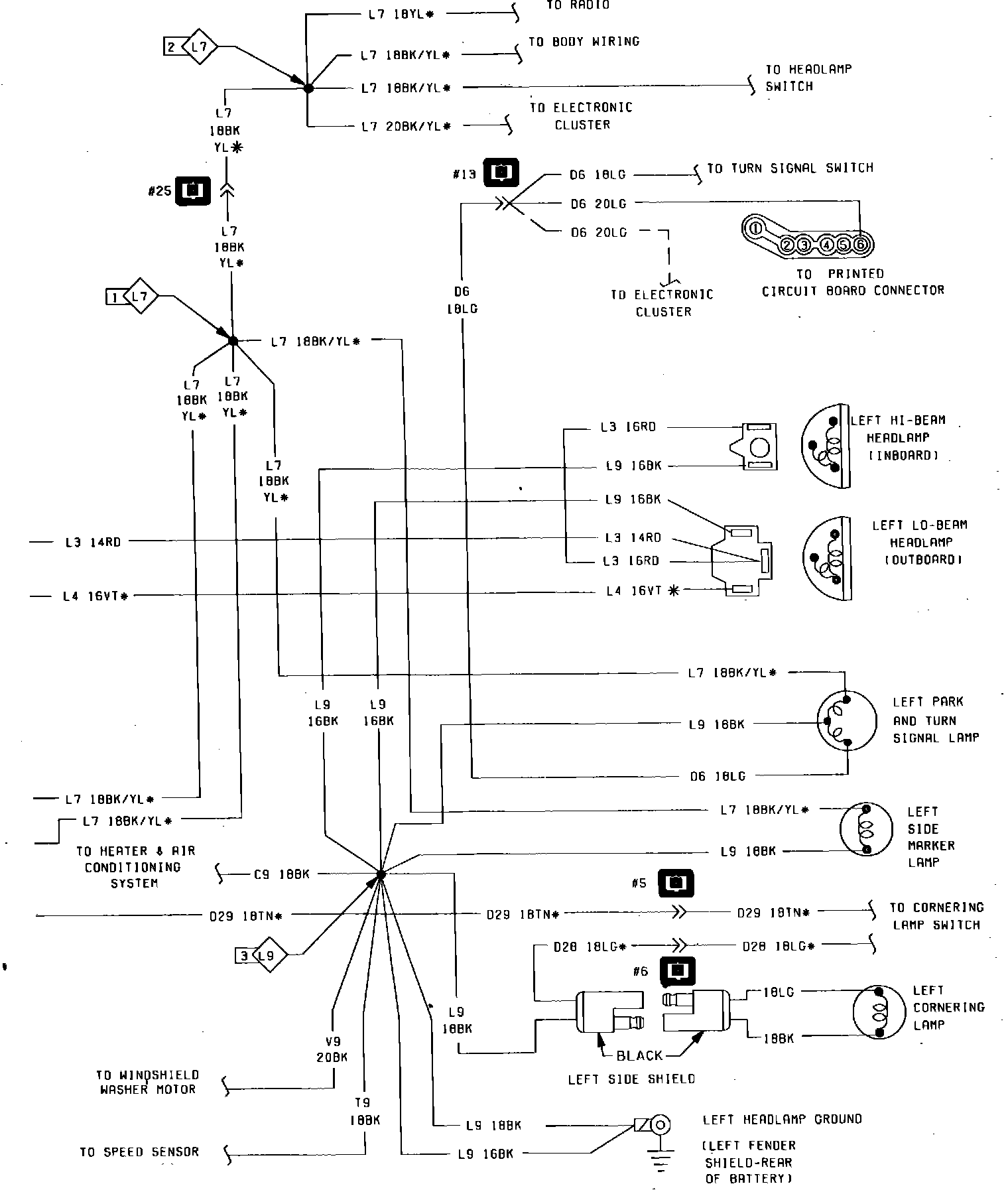

Fig. 61 Front End Wiring (Part 1 of 2). 1984 4-156/2.6L W/Feedback Carburetor:

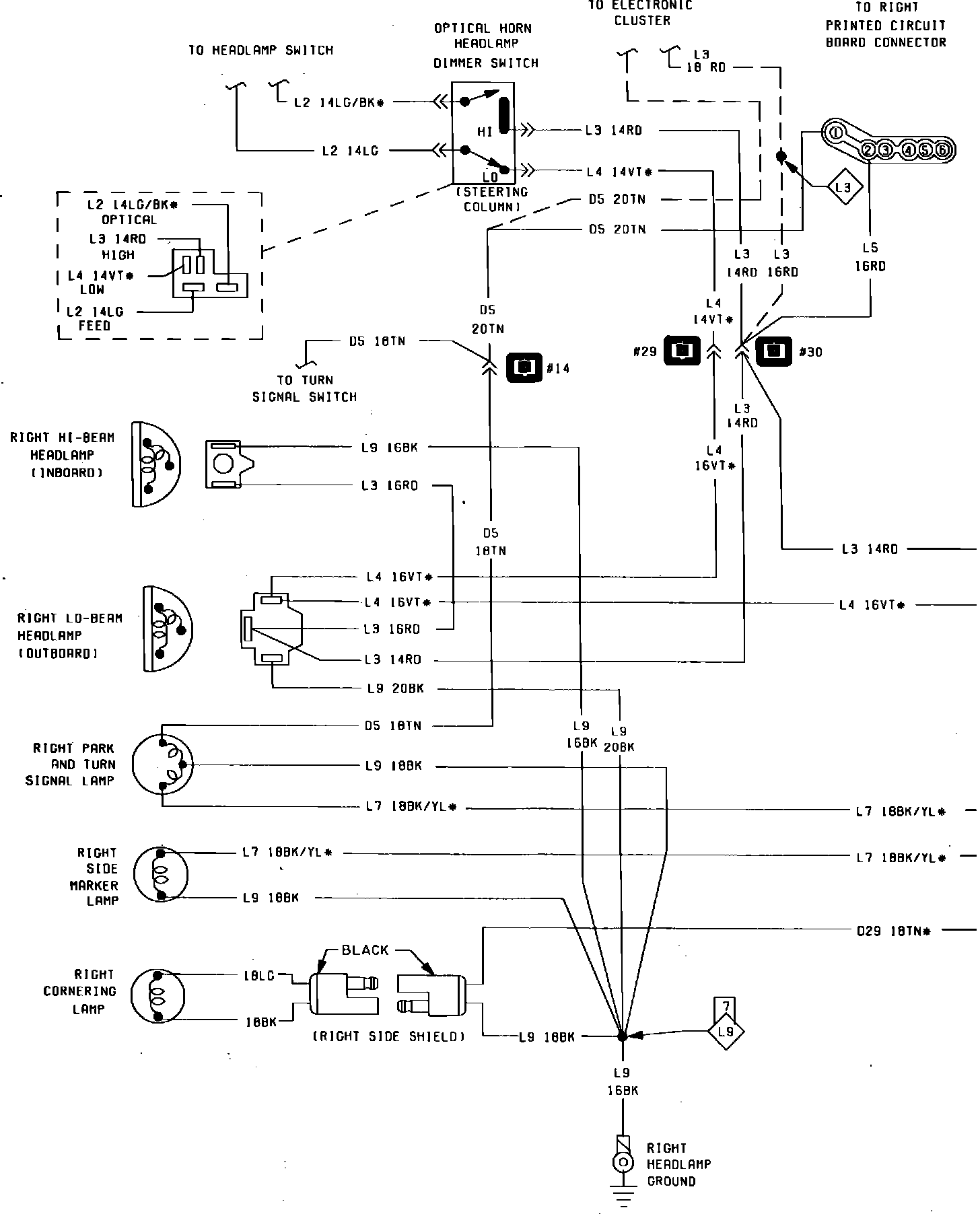

Fig. 61 Front End Wiring (Part 2 of 2). 1984 4-156/2.6L W/Feedback Carburetor:
