Home >> Chrysler >> 1984 >> Lebaron Convertible L4-156 2.6L SOHC VIN G 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Fuel Distance/Mileage Module >> Electronic Voice Alert Wiring Circuit >> Part 1 of 2

Part 1 of 2

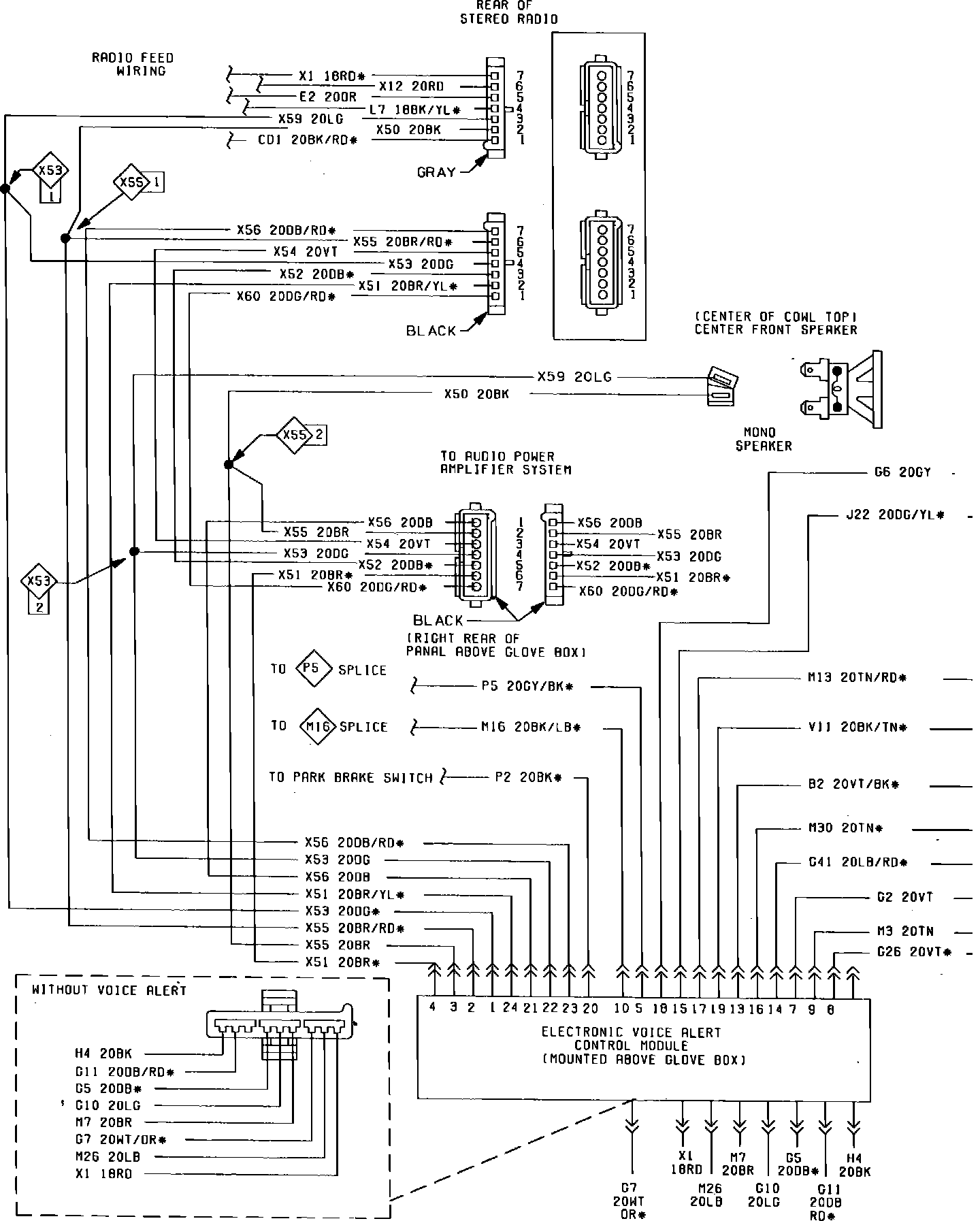

Fig. 83 Voice Alert System Wiring Circuit (Part 1 of 2). 1984 W/Standard Cluster:
