ESA Fuel Flow & Speed Sensor System Wiring Circuit

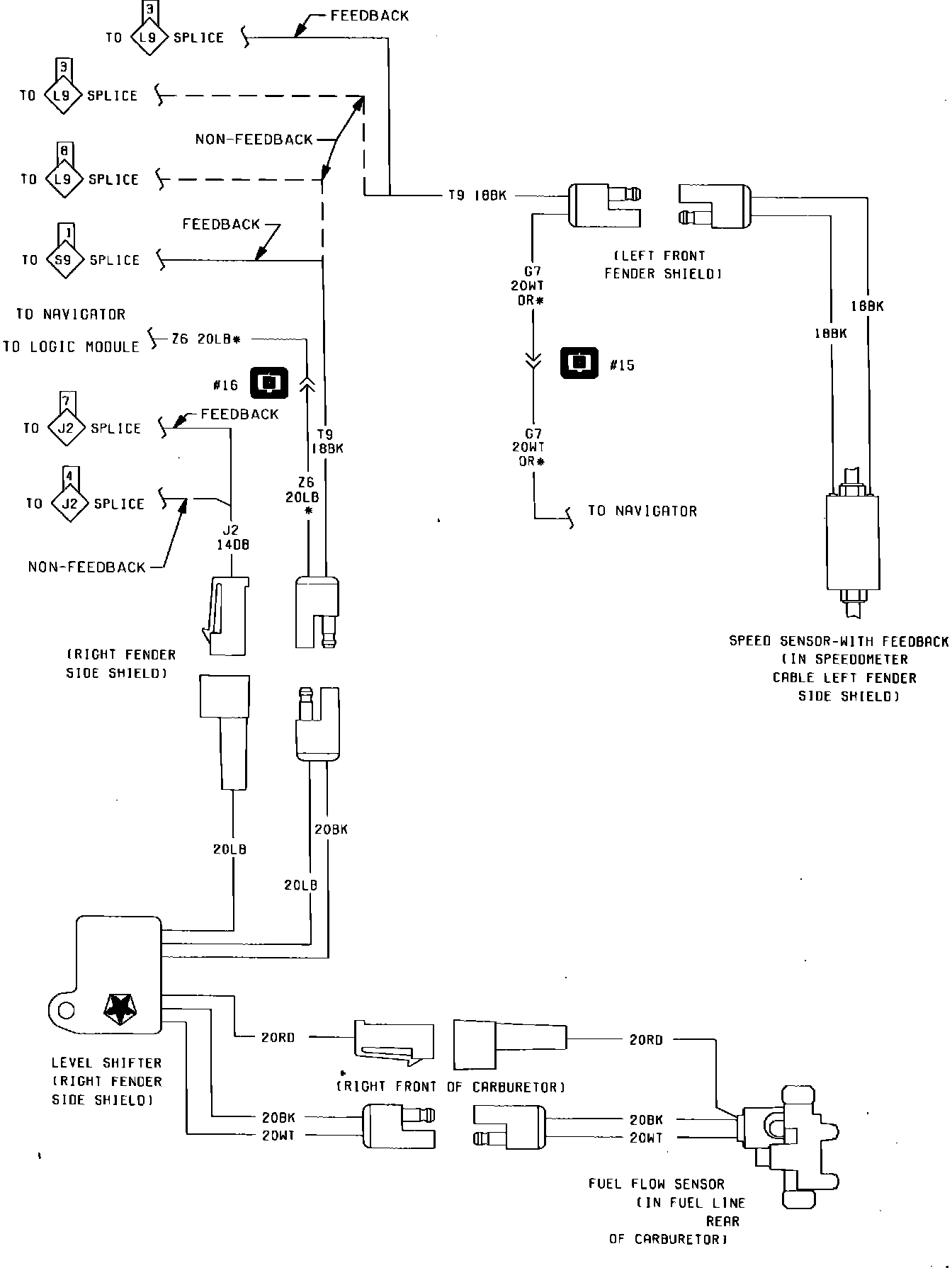

Fig. 56 ESA Fuel Flow & Speed Sensor System Wiring Circuit. 1984 4-156/2.6L:
