Lebaron Convertible L4-156 2.6L SOHC VIN G 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
A/C And Heater Controls
A/C And Heater Controls

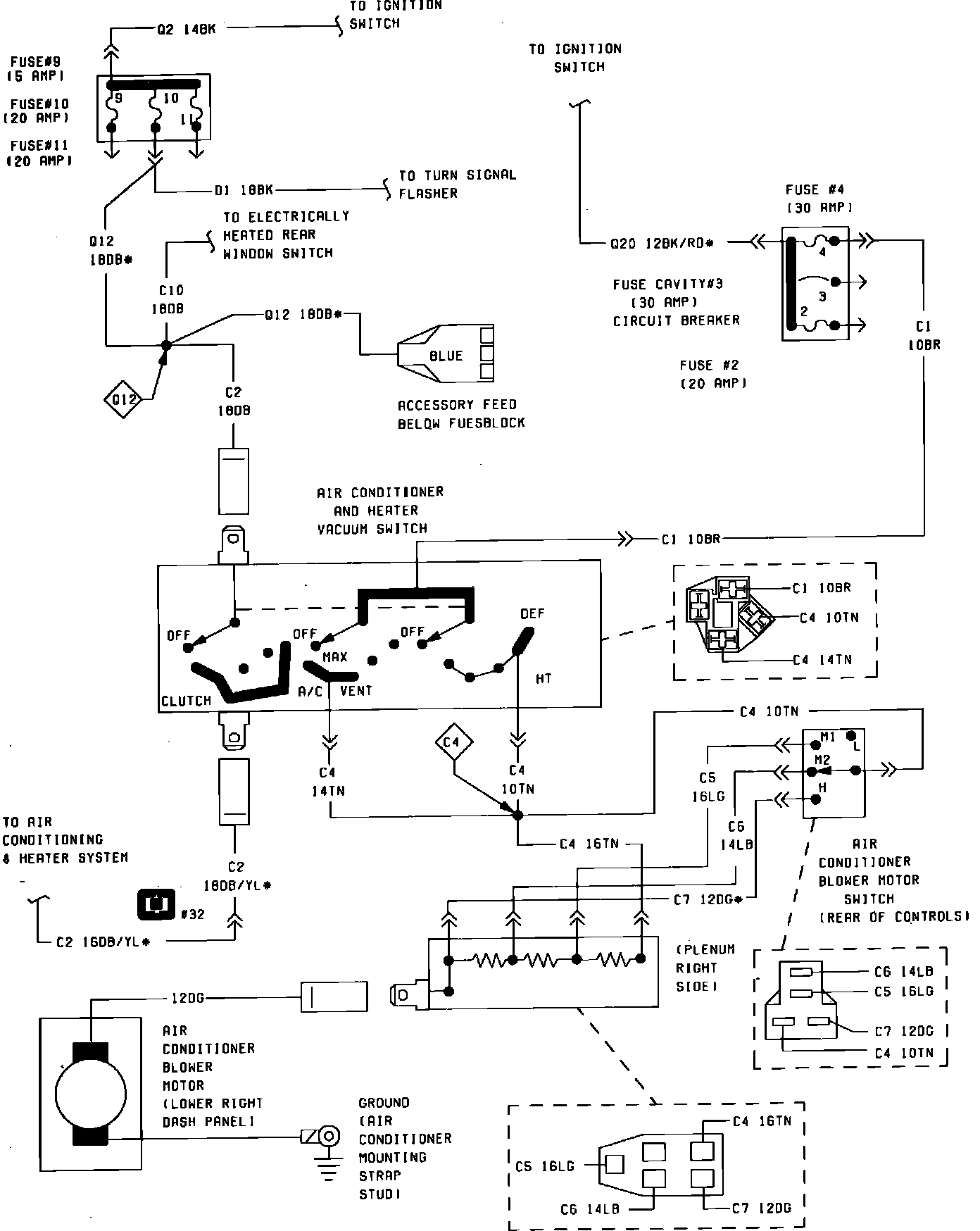

Air Conditioning And Heater System Part 1 Of 3:
