No Start/Ignition Test
No Start/Ignition Test

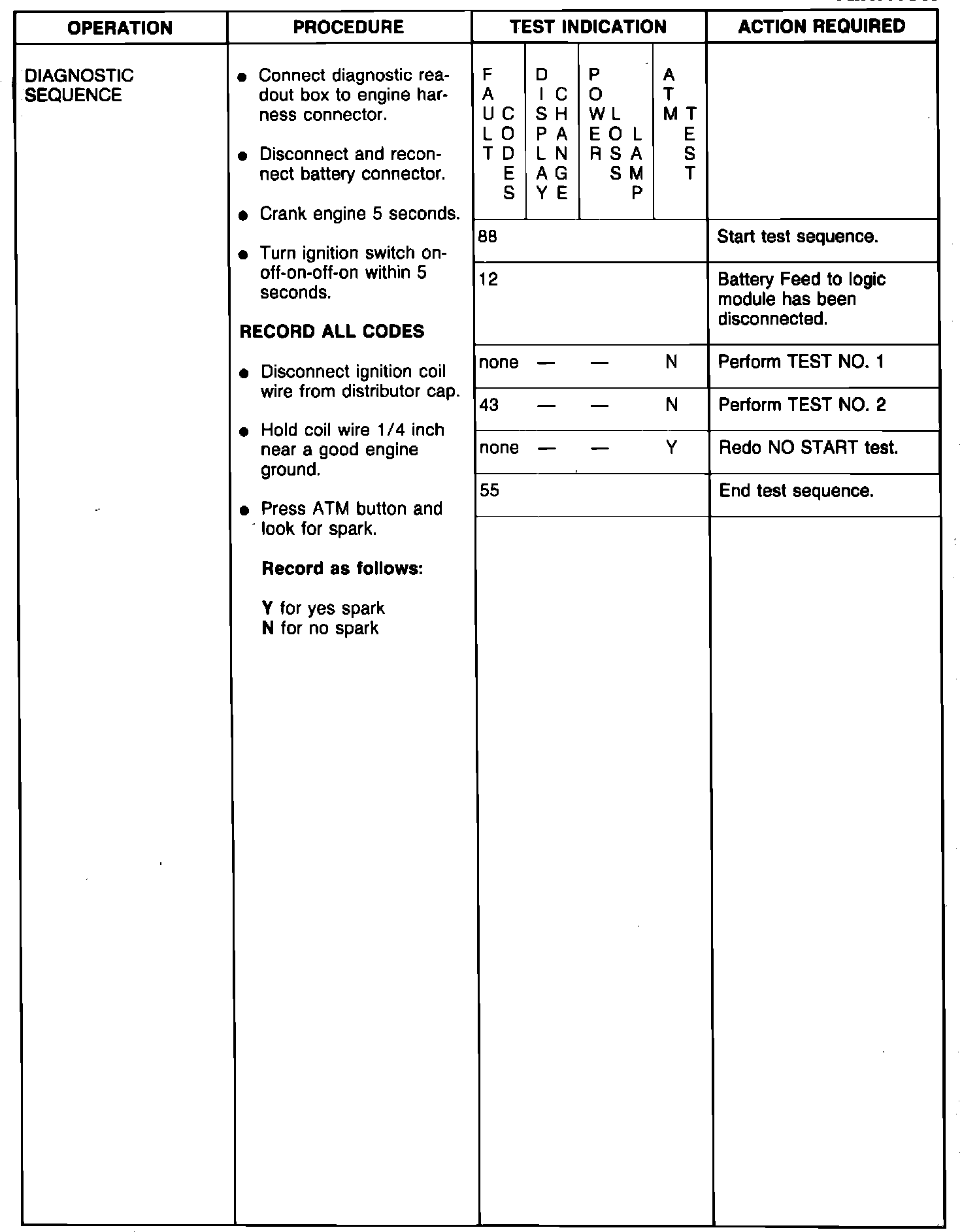

Diagnostic Sequence:

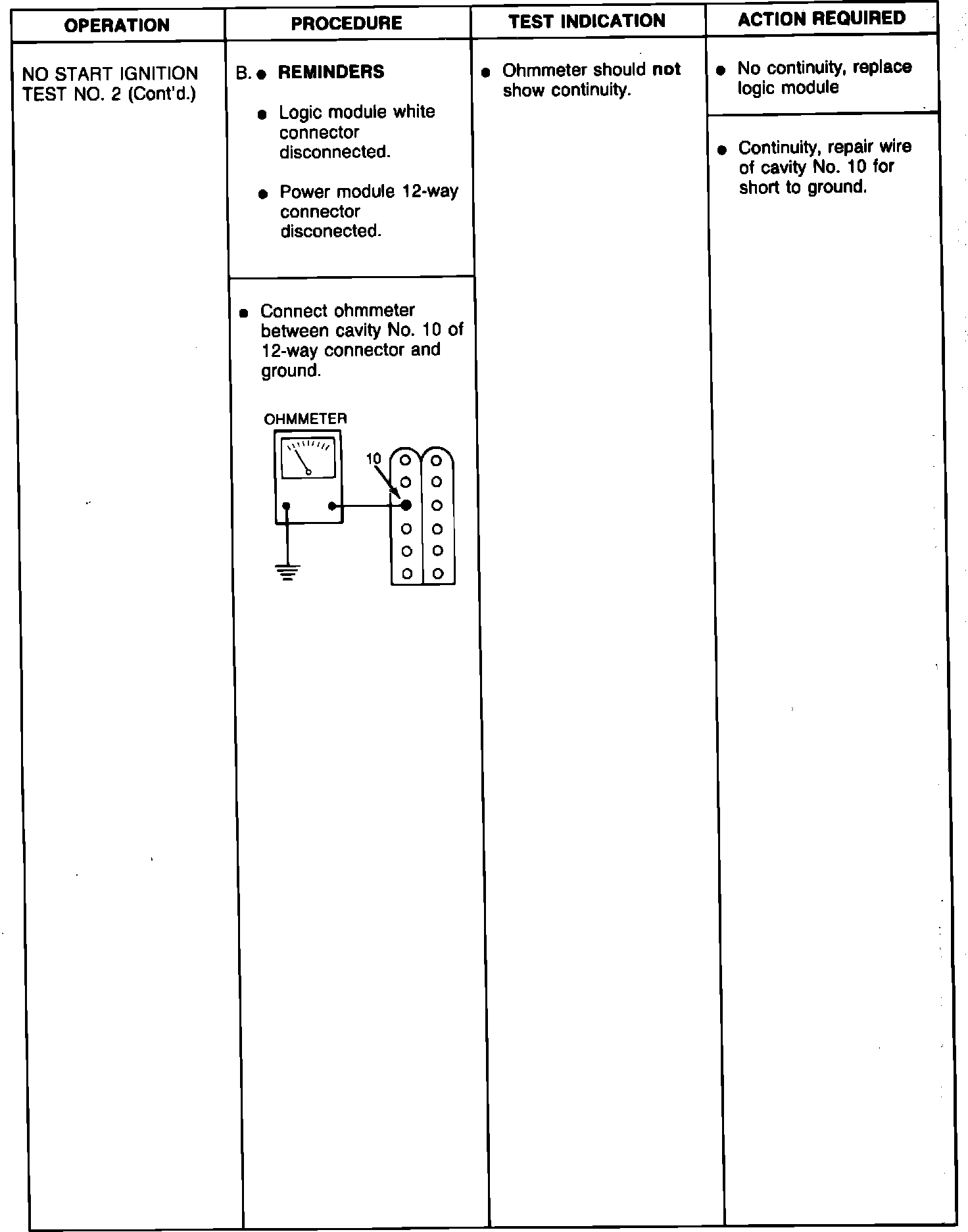

Test 2-Step B:
Test 2-Step A:
Test 1-Step C & D:

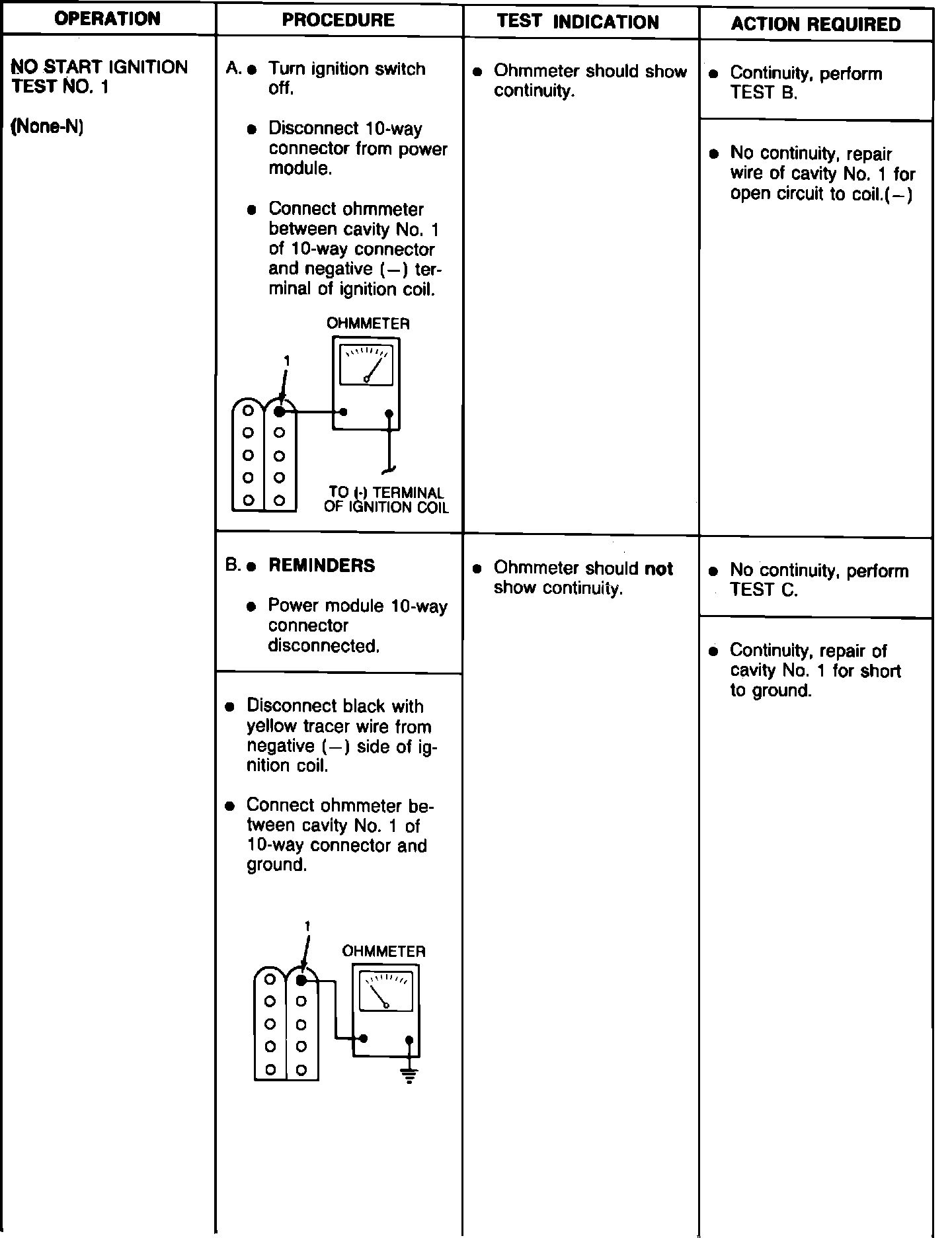

Test 1-Step A & B:
