Lebaron Convertible L4-135 2.2L SOHC VIN D TBI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
With Single Point Fuel Injection (SPI)
>>
No-Start Testing
>>

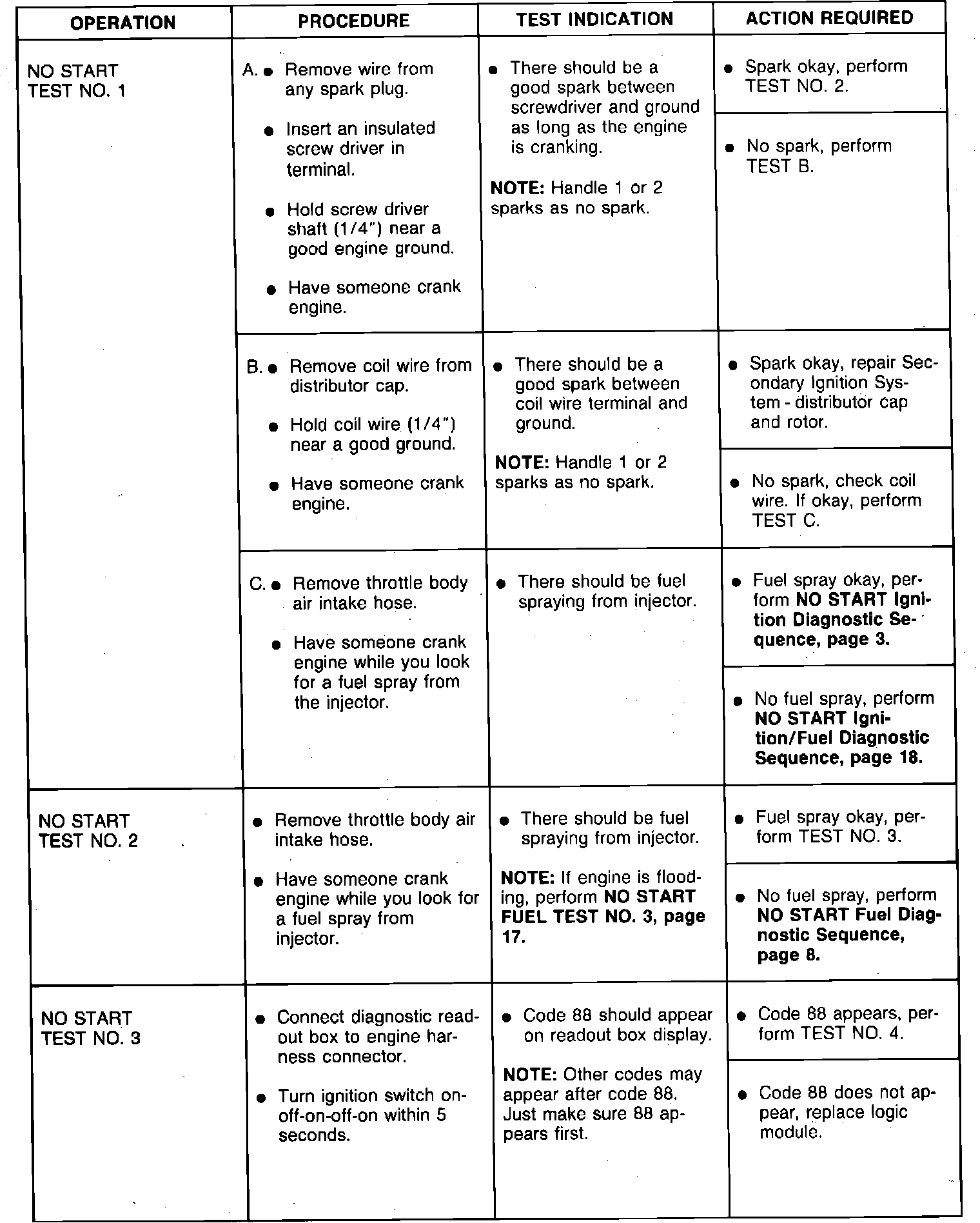

No Start Tests
>>
1, 2 & 3
1, 2 & 3
Test 1, 2 & 3:
