No Start Ignition/Fuel Test

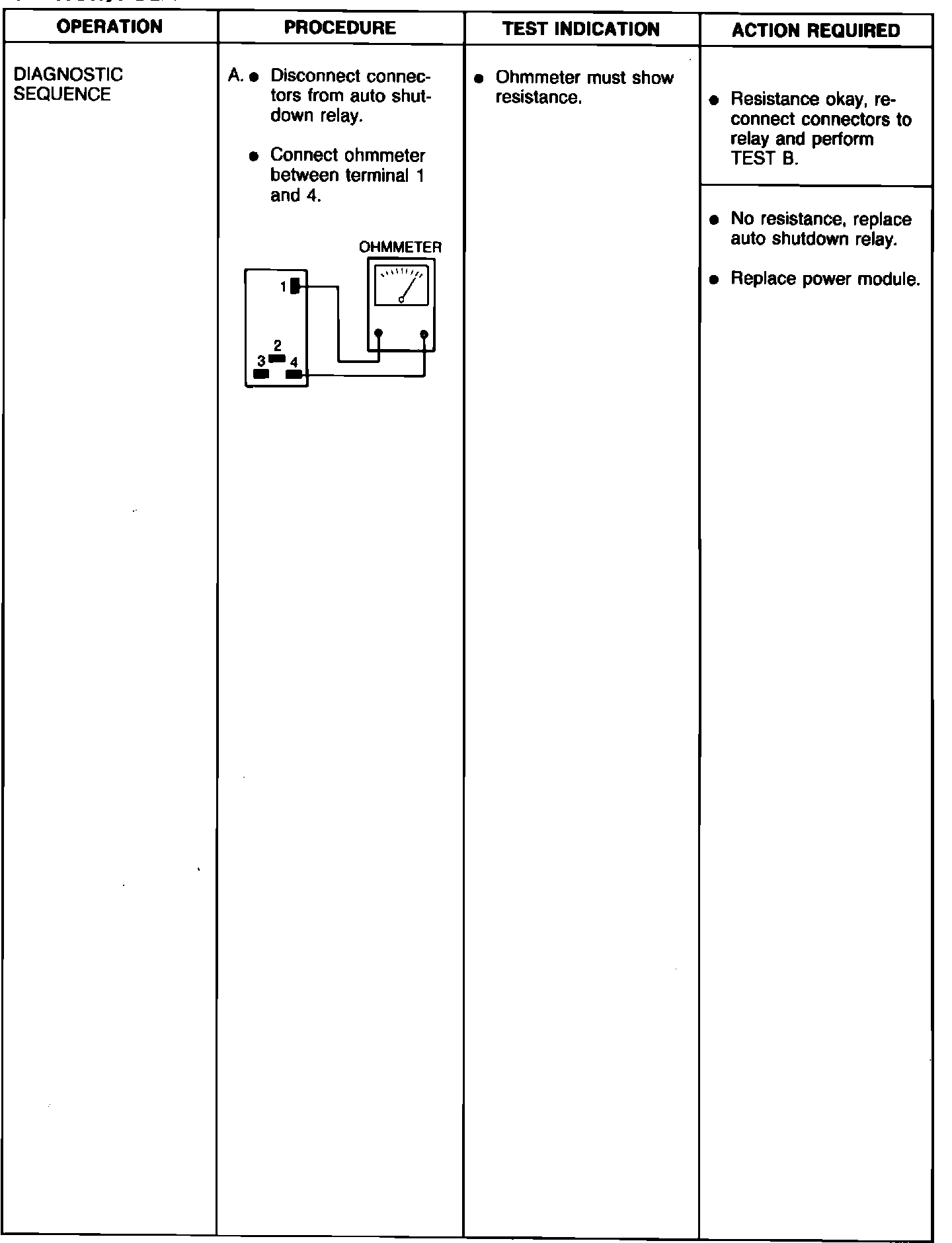

Diagnostic Sequence Step A:

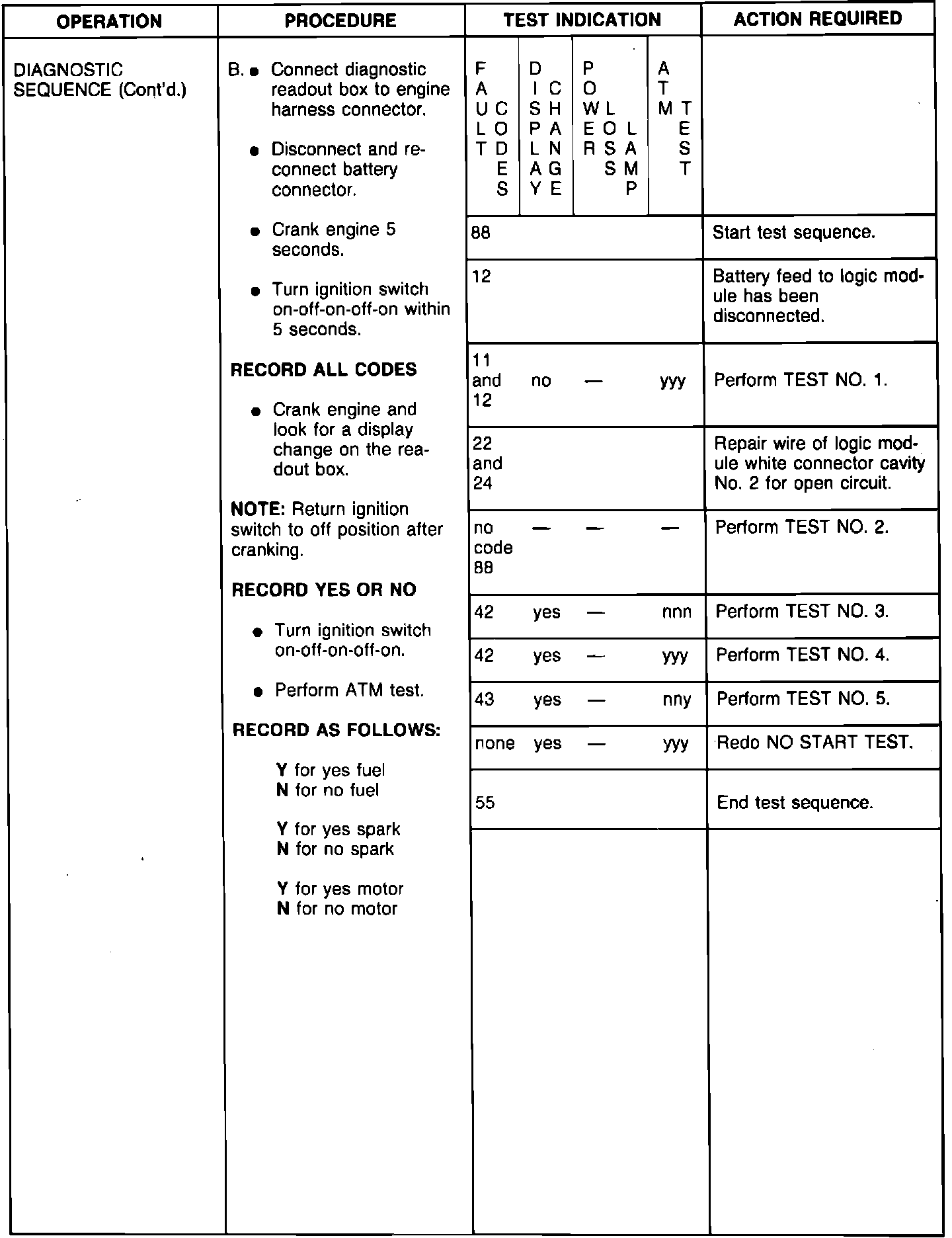

Diagnostic Sequence Step B:

Test 1-Step A:

Test 1-Step B & C:

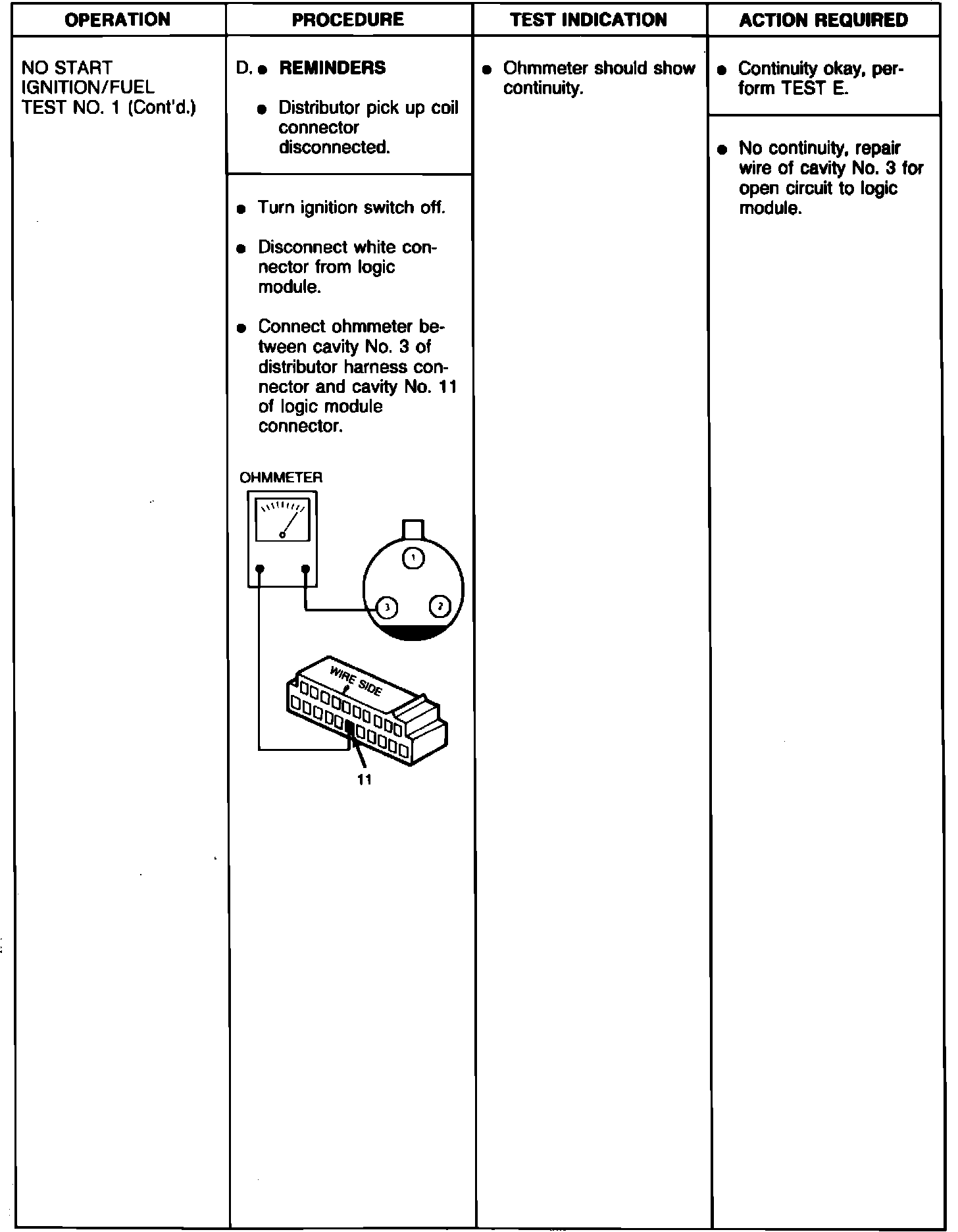

Test 1-Step D:

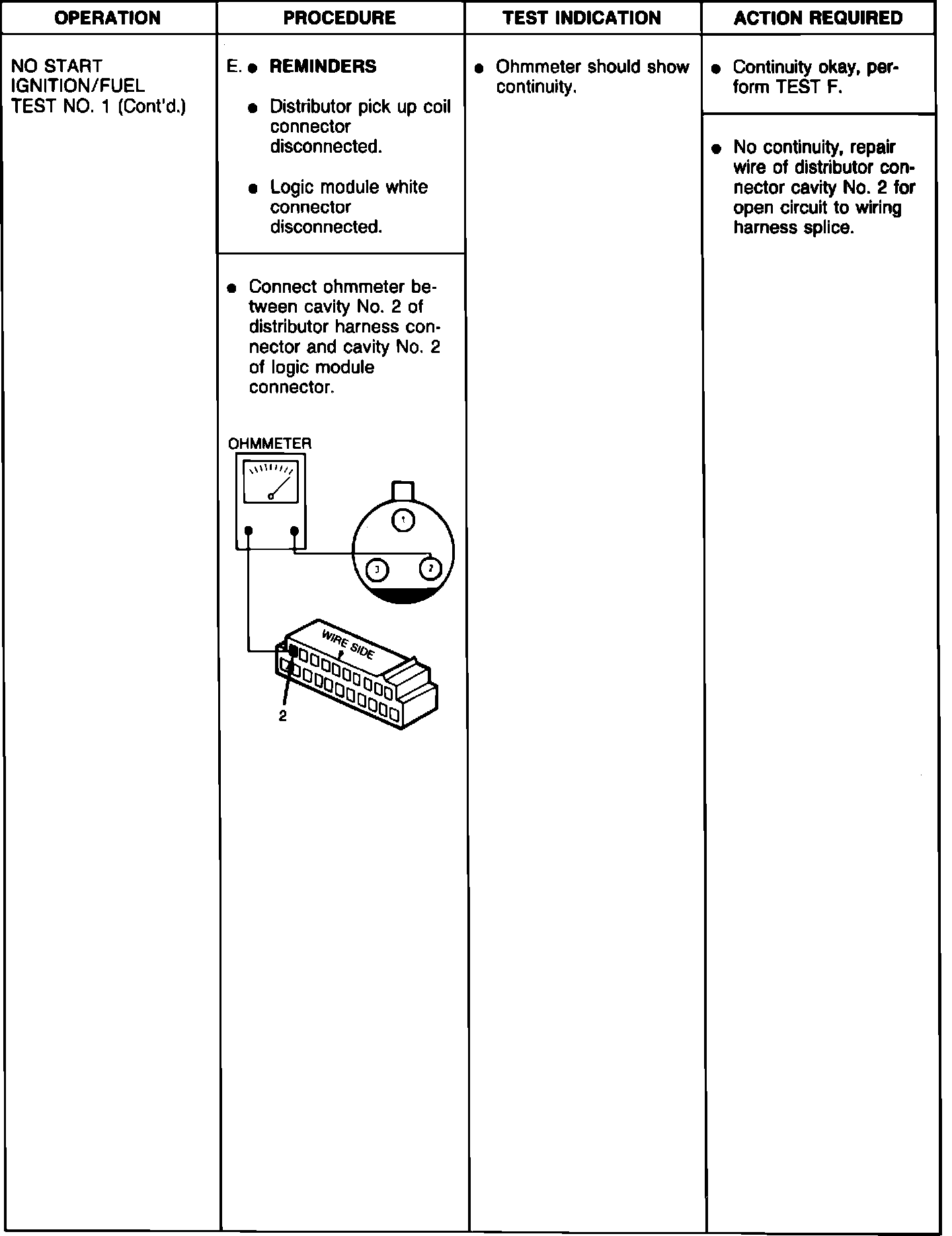

Test 1-Step E:

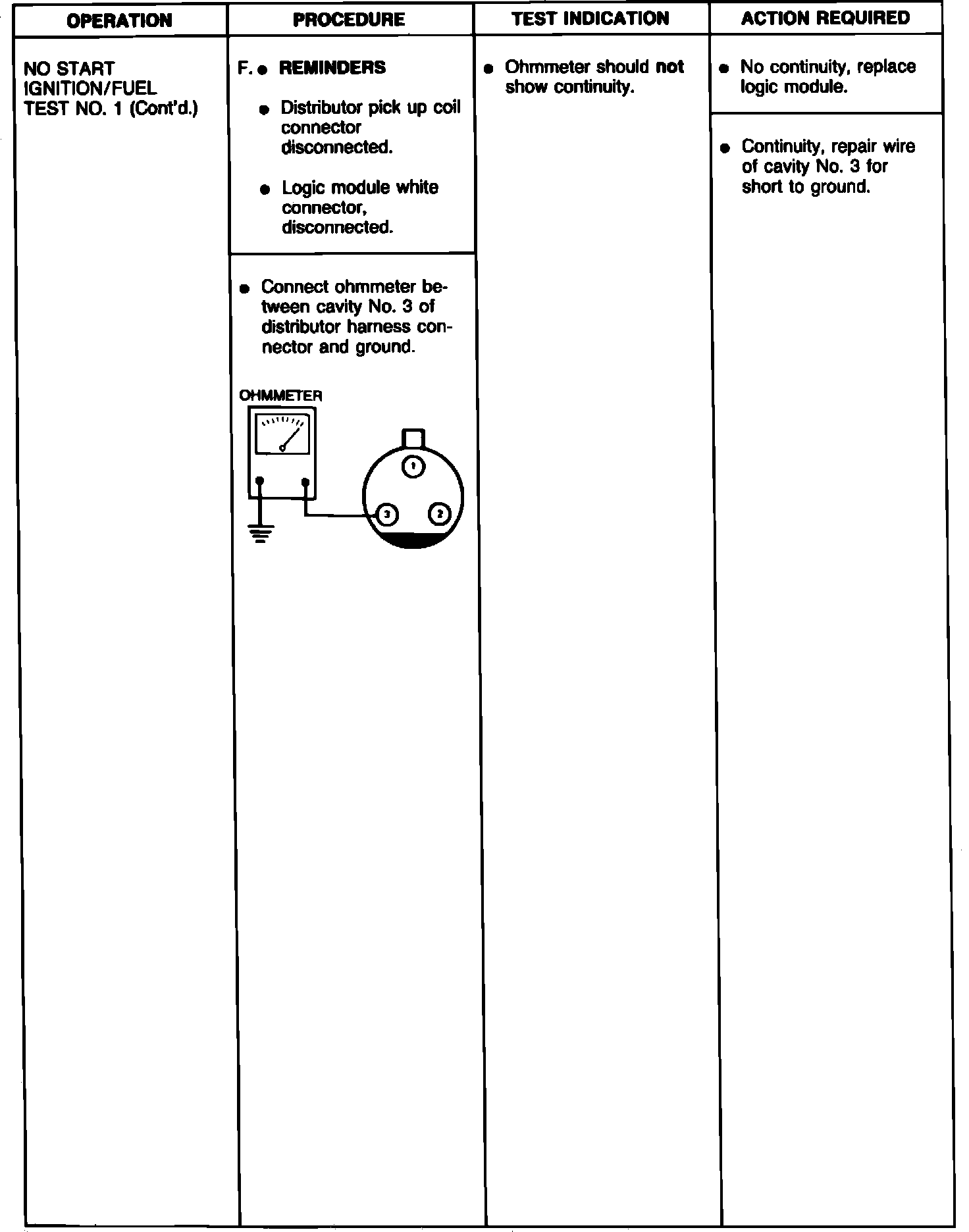

Test 1-Step F:

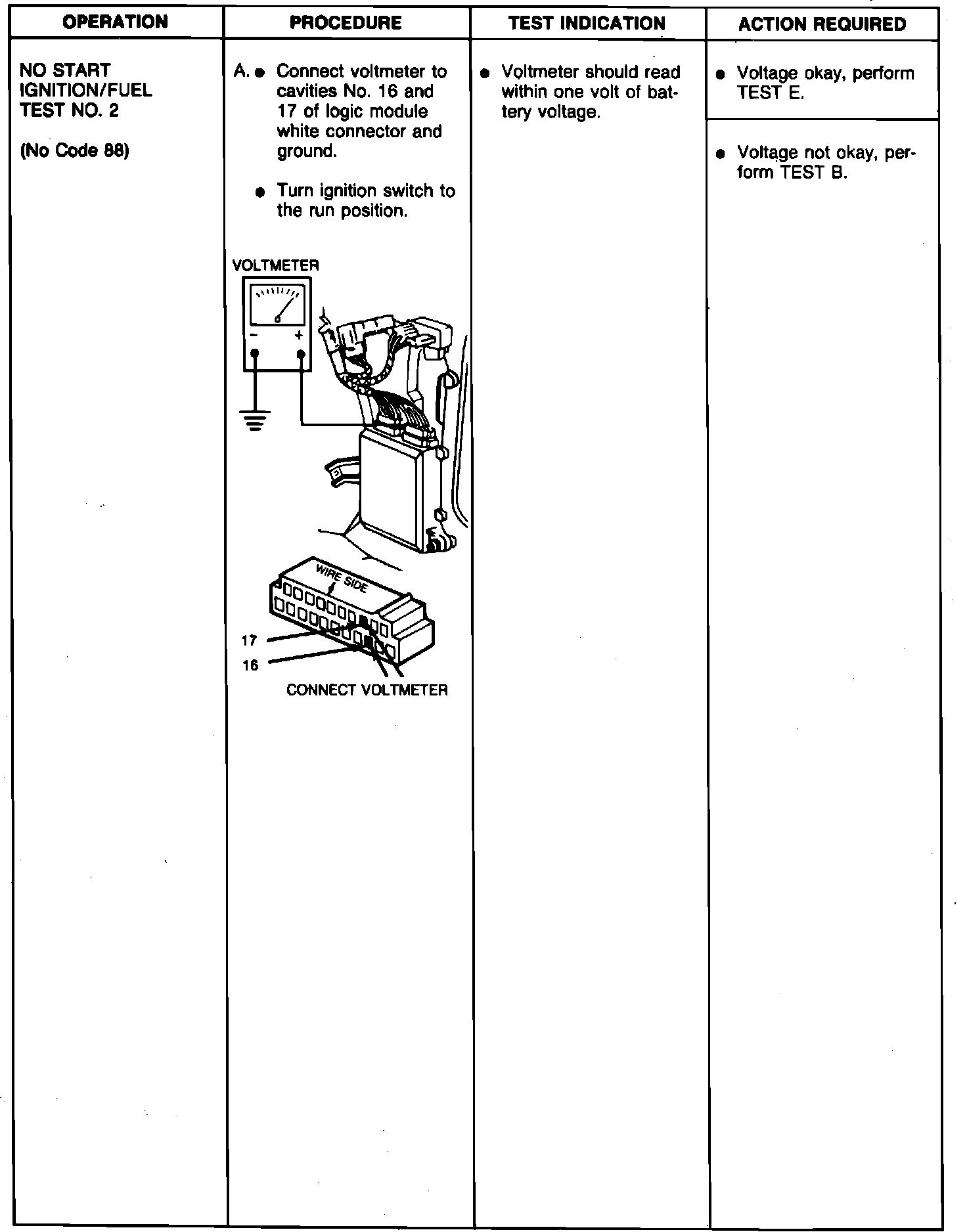

Test 2-Step A:

Test 2-Step B:

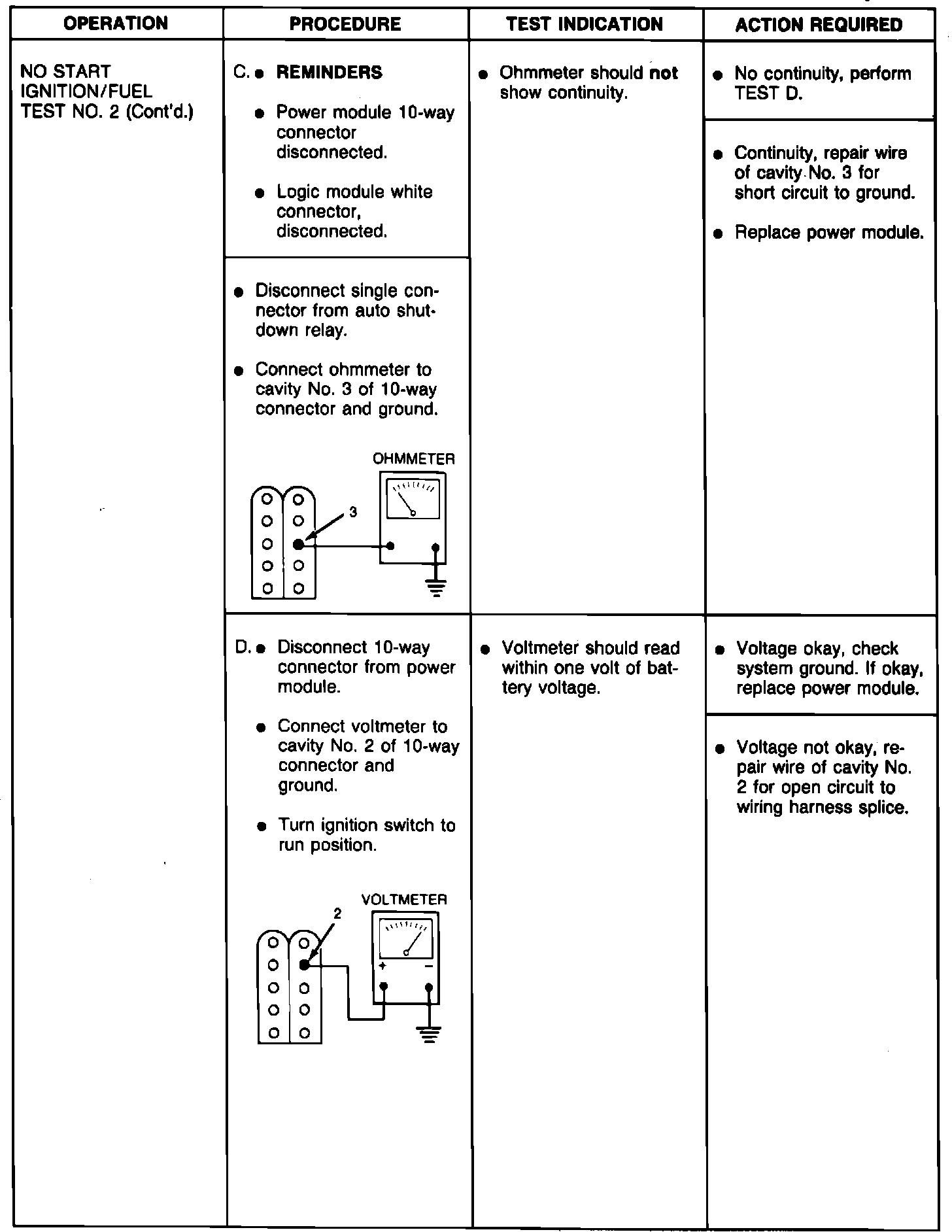

Test 2-Step C & D:

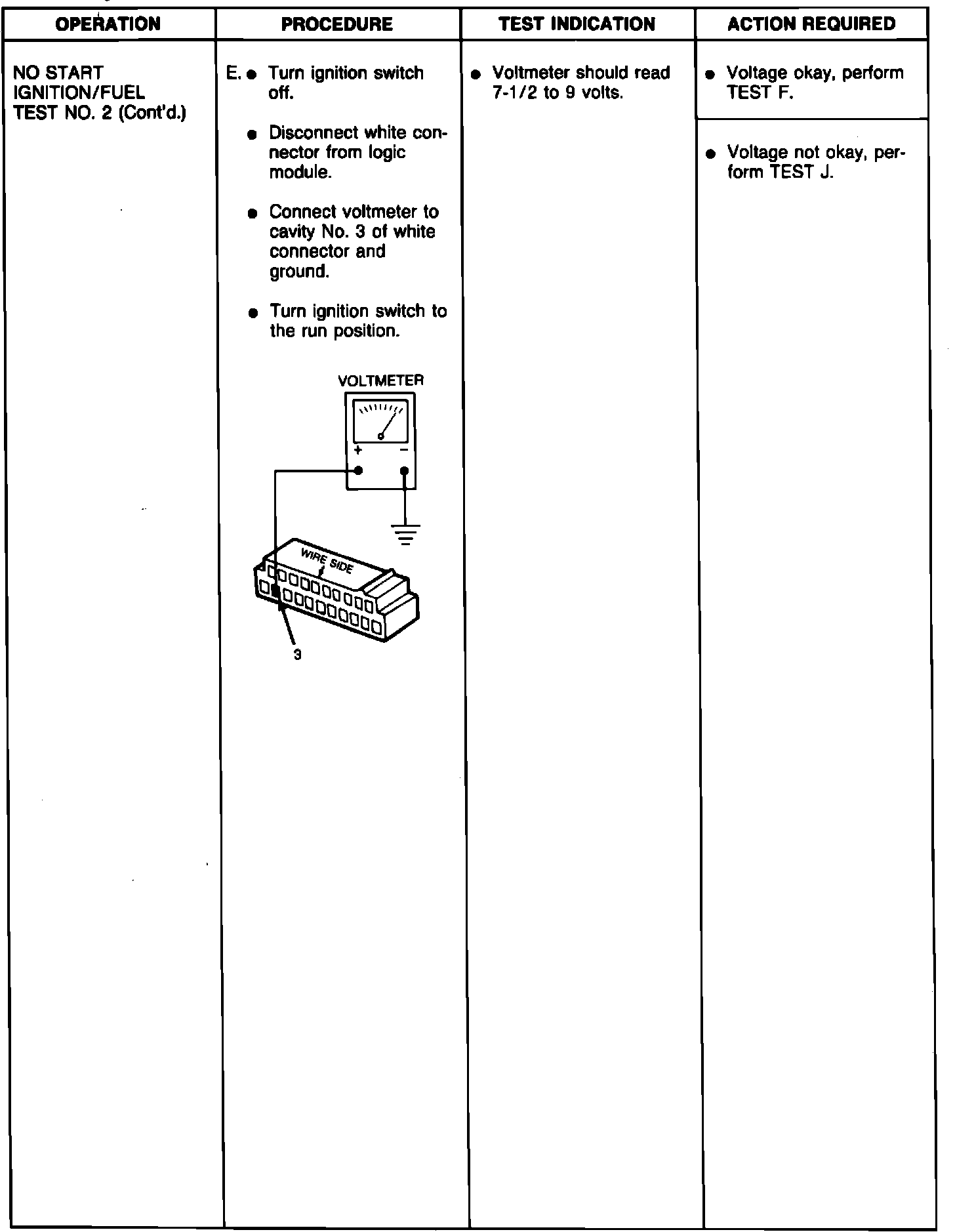

Test 2-Step E:

Test 2-Step F:

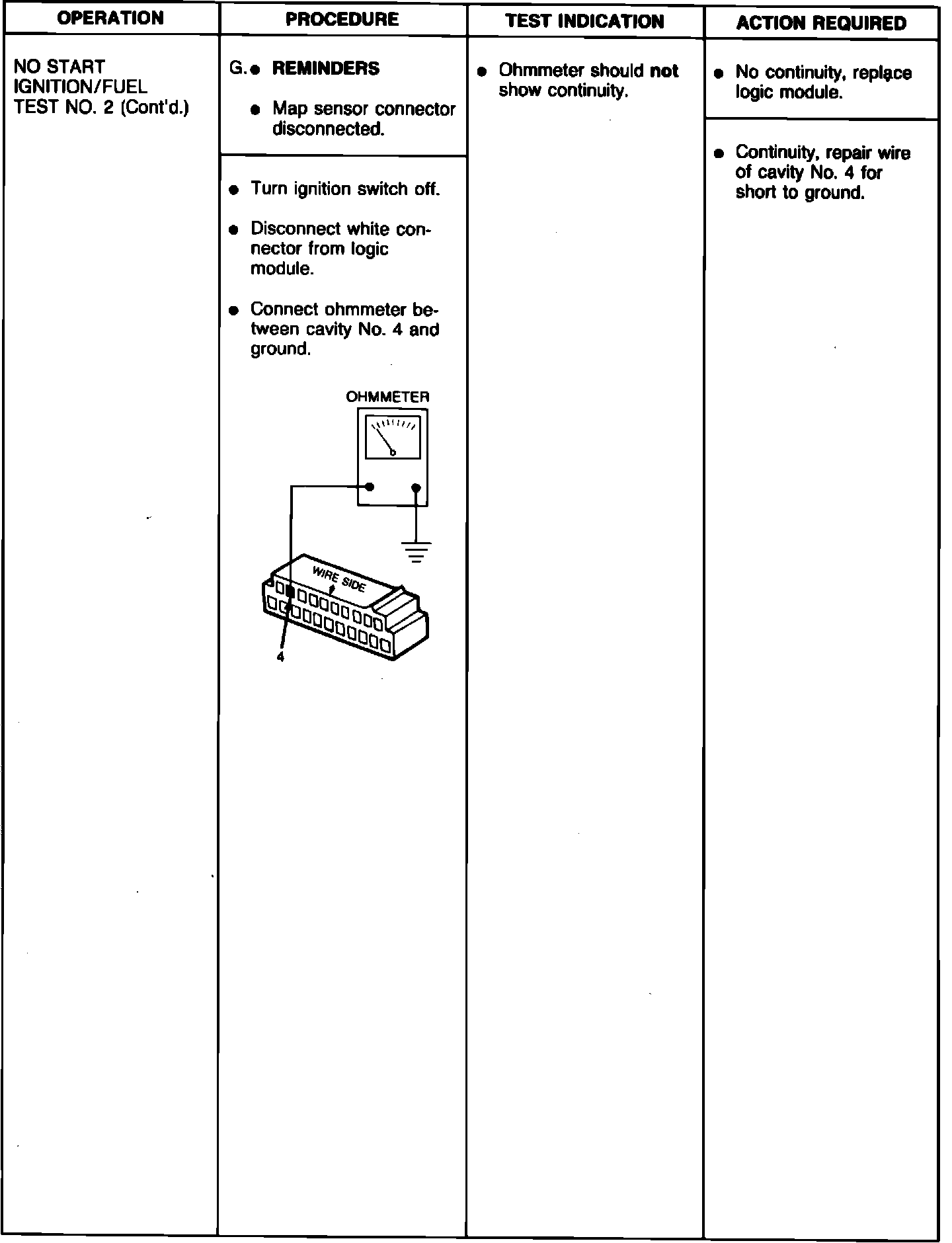

Test 2-Step G:

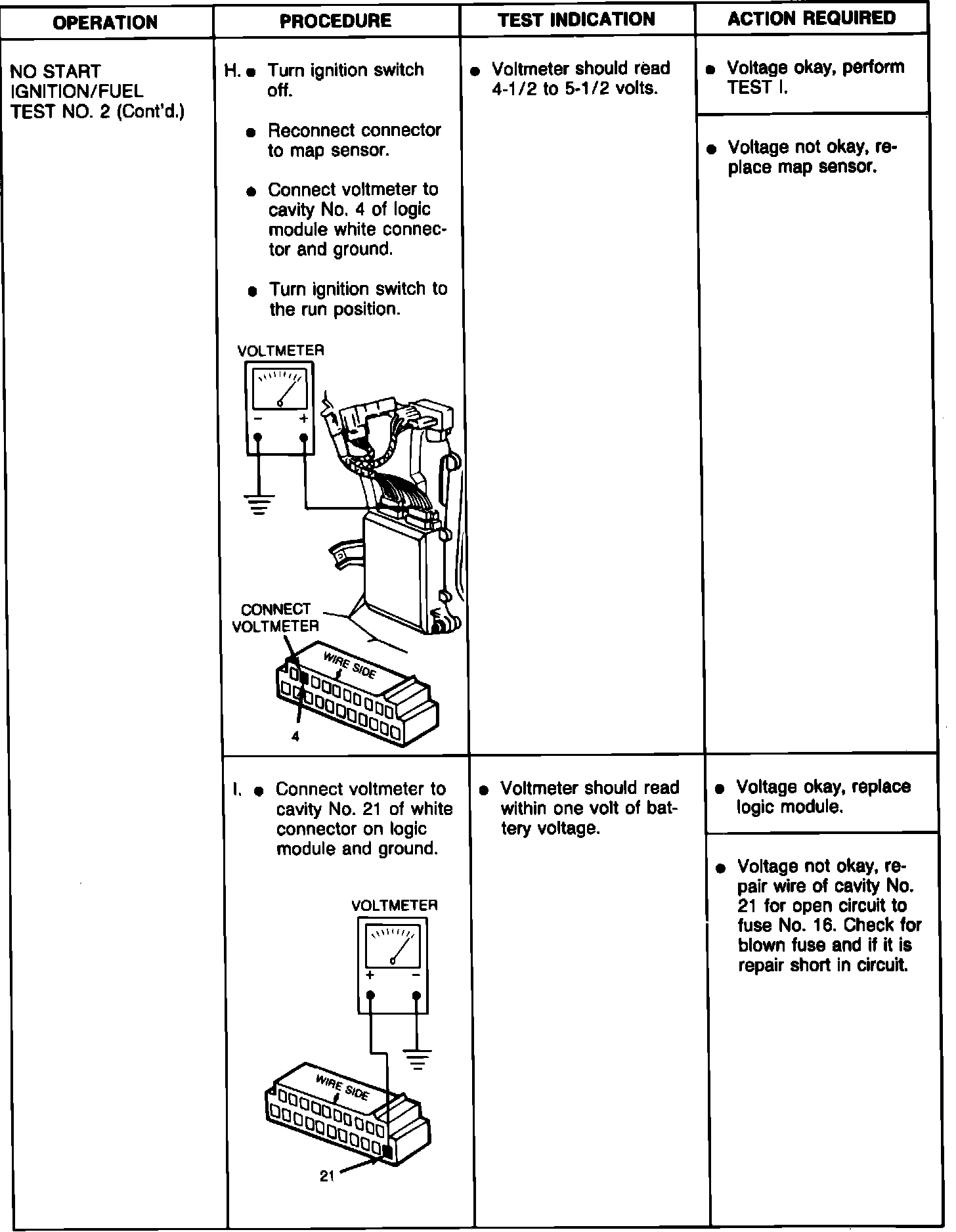

Test 2-Step H & I:

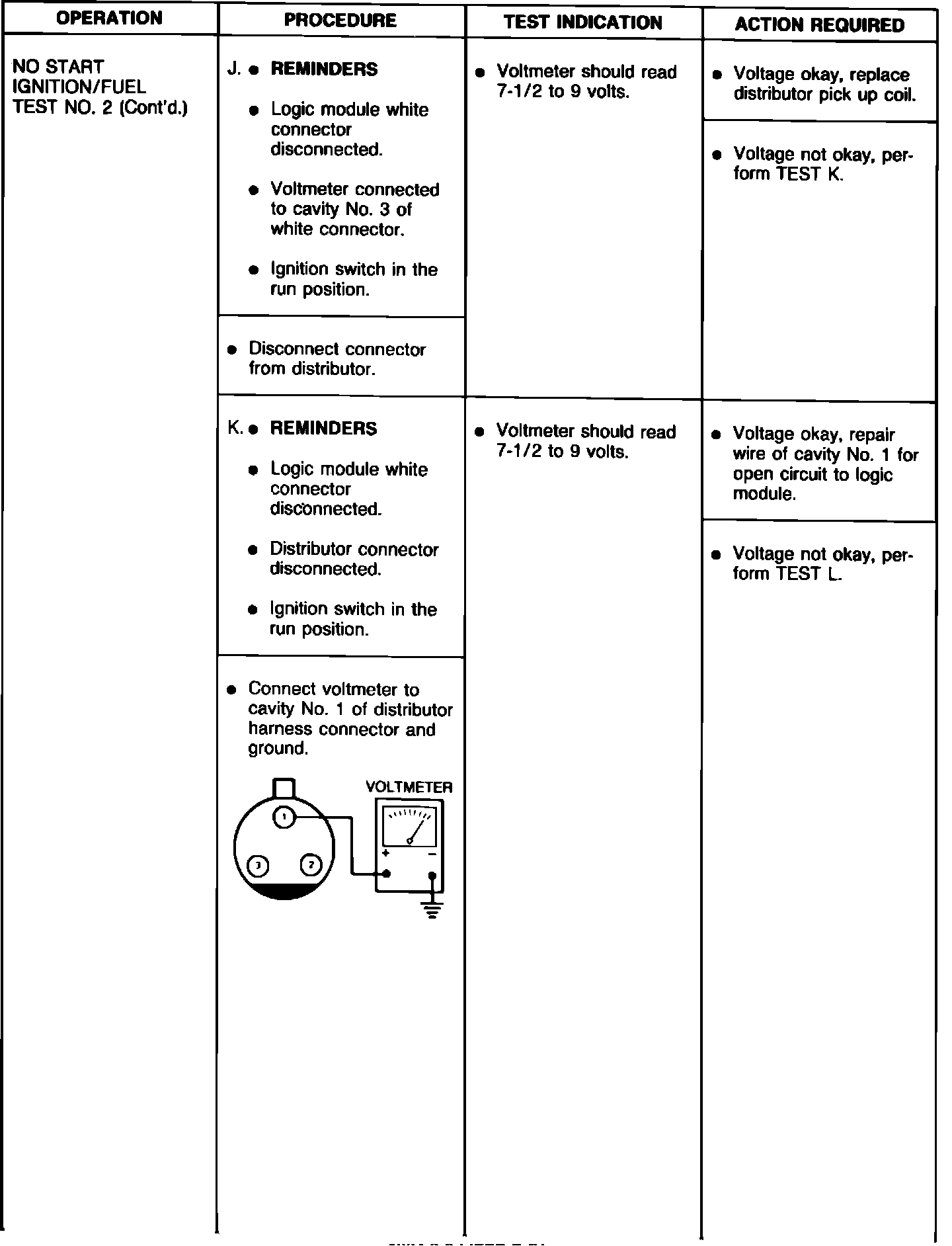

Test 2-Step J & K:

Test 2-Step L:

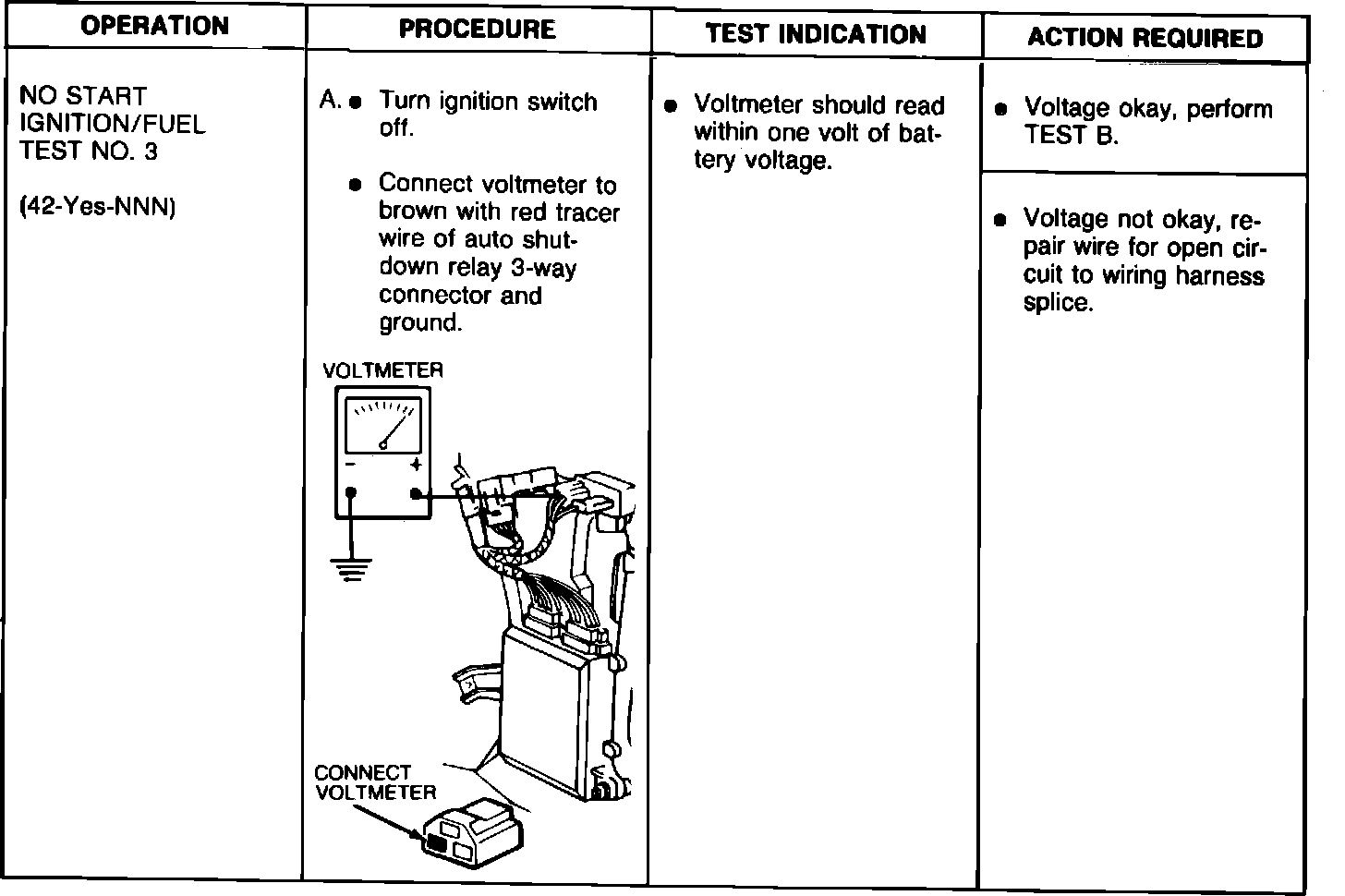

Test 3-Step A:

Test 2-Step M:

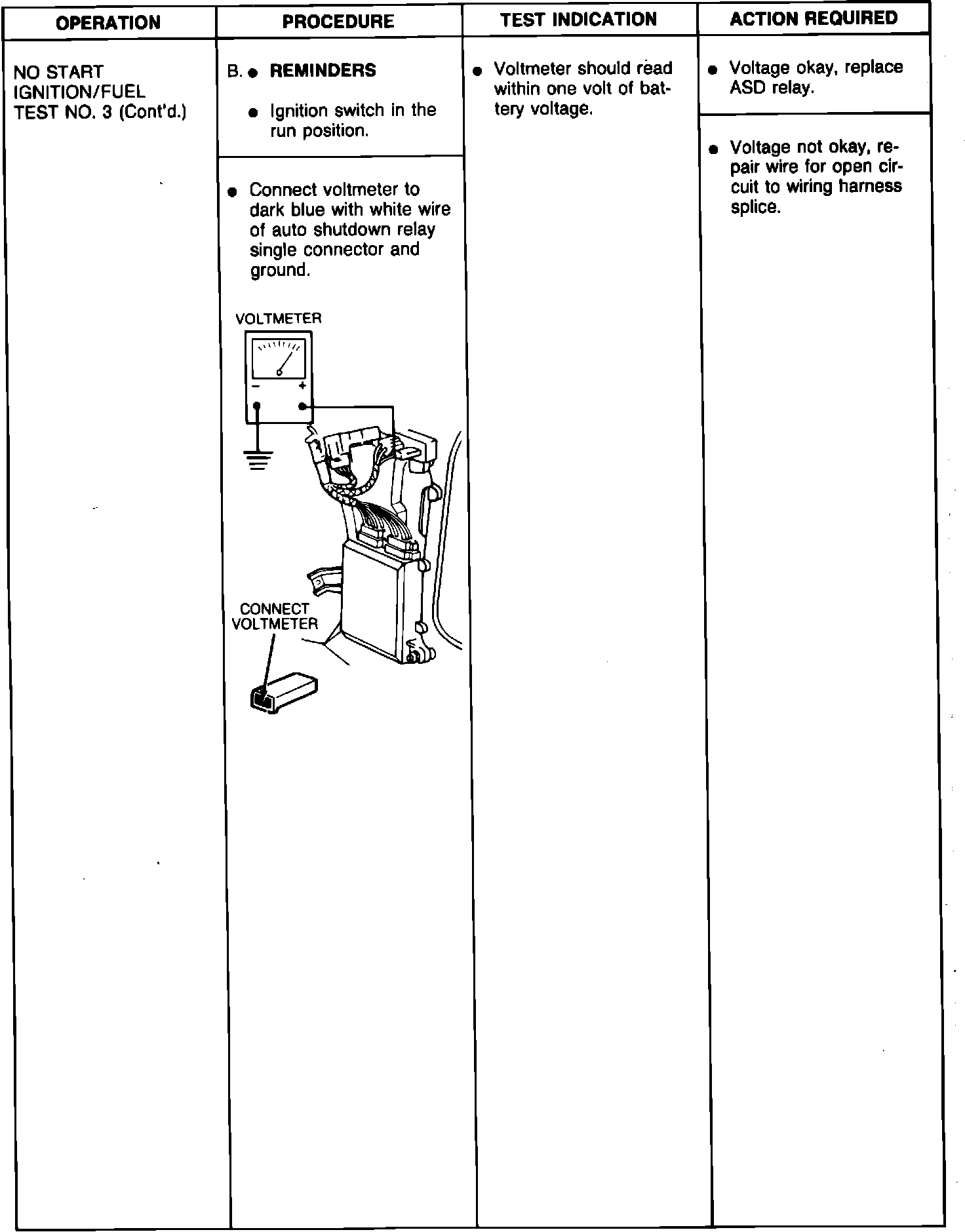

Test 3-Step B:

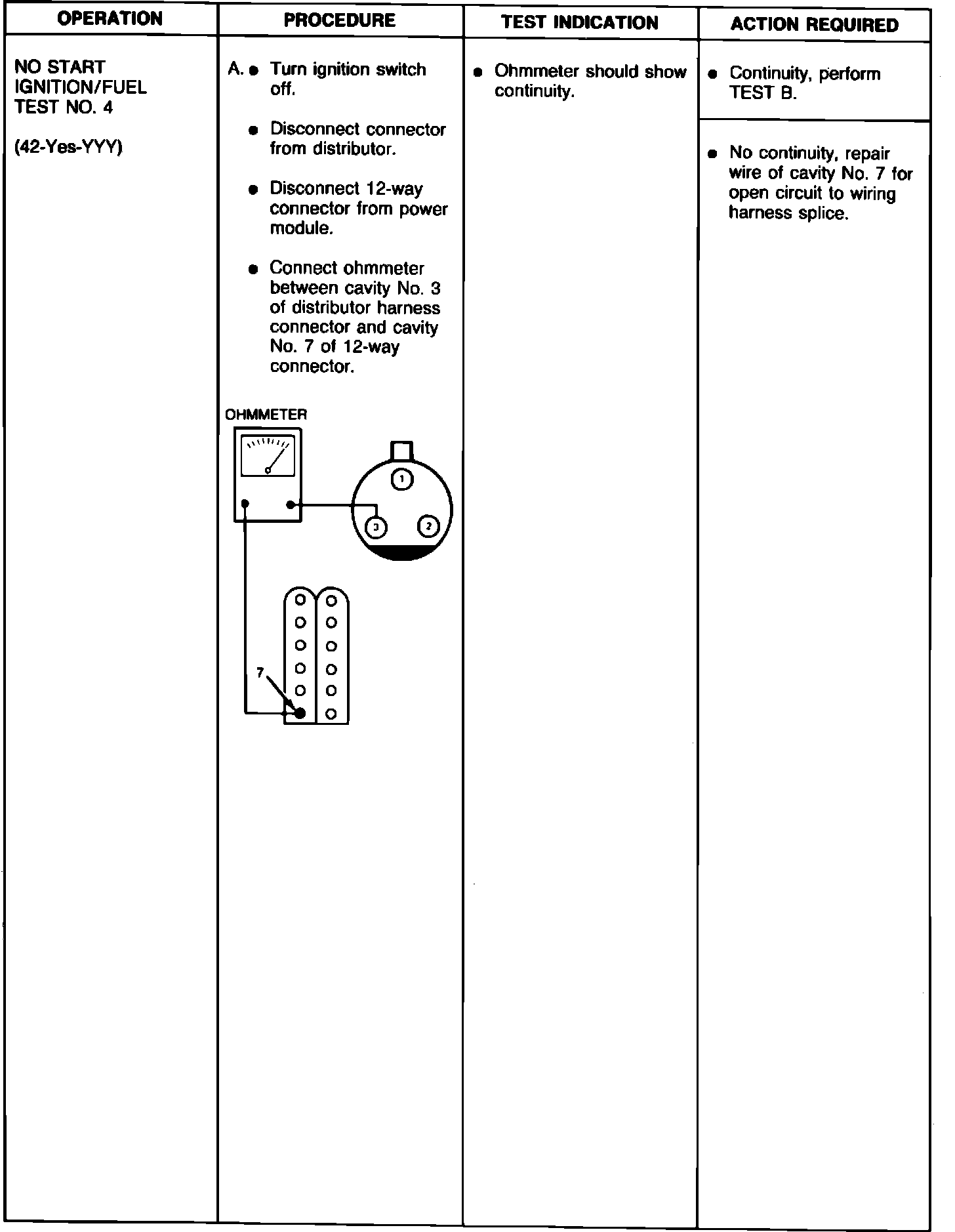

Test 4-Step A:

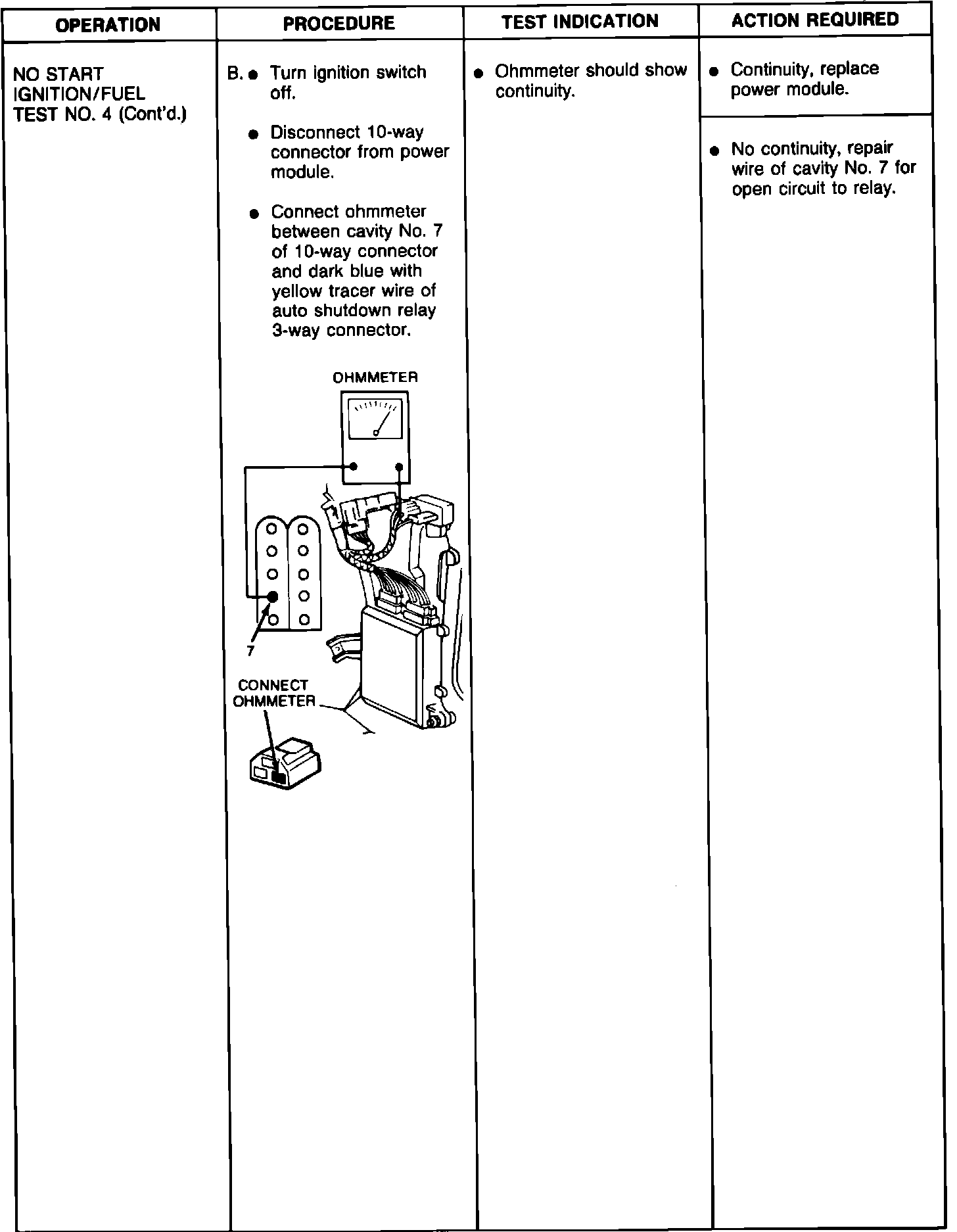

Test 4-Step B:

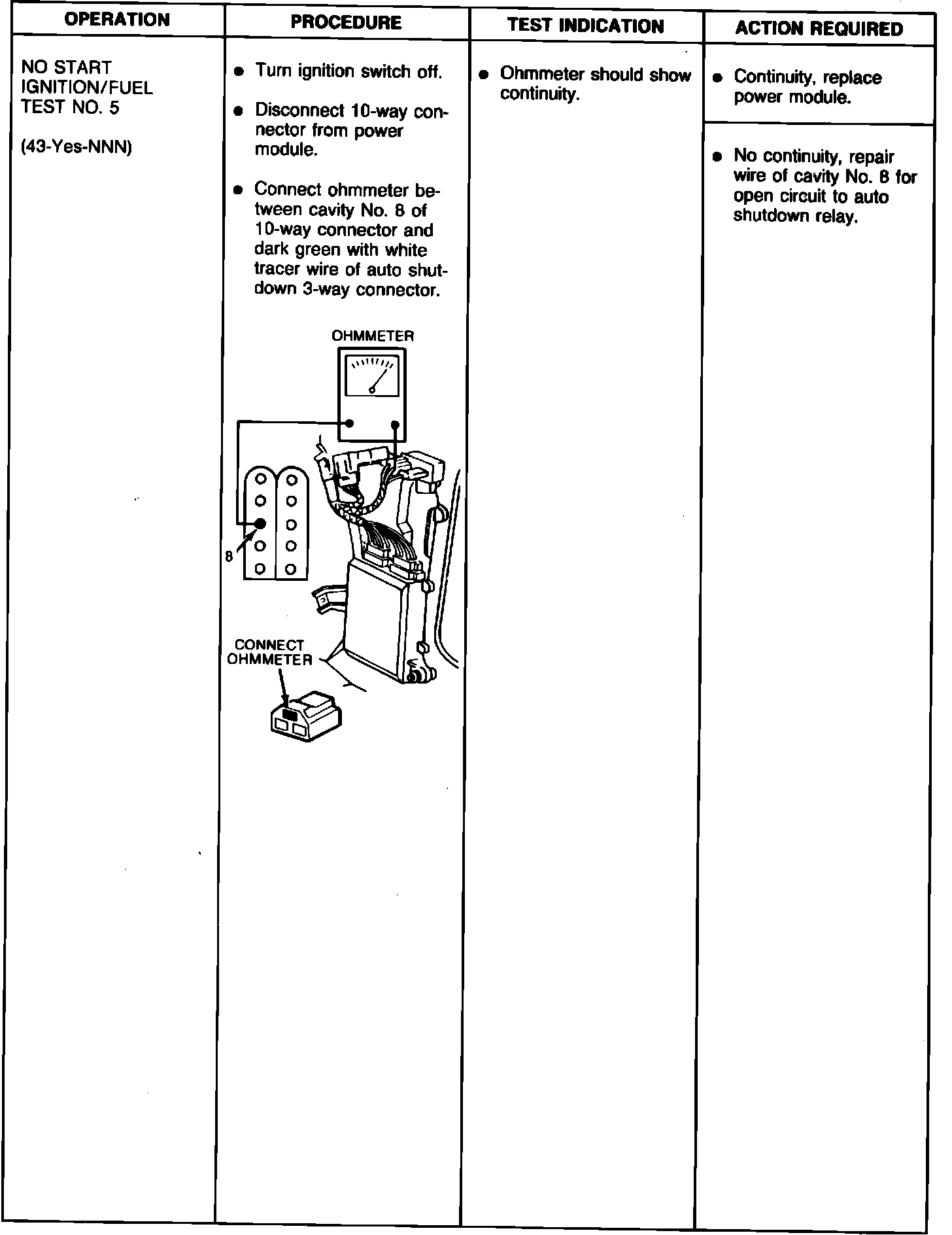

Test 5:
