Lebaron Convertible L4-135 2.2L SOHC VIN D TBI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
With Single Point Fuel Injection (SPI)
>>
Hard Start or Start/Stall/Excessive Idle Speed
Hard Start or Start/Stall/Excessive Idle Speed

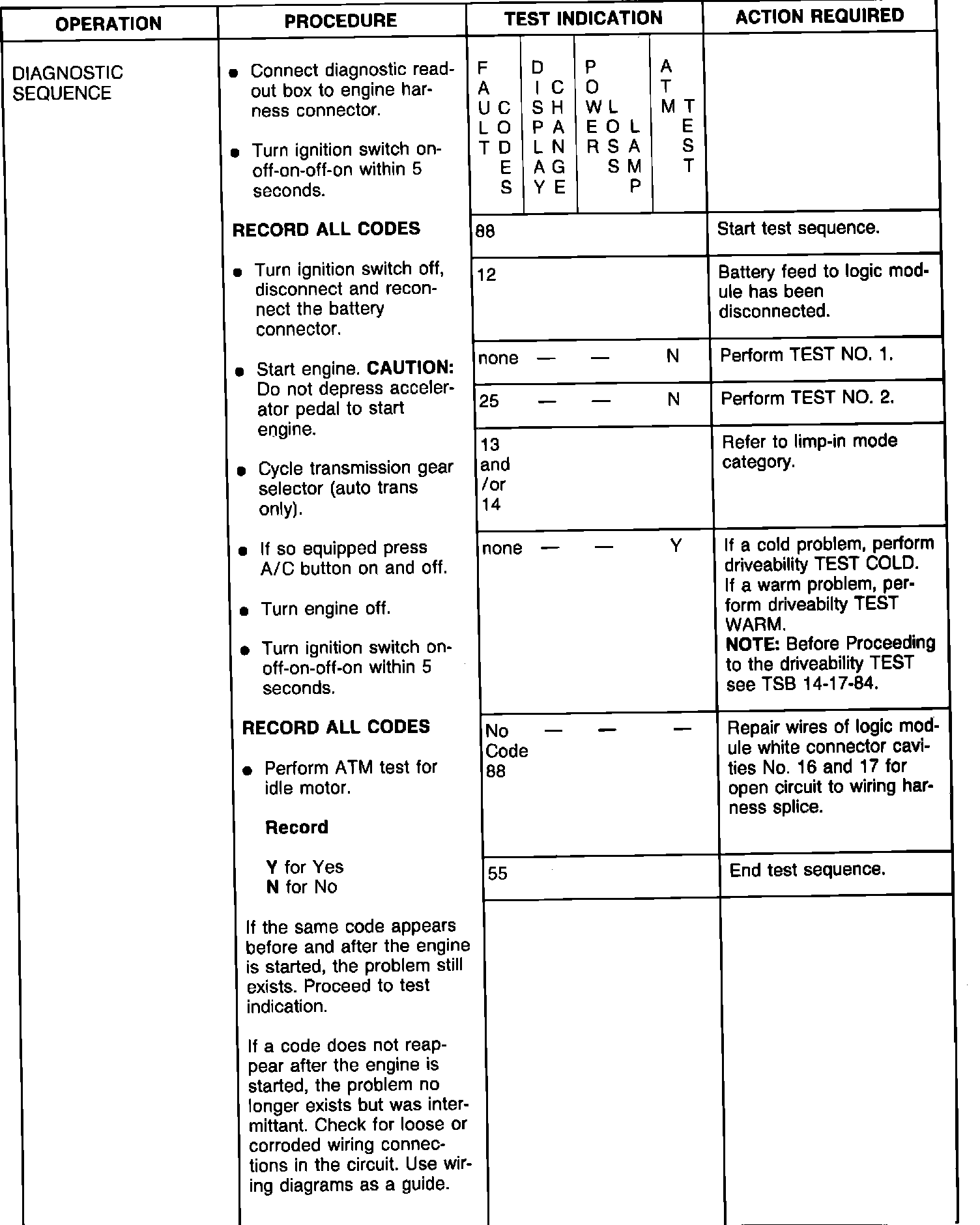

Diagnostic Sequence:
Test 1-Step A & B:

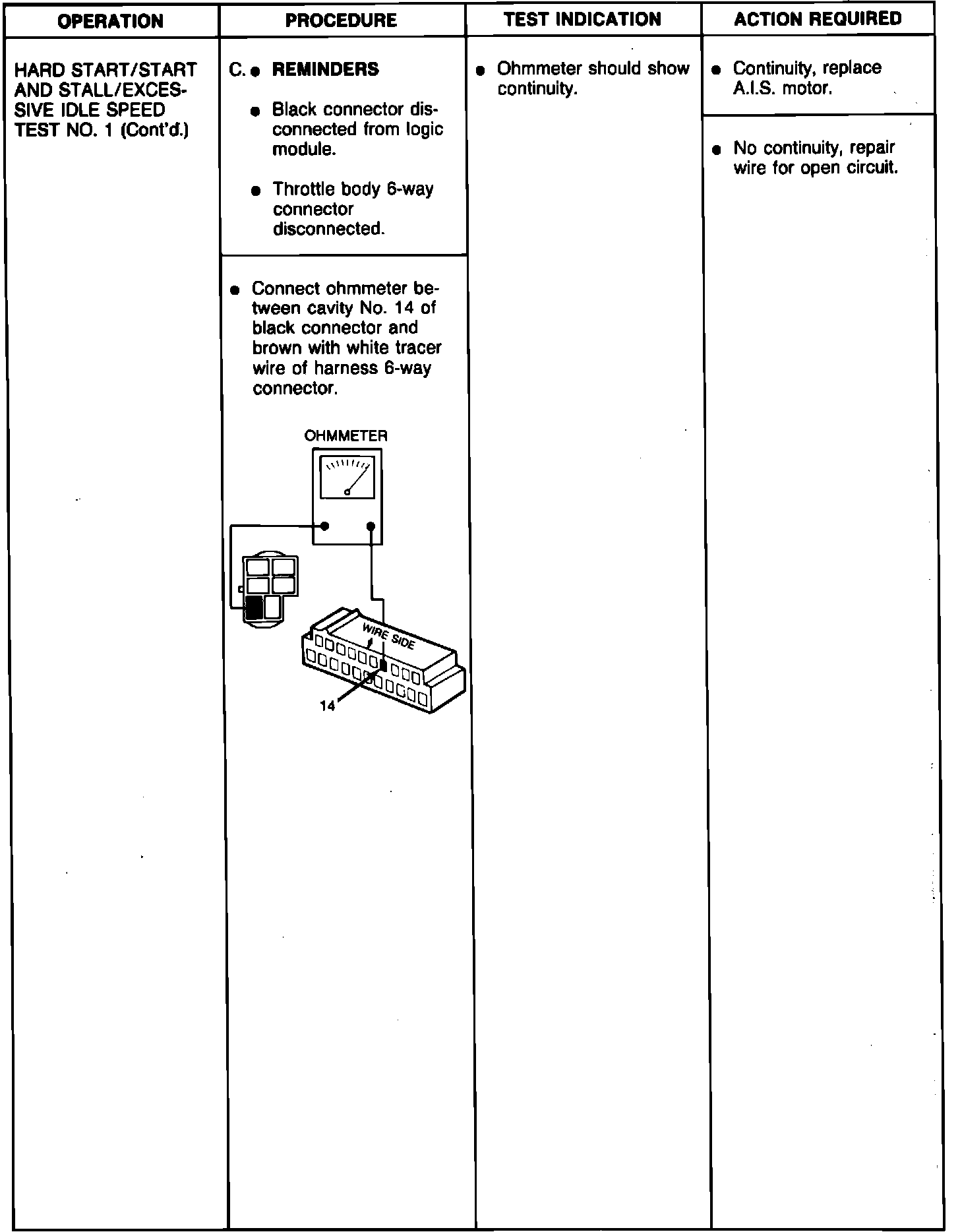

Test 1-Step C:
Test 2-Step A & B:
Test 2-Step C & D:
Test 2-Step E:
