With Fuel Injection

PROCEDURE
1. START engine and let it RUN until the cooling fan has cycled ON and OFF at least once.
2. Turn the engine OFF and disconnect the temperature sensor connector.

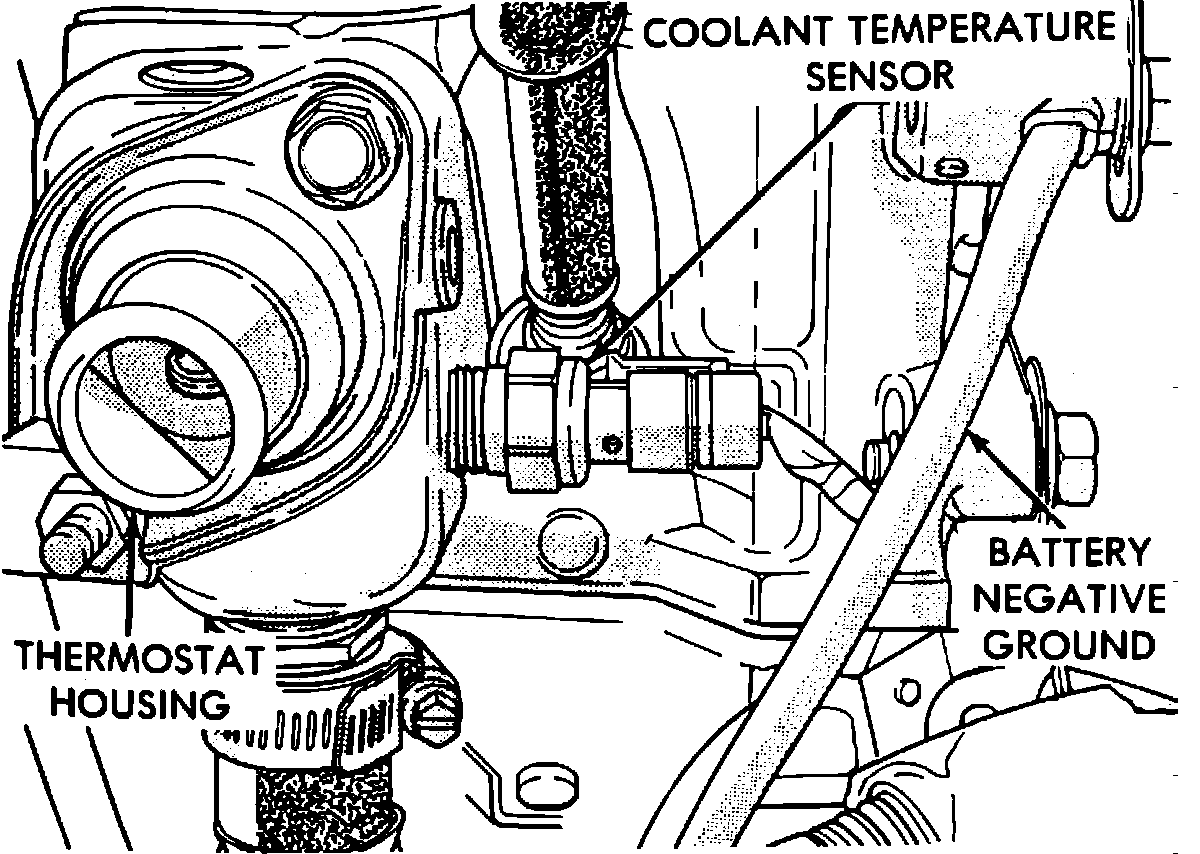

Coolant Temperature Sensor:

3. Connect a suitable timing light to the number one cylinder, (refer to manufacturer's instructions for correct procedures).
4. START the engine, the radiator fan and check engine light should come on. Point the timing light at the timing marks in the window on the top of the bell housing.

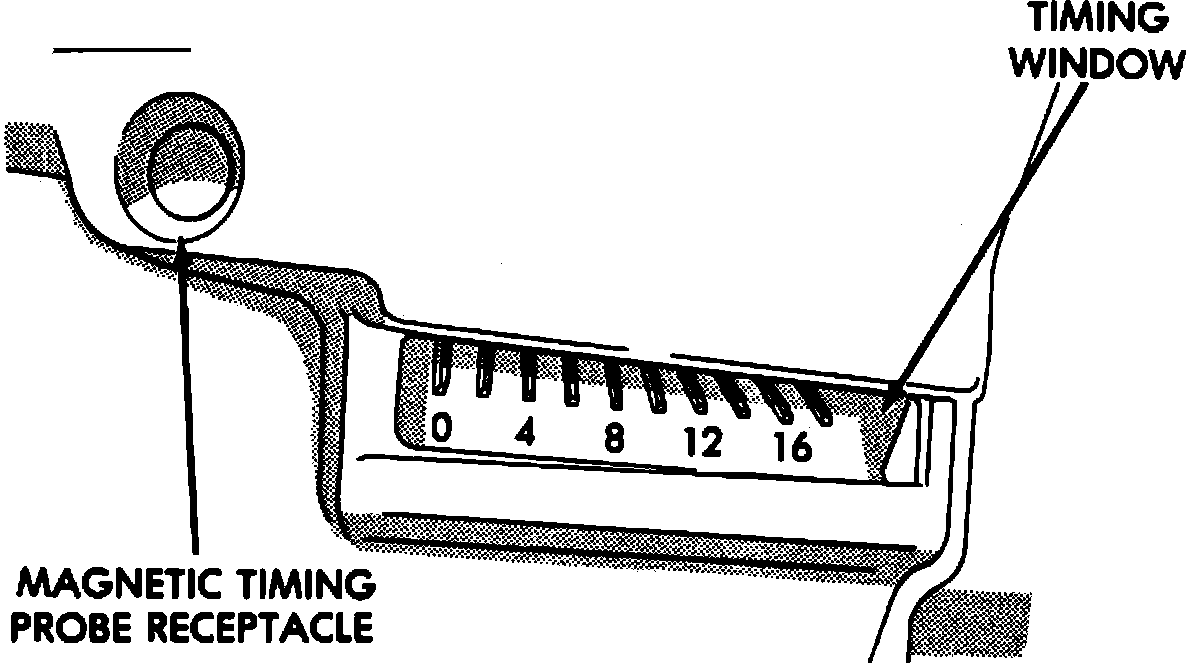

Timing Window And Timing Marks:

5. If the timing is within specifications, (found on the emissions sticker under the hood), no adjustment is necessary. If the timing is outside of specifications loosen the distributor hold down bolt enough to enable the distributor to be turned. Turn the distributor until the timing mark is within specifications and tighten the hold down bolt.

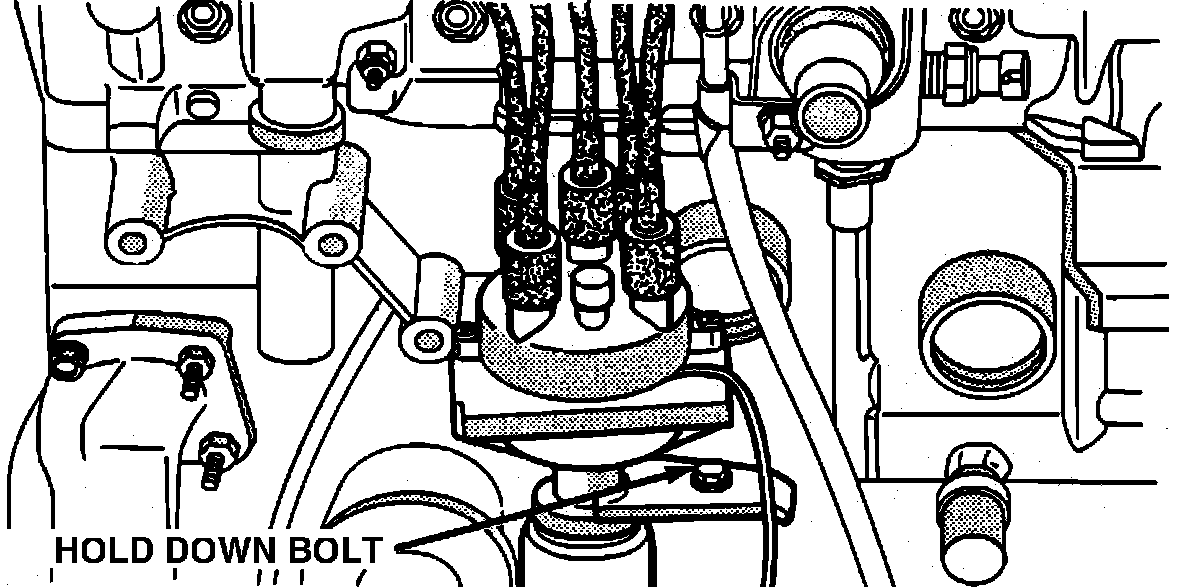

Distributor View:

6. Turn the engine OFF, connect the coolant sensor and disconnect the timing light. Erase the fault codes set by the timing procedure.
