Overtorqued Idle Adjustment Screw Lock Plug (T.B.I)

83chrysler5

Models


1984 2.2L Engine With Throttle Body Fuel Injection (Non-Turbo Charged)


Subject


Overtorqued Idle Adjustment Screw Lock Plug


Index


FUEL


Date November 22, 1983


No..


14-45-83

P-4500-C

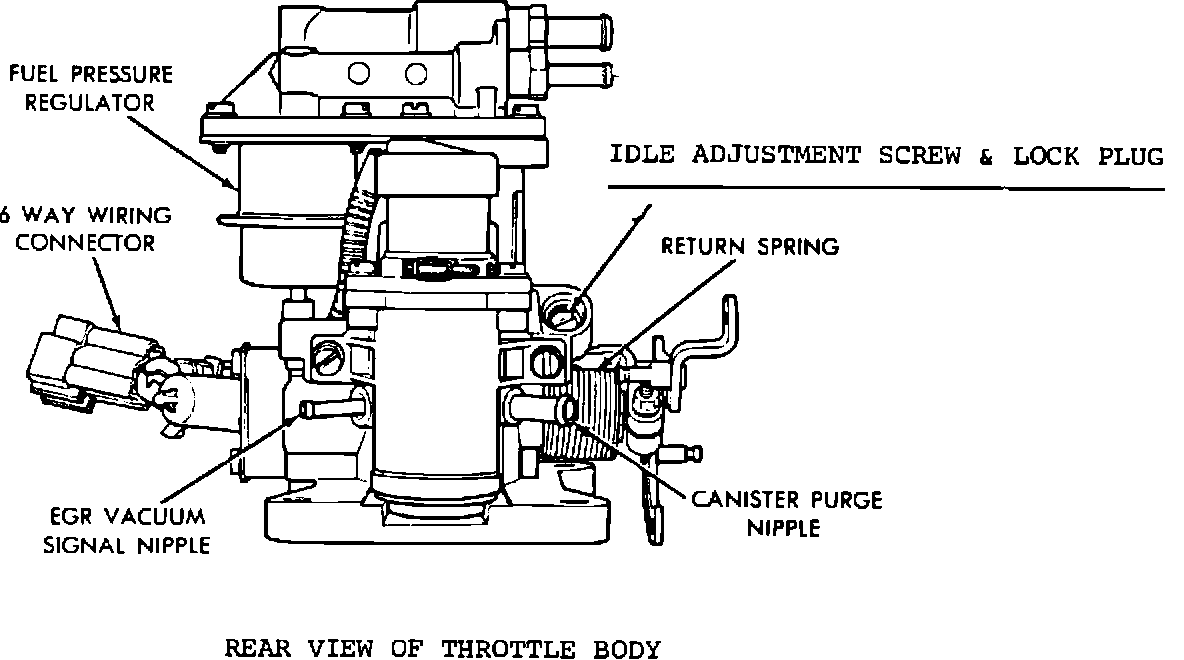

FIGURE 1:

SYMPTOM/CONDITION

On early model 2.2L vehicles with throttle body fuel injection (T.B..I.) the idle adjustment screw lock plug may have been overtorqued in production beyond the recommended 20 inch pounds torque (Figure 1).
REPAIR PROCEDURE

The overtorque condition will require the use of an offset screw driver to break the lock plug loose before using Miller Special Tool C-4804 to adjust idle speed as outlined in 1984 Front Wheel Drive Service Manual, publication #81-270-4004, page 14-75. After performing an idle speed adjustment, plug screw to 20 inch pounds torque. DO NOT OVER-TOROUE.


POLICY: Information only
