Fuel Pump: Description and Operation

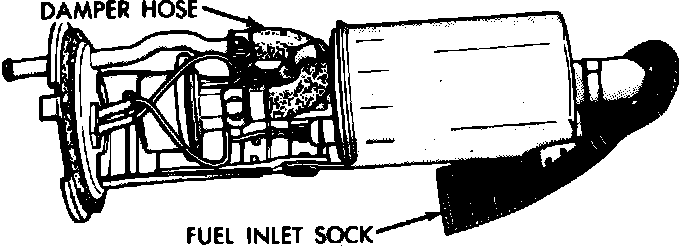

Fig. 1 Electric fuel pump assembly. Front wheel drive models w/single point & multi-point fuel injection. Exc. Shelby w/turbocharged engine:

The fuel pump used in the EFI system, Fig. 1, is a positive displacement, roller vane, immersible pump with a permanent magnet type electric motor. The fuel is drawn in through the filter sock and pushed through the electric motor to the outlet. The pump contains check valves that restrict fuel movement in either direction when the pump is not operational. Operating voltage is supplied to the pump through the Auto Shutdown (ASD) relay.

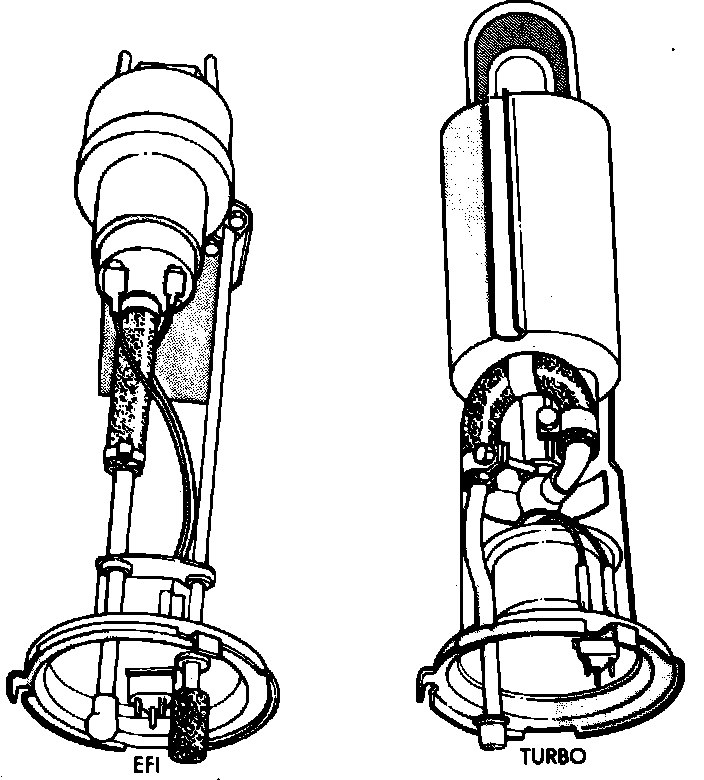

Fig. 2 Electric fuel pump assembly. 1987-88 front wheel drive models w/single point & multi-point fuel injection. Exc. 1987-88 Shelby w/turbocharged engine:

Electric fuel pump assembly. 1987-88 front wheel drive models.
