2.2L Turbo Exc. 1987 Lebaron, Shadow & Sundance
2.2L Turbo Exc. 1987 Lebaron, Shadow & Sundance

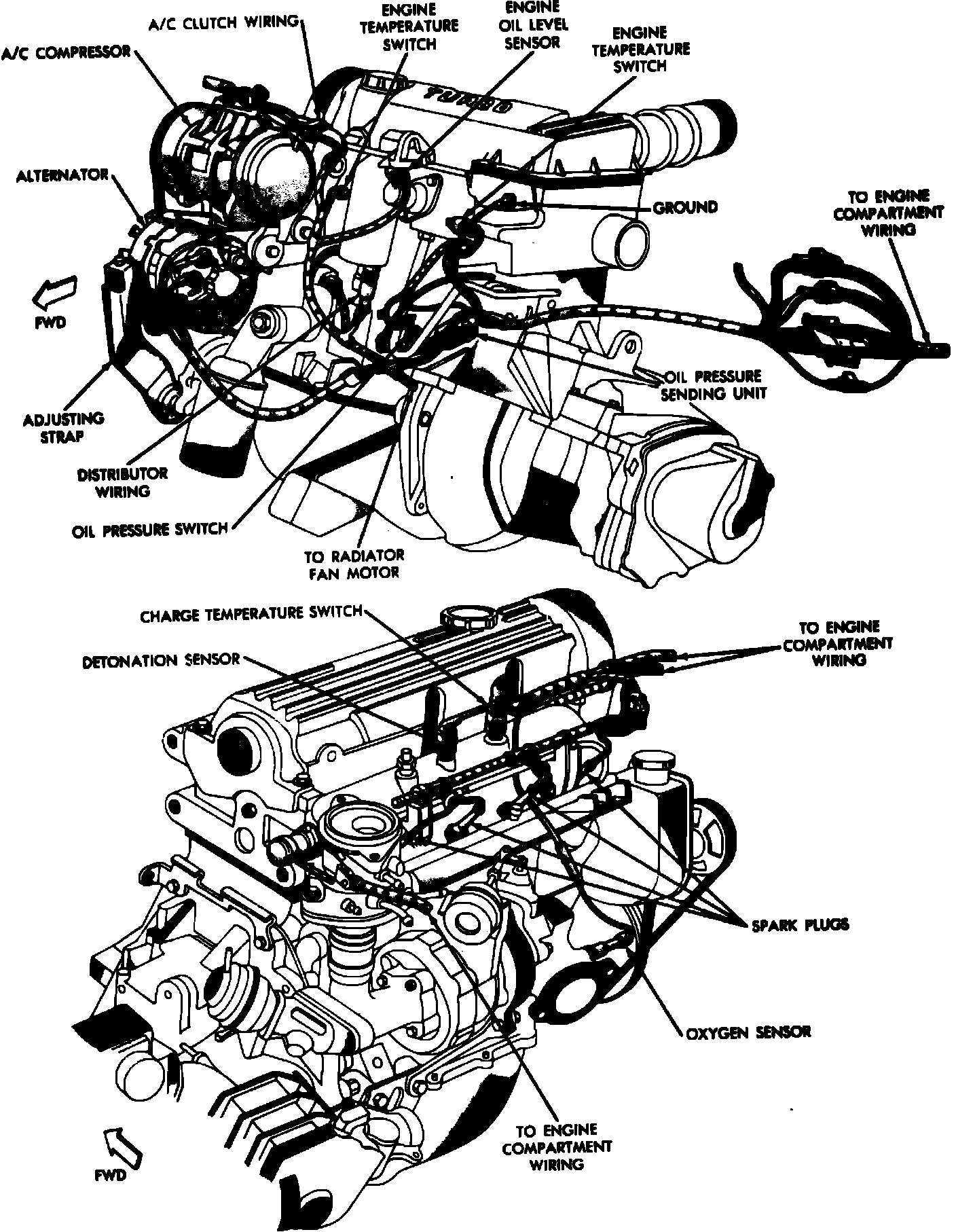

Compartment location. 4-135/2.2L turbocharged engine Exc. 1987 LeBaron, Shadow & Sundance:
