EGR Valve: Service and Repair

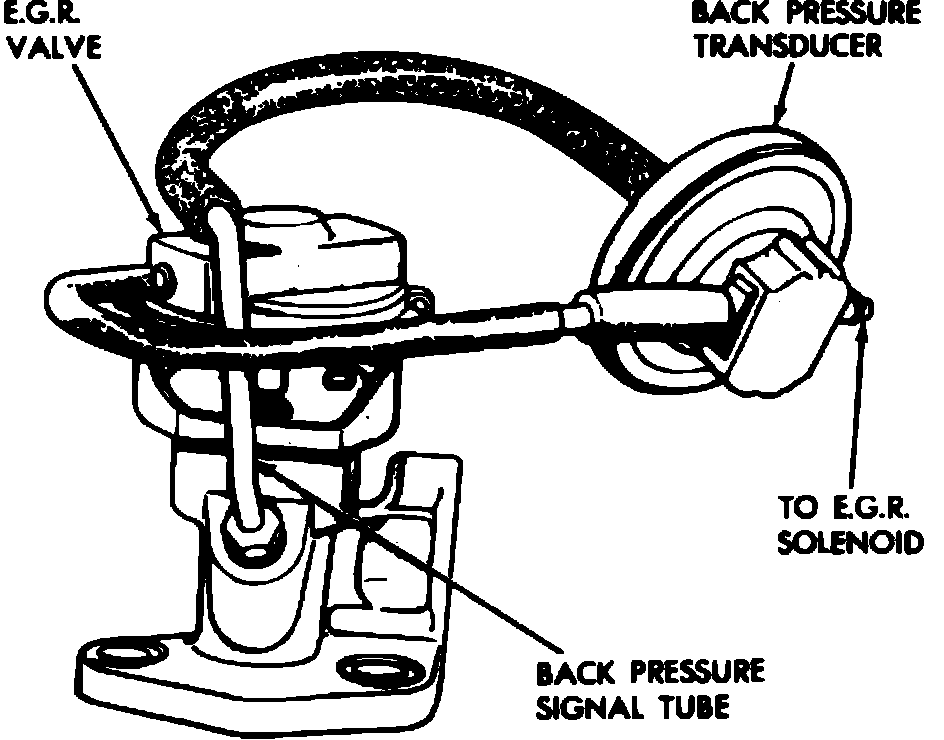

Fig. 10 EGR valve & back pressure transducer assembly replacement:

1. Disconnect vacuum hose from back pressure transducer, Fig. 10.
2. Pull transducer straight out from mounting clip.
3. Remove EGR valve attaching screws, then the EGR valve and back pressure transducer assembly.
4. Reverse procedure to install.
