Home >> Chrysler >> 1984 >> Lebaron Convertible L4-134 2.2L VIN C 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Vacuum and Vapor Hose Diagrams >> California >> W/2 Barrel CARB.

W/2 Barrel CARB.

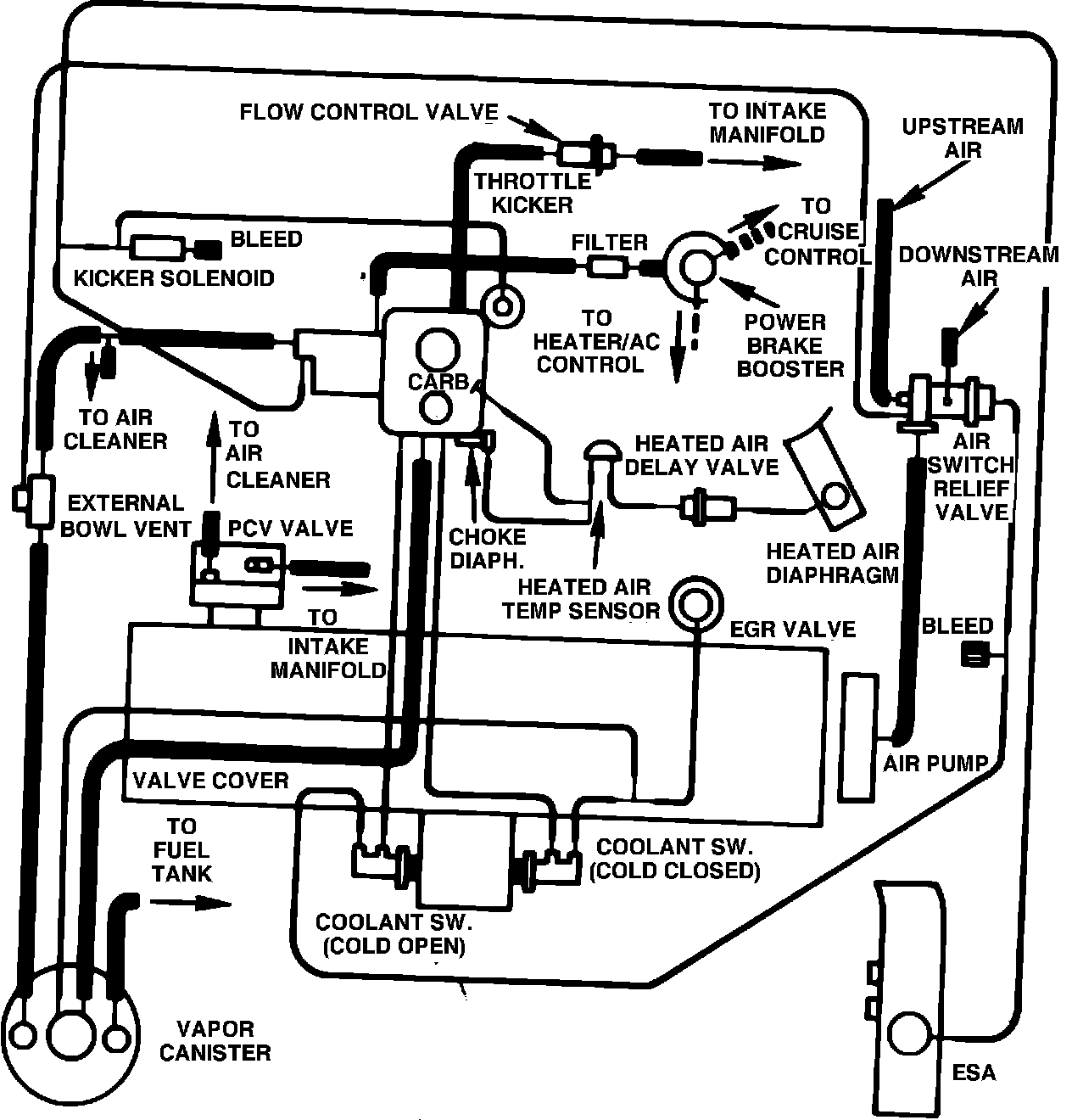

Fig. 3Vacuum hose routing. 1984 4-135/2.2L 2 Bbl. California:
