With Electronic Feedback Carburetor (EFC)
>>
No Start/Ignition Test
No Start/Ignition Test

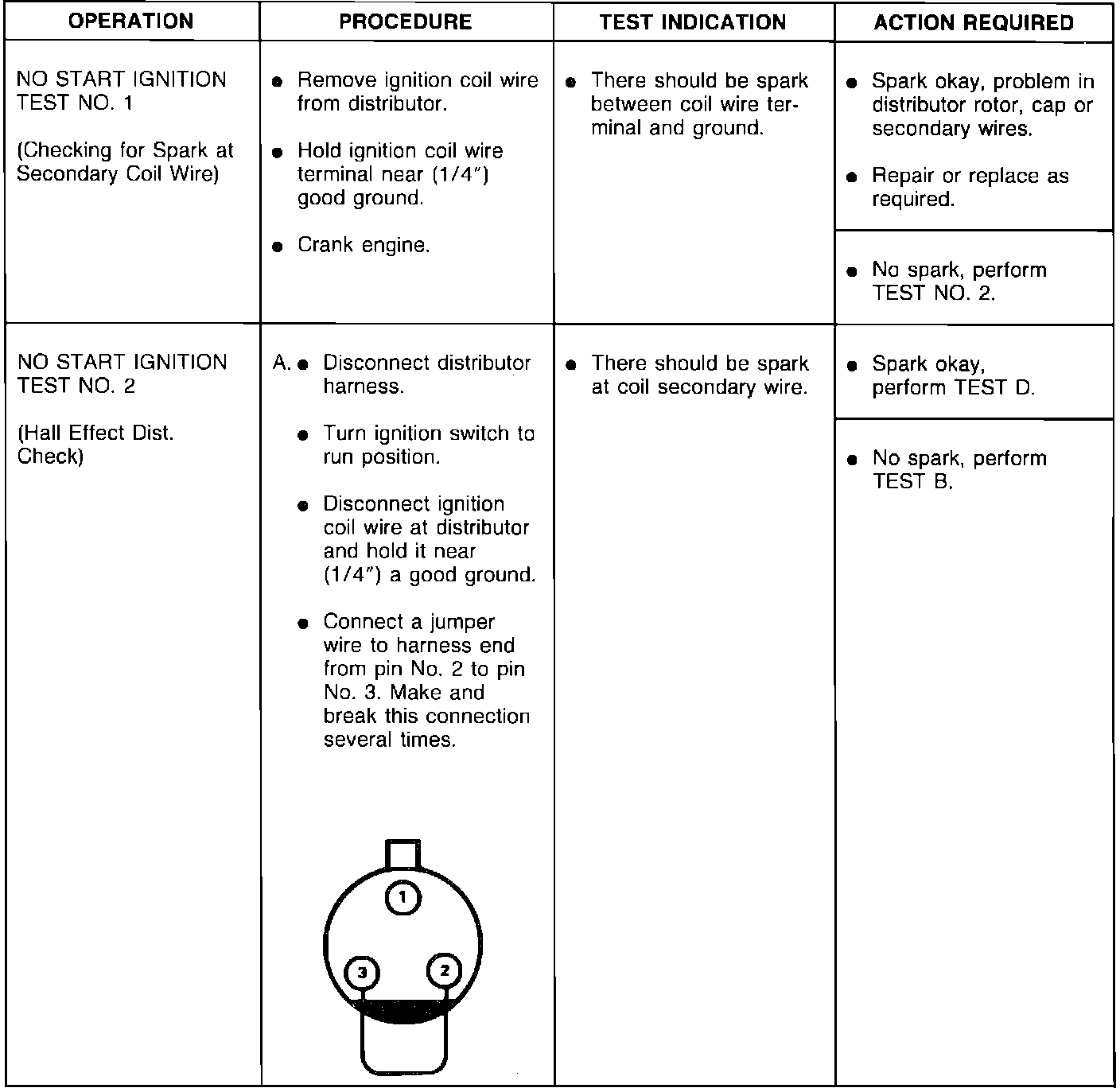

Test 1 & 2-Step A:

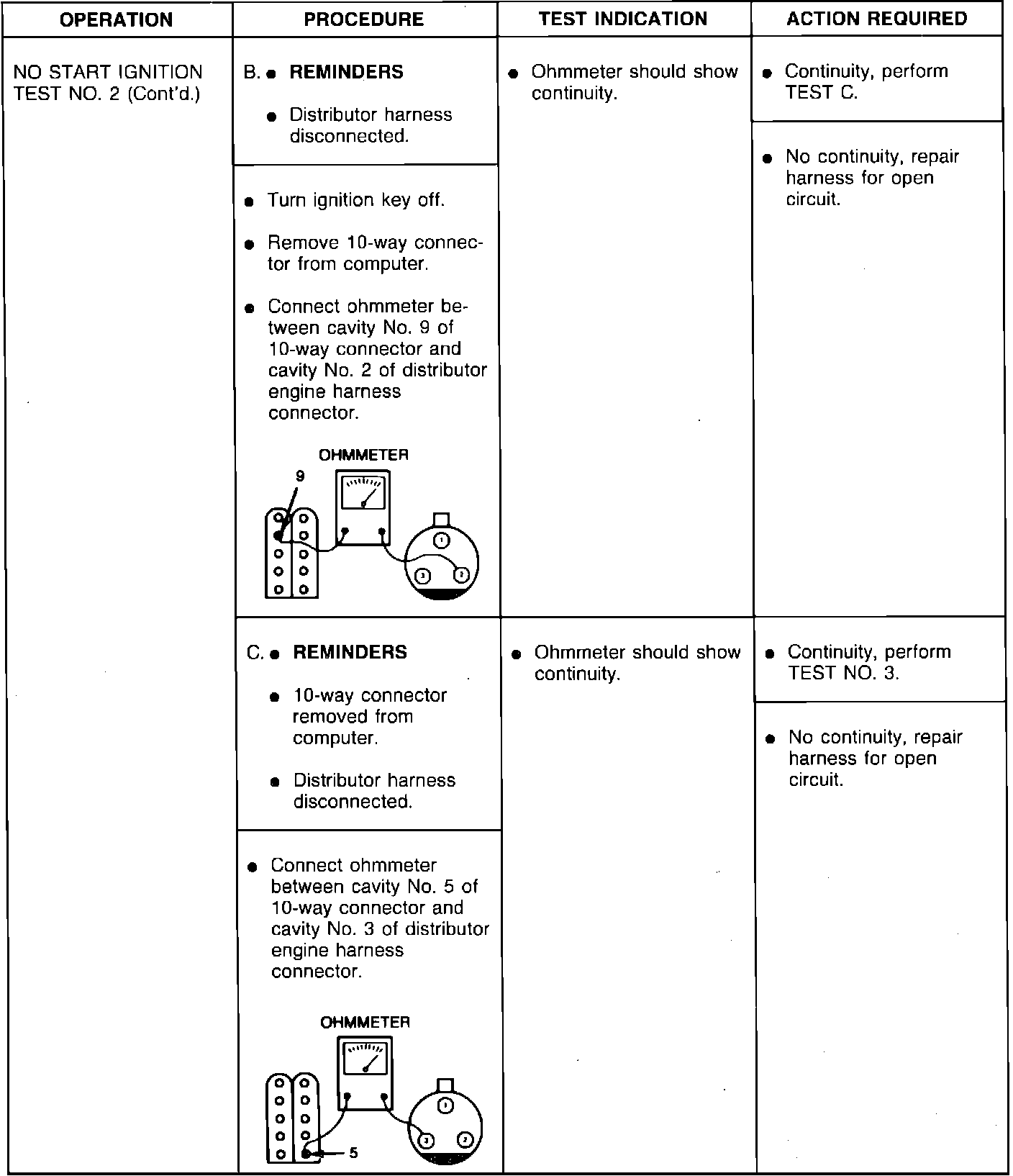

Test 2-Step B & C:

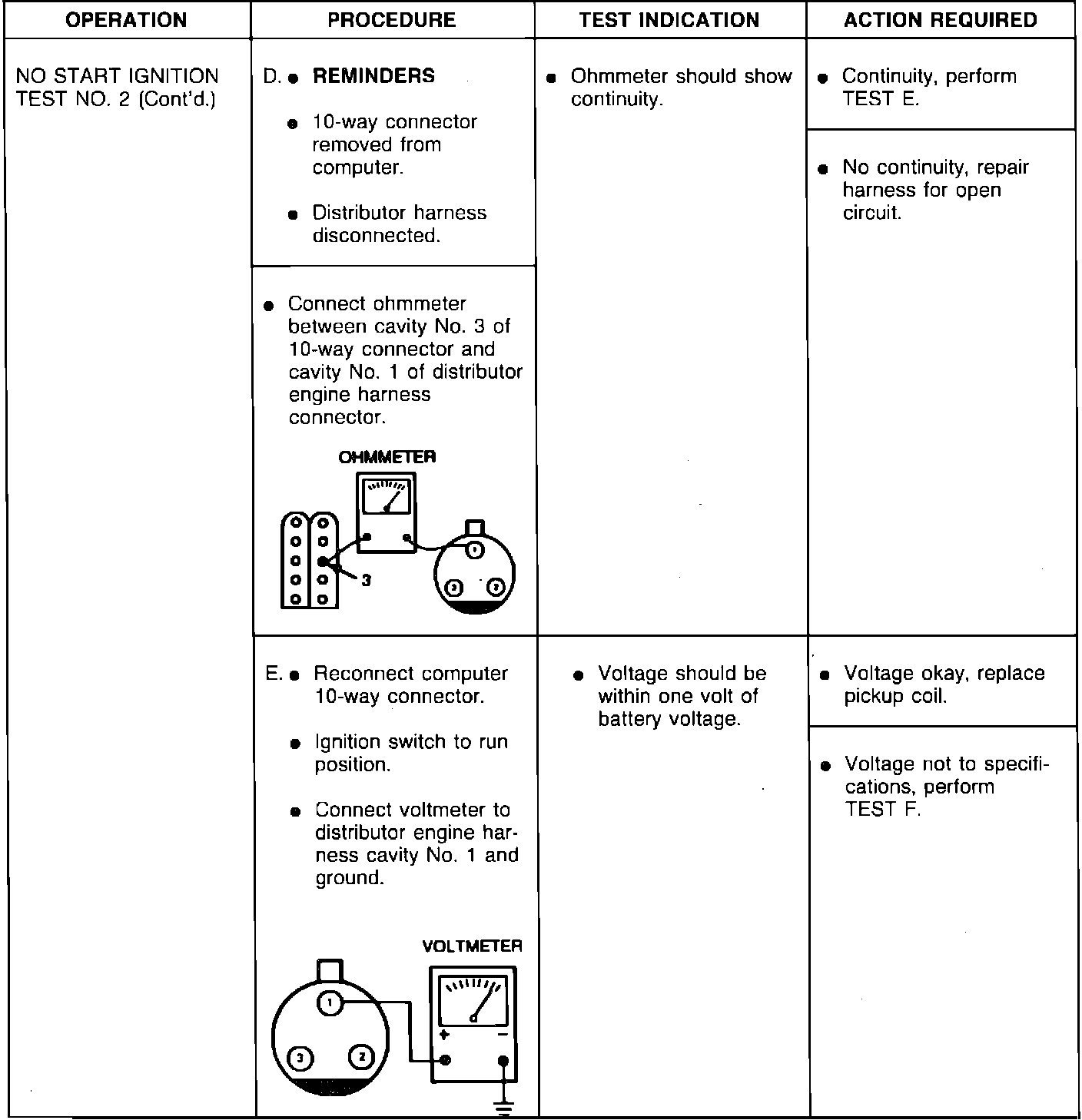

Test 2-Step D & E:

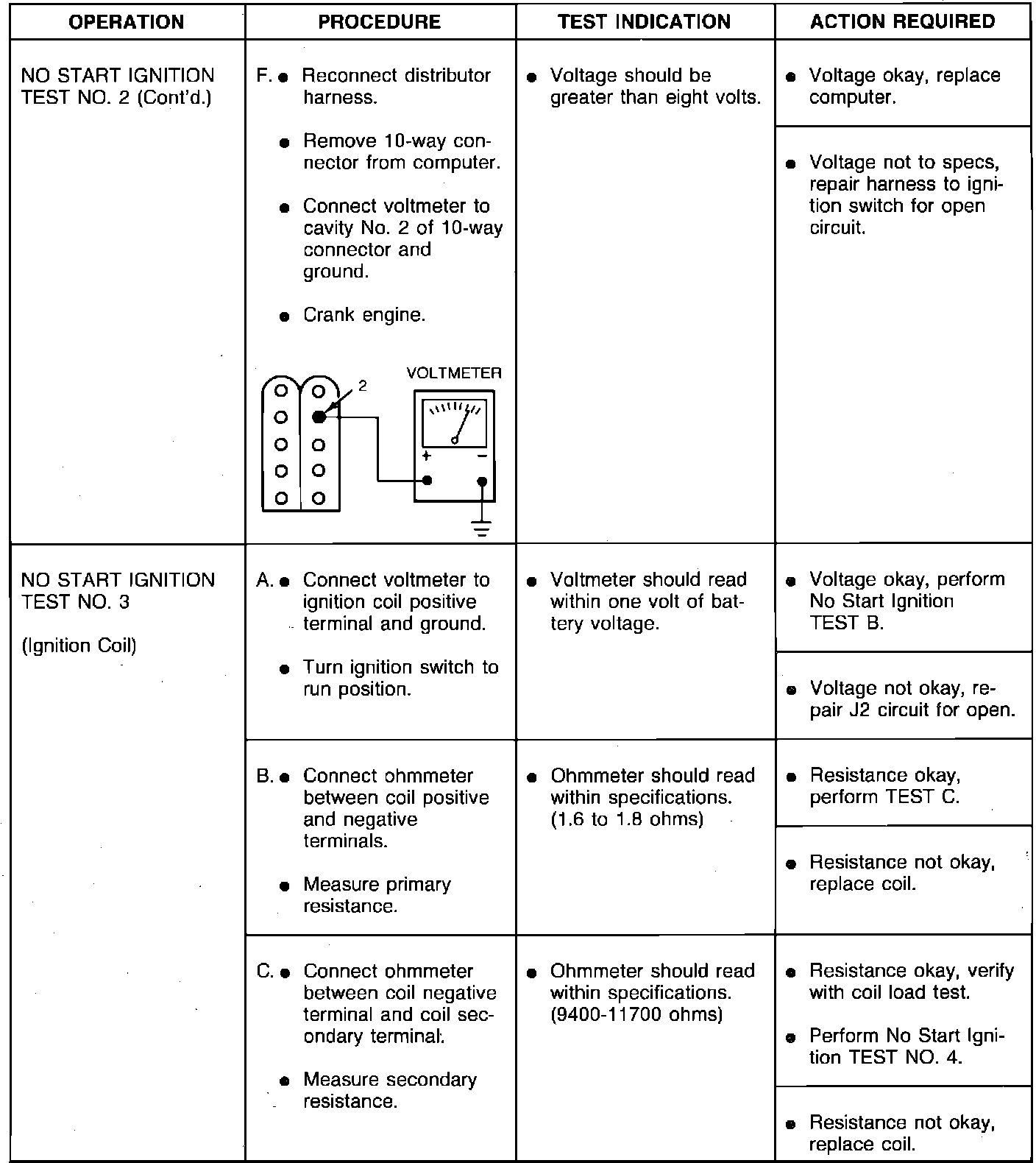

Test 2-Step F, Test 3:

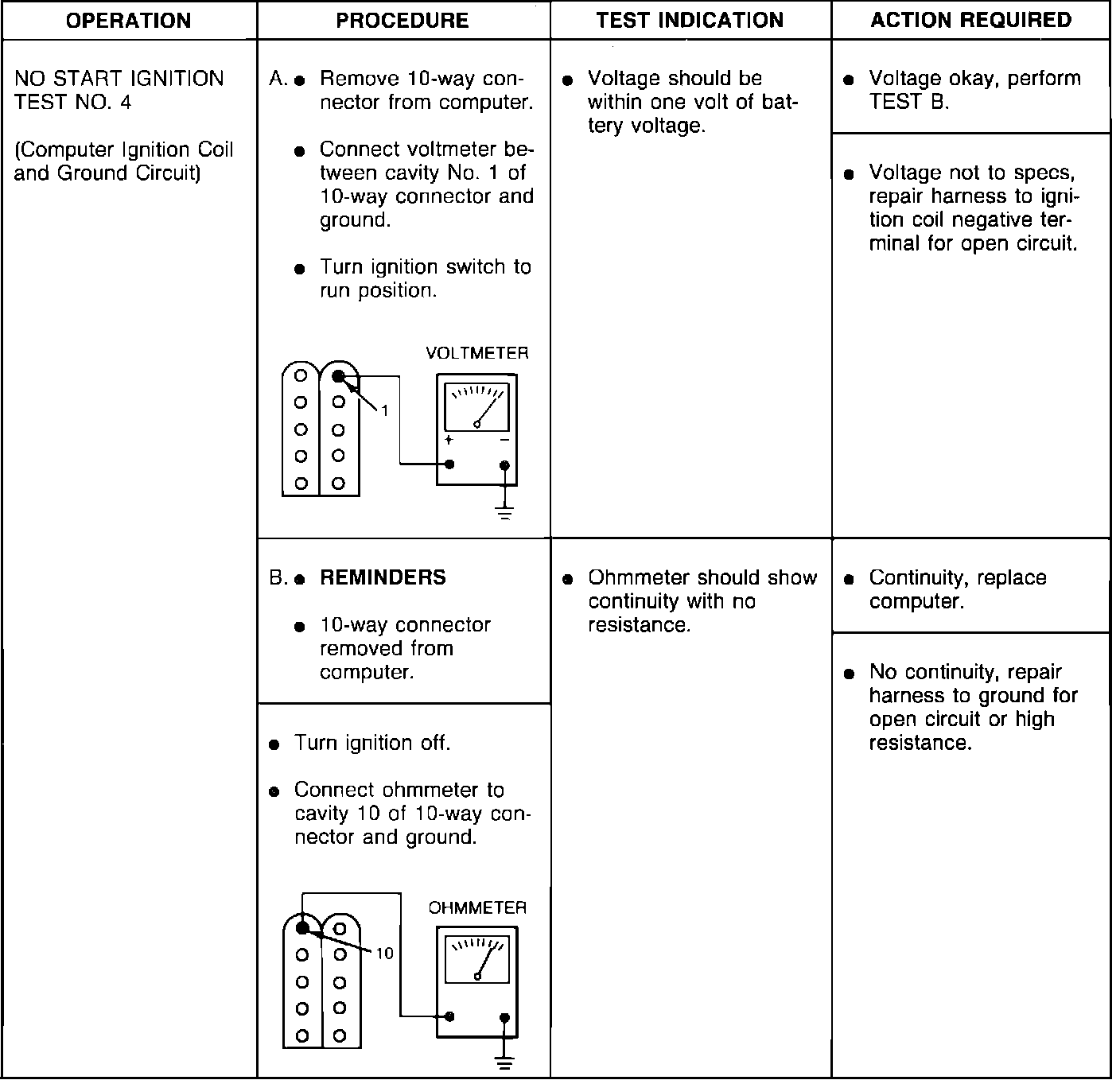

Test 4-Step A & B:
