Chrysler
>>
1984
>>
Lebaron Convertible L4-134 2.2L VIN C 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
With Electronic Feedback Carburetor (EFC)
>>
No Start Tests
No Start Tests

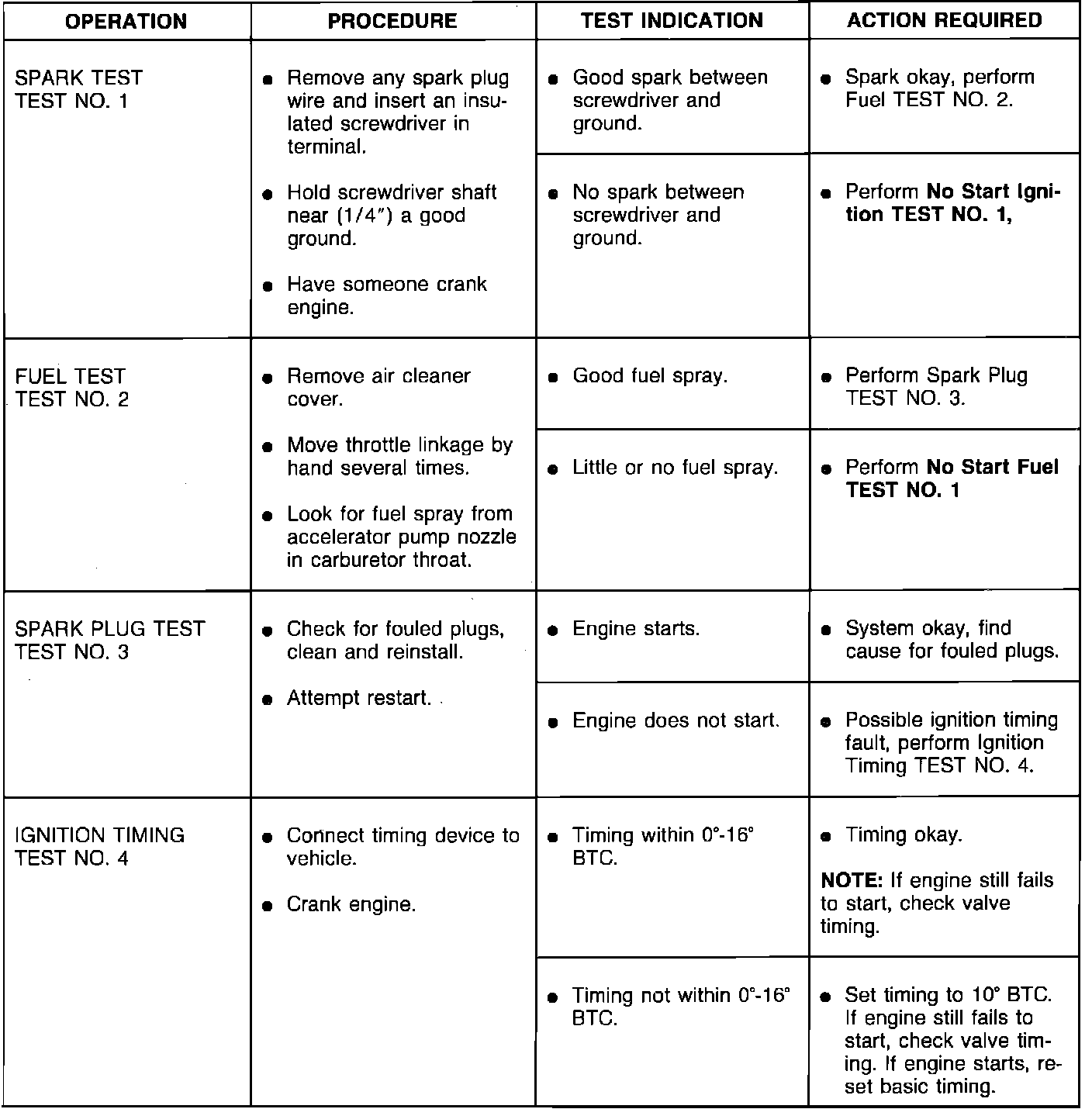

Test 1, 2, 3 & 4:
