Radiator Fan and Compressor Circuits

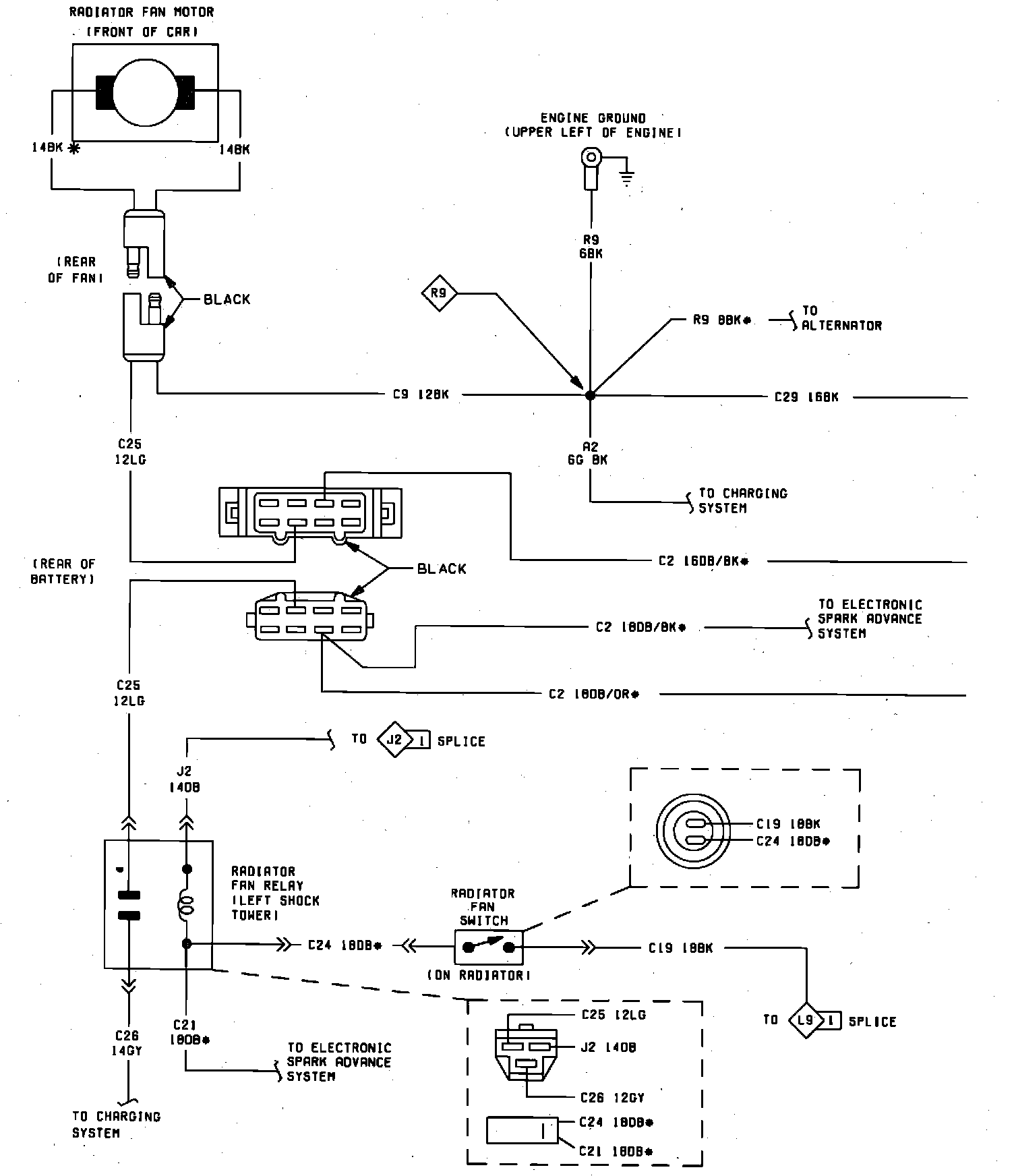

Air Conditioning And Heater System - Turbo And TBI (Part 1 Of 2):



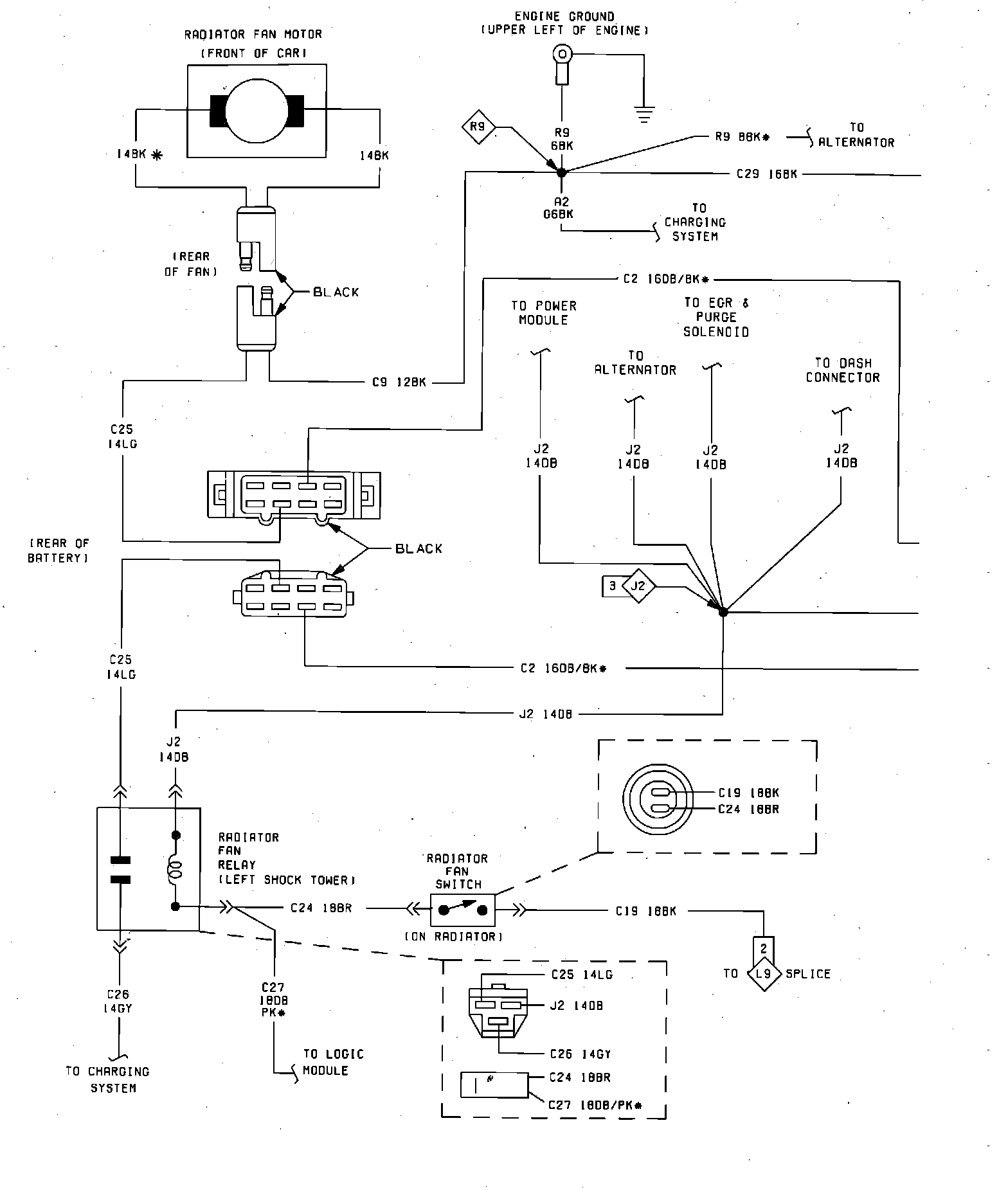

Air Conditioning And Heater System - Turbo And TBI (Part 2 Of 2):

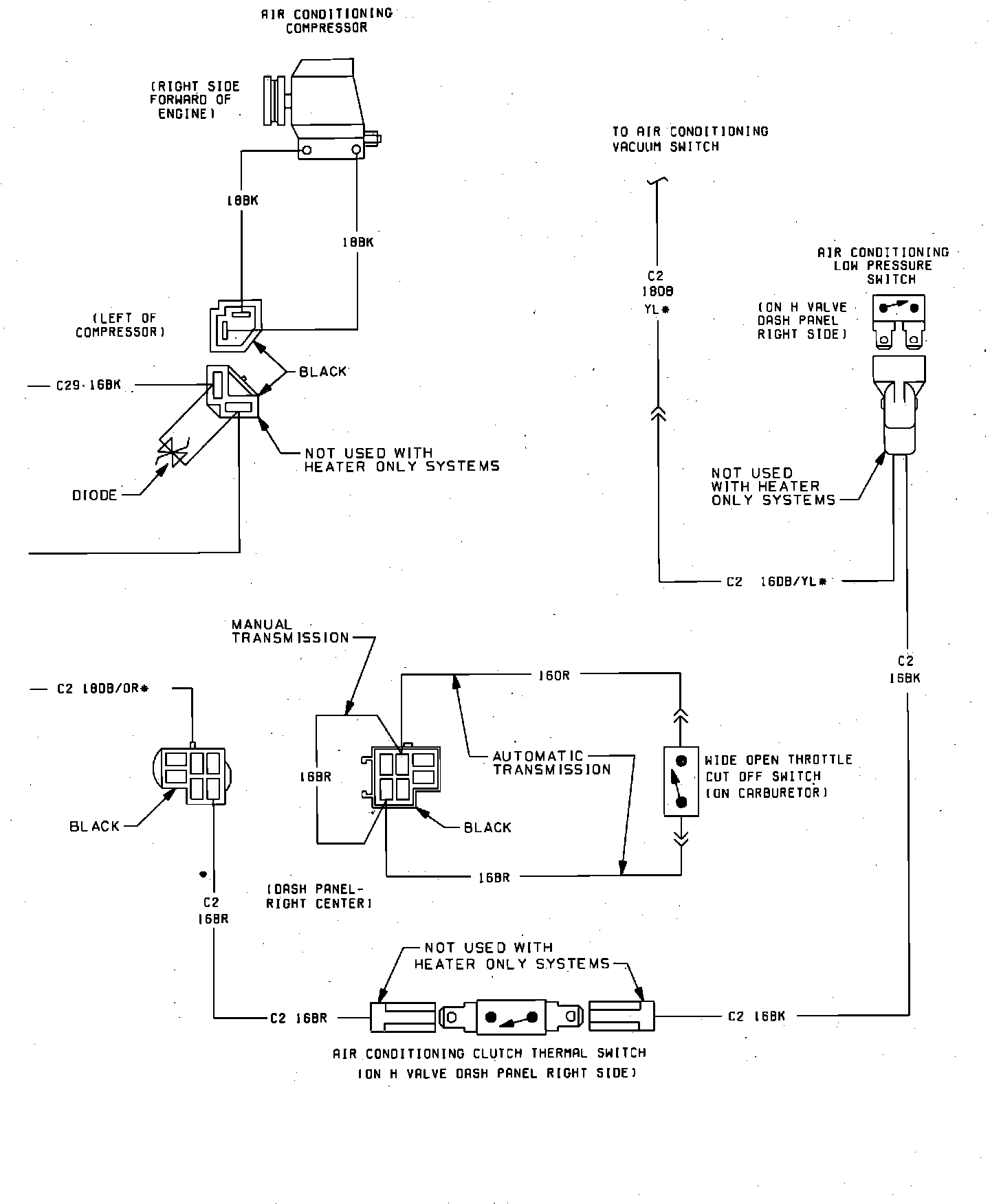

Air Conditioning And Heater System - 2.2L Carb. (Part 1 Of 2):

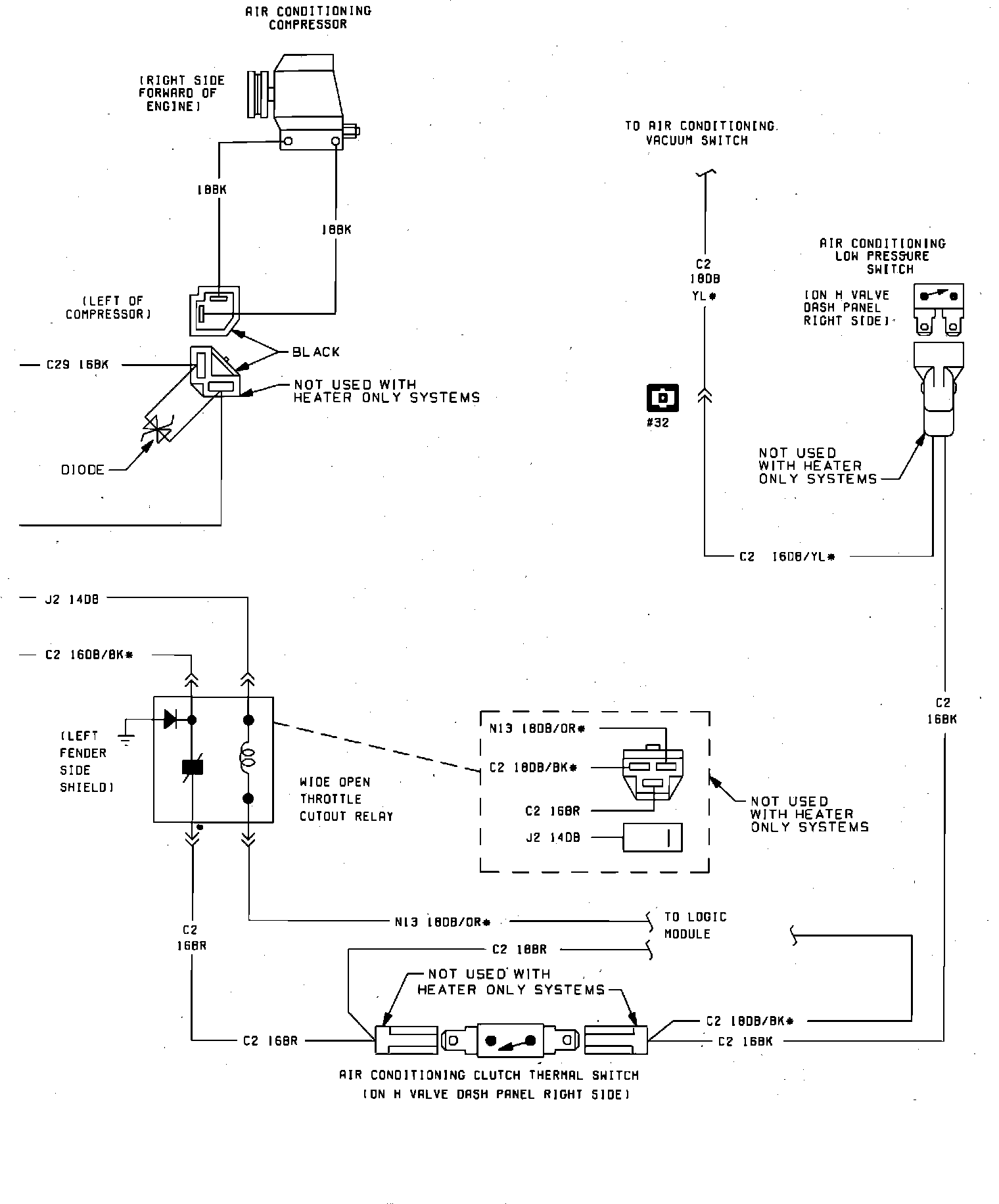

Air Conditioning And Heater System - 2.2L Carb. (Part 2 Of 2):
