Oil Temperature Sensor/Switch, Engine

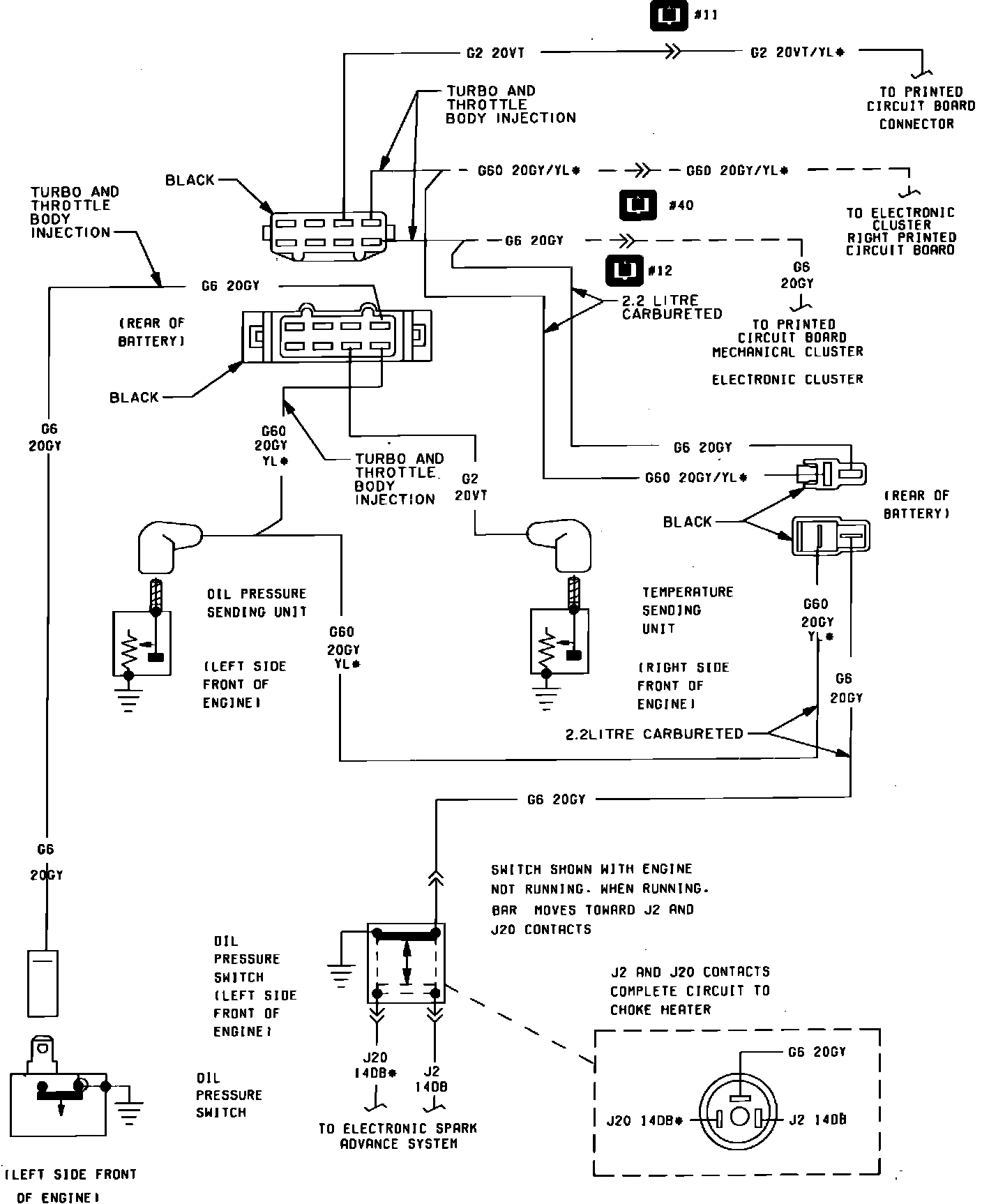

Fig. 84 Oil Pressure & Temperature Warning System Wiring Circuit. 1984 4-135/2.2L:
