Home >> Chrysler >> 1984 >> Lebaron Convertible L4-134 2.2L VIN C 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Front End Lighting >> With Fuel Injection

With Fuel Injection

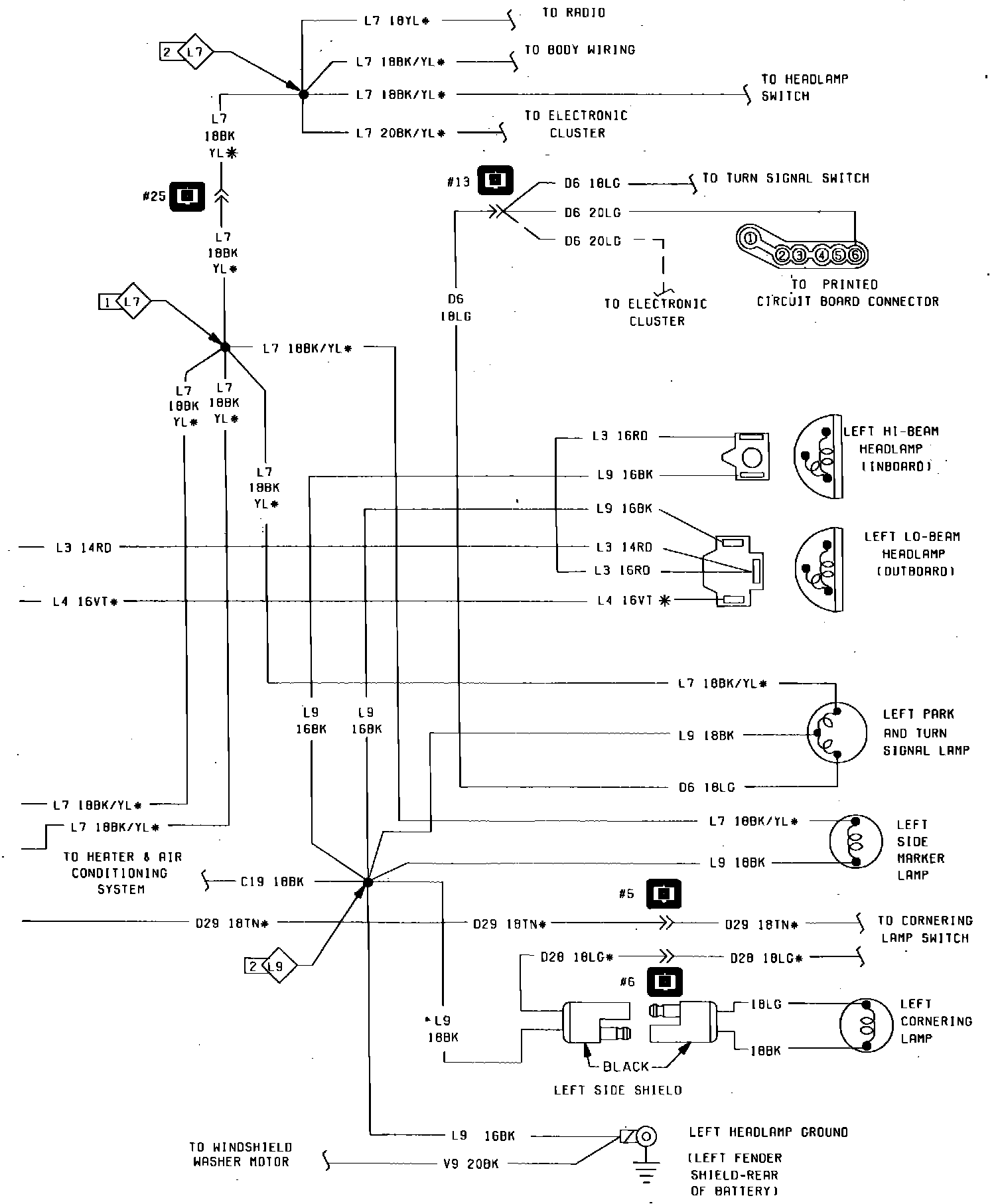

Fig. 59 Front End Wiring (Part 1 of 2). 1984 4-135/2.2L W/Fuel Injection:



Fig. 59 Front End Wiring (Part 2 of 2). 1984 4-135/2.2L W/Fuel Injection:
