Home >> Chrysler >> 1984 >> E Class L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> No Start Testing >> Start Here

Start Here

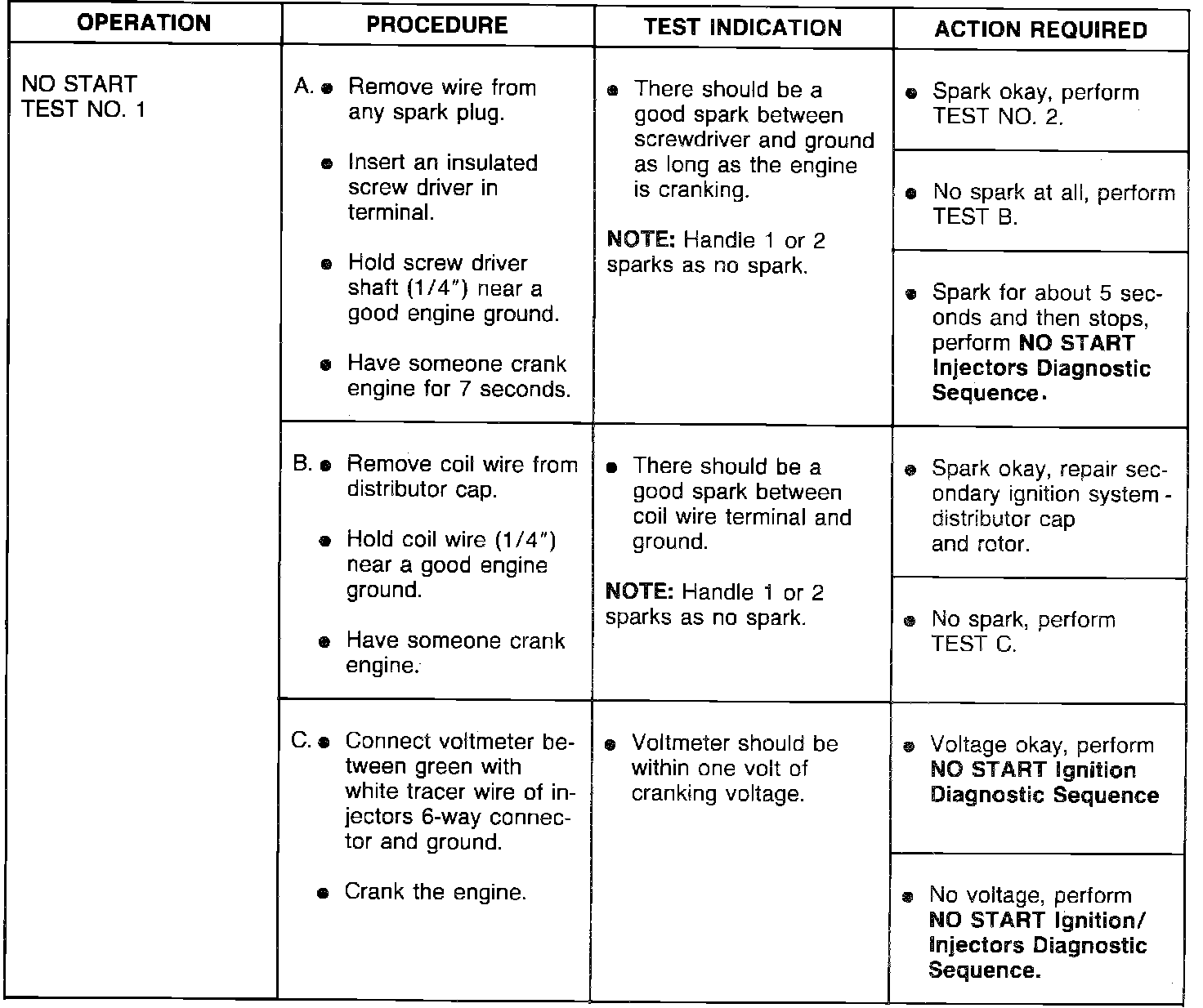

Test 1, Step A, B & C:






Test 2:

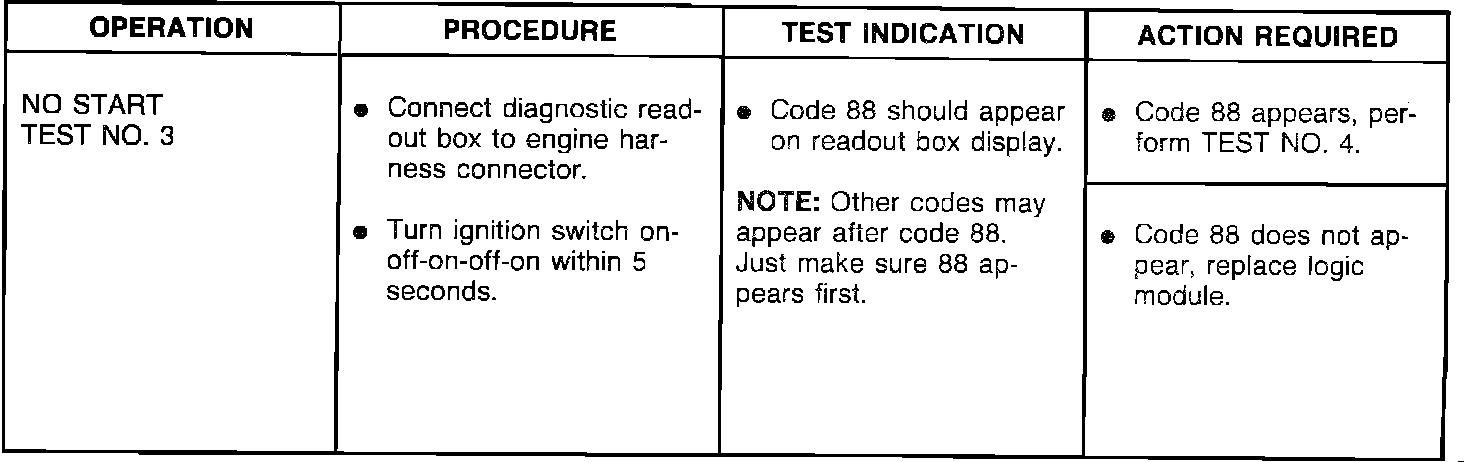

Test 3:






Test 4:

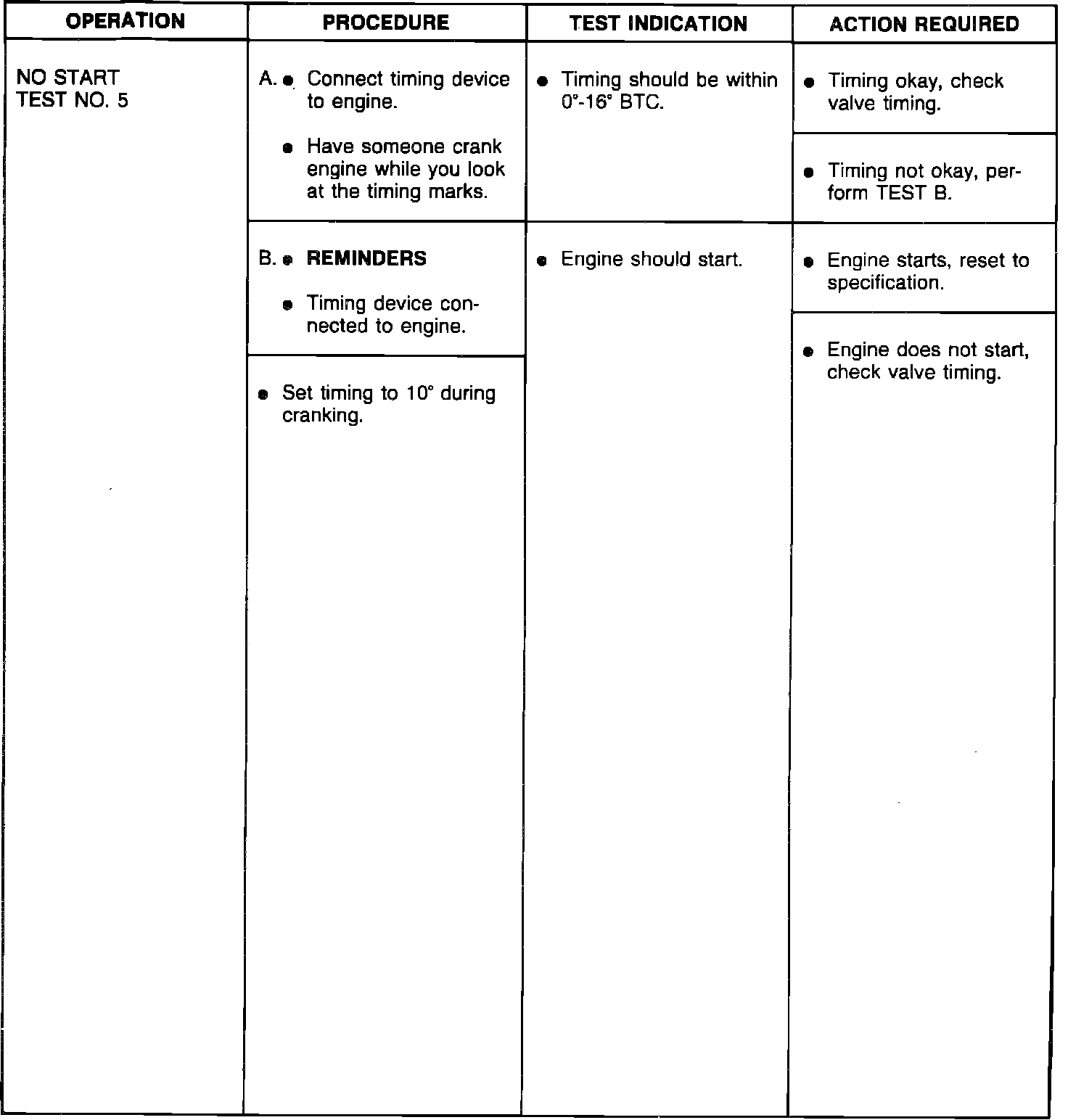

Test 5, Step A & B:
