Home >> Chrysler >> 1984 >> E Class L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> No Start Testing >> Injectors >> Test 2 and 3

Test 2 and 3

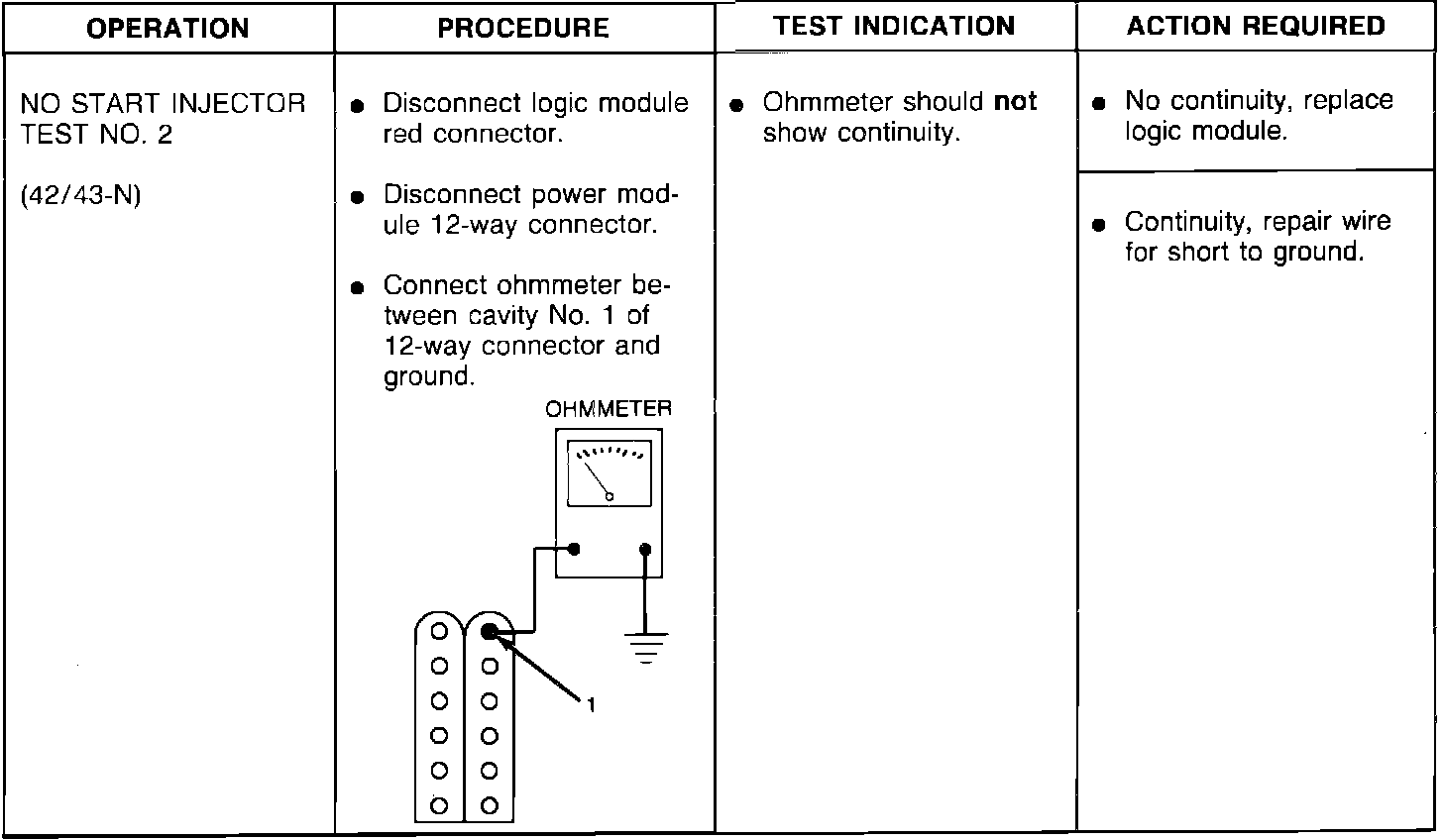

Test 2:

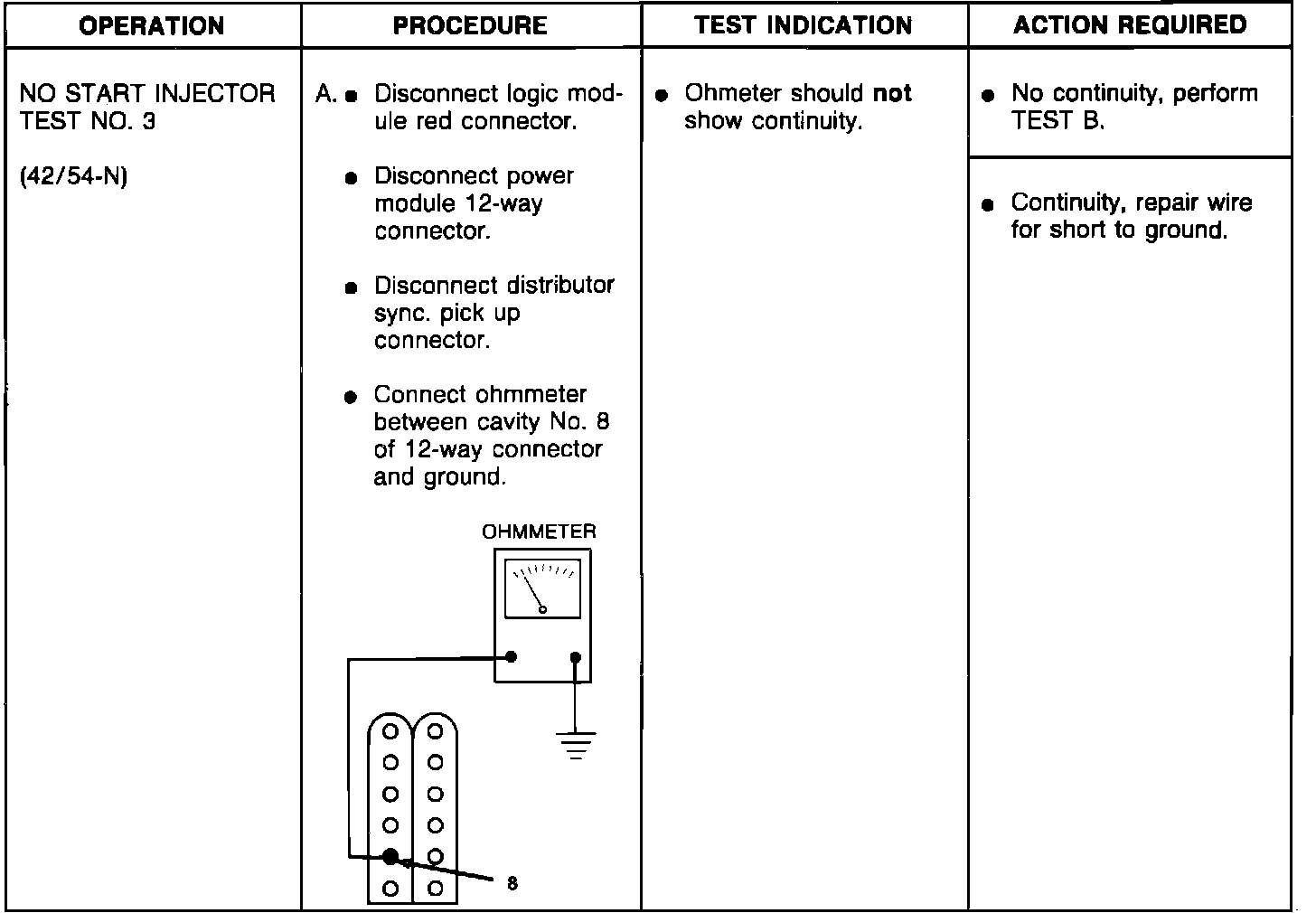

Test 3, Step A:

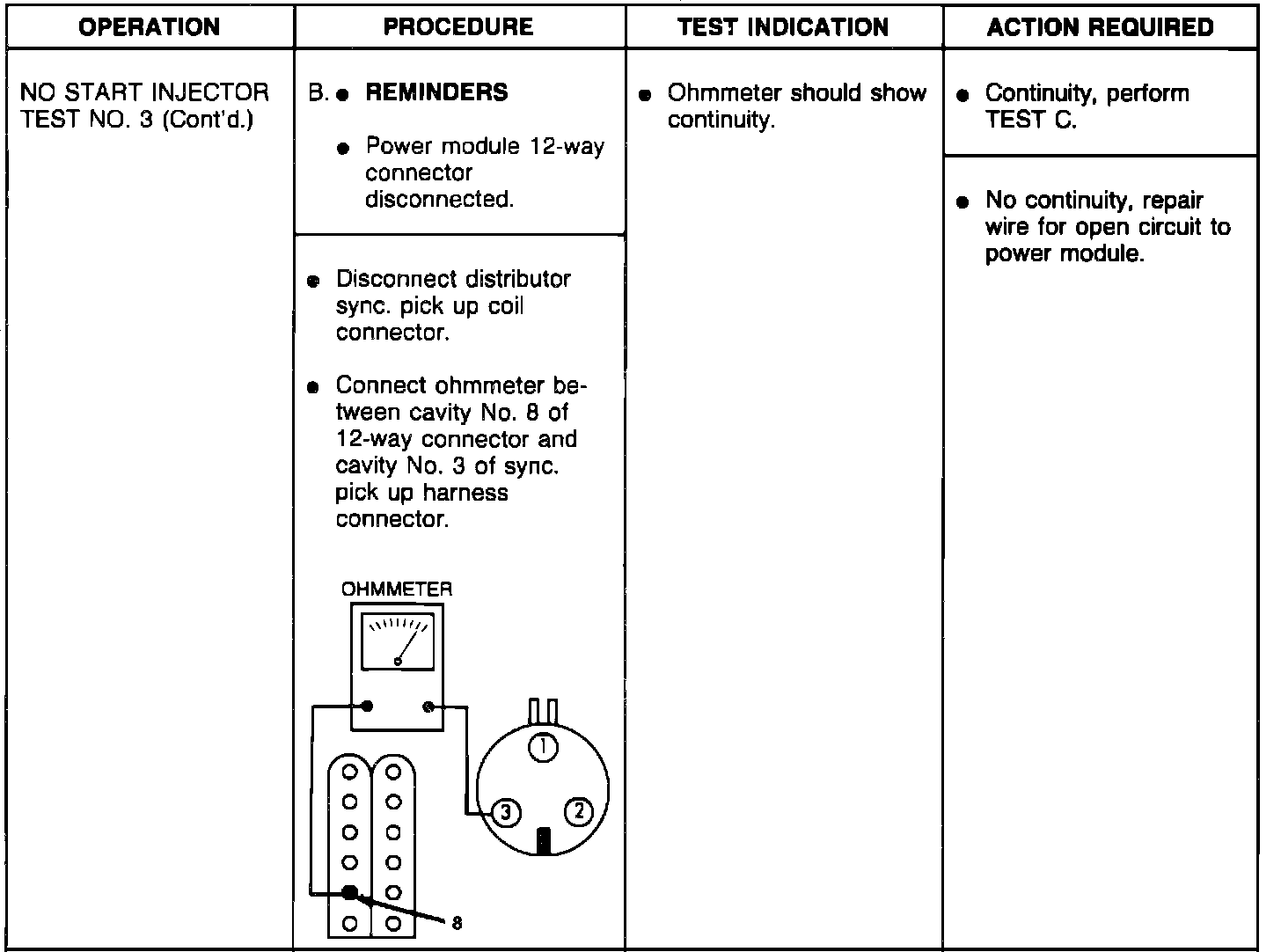

Test 3, Step B:

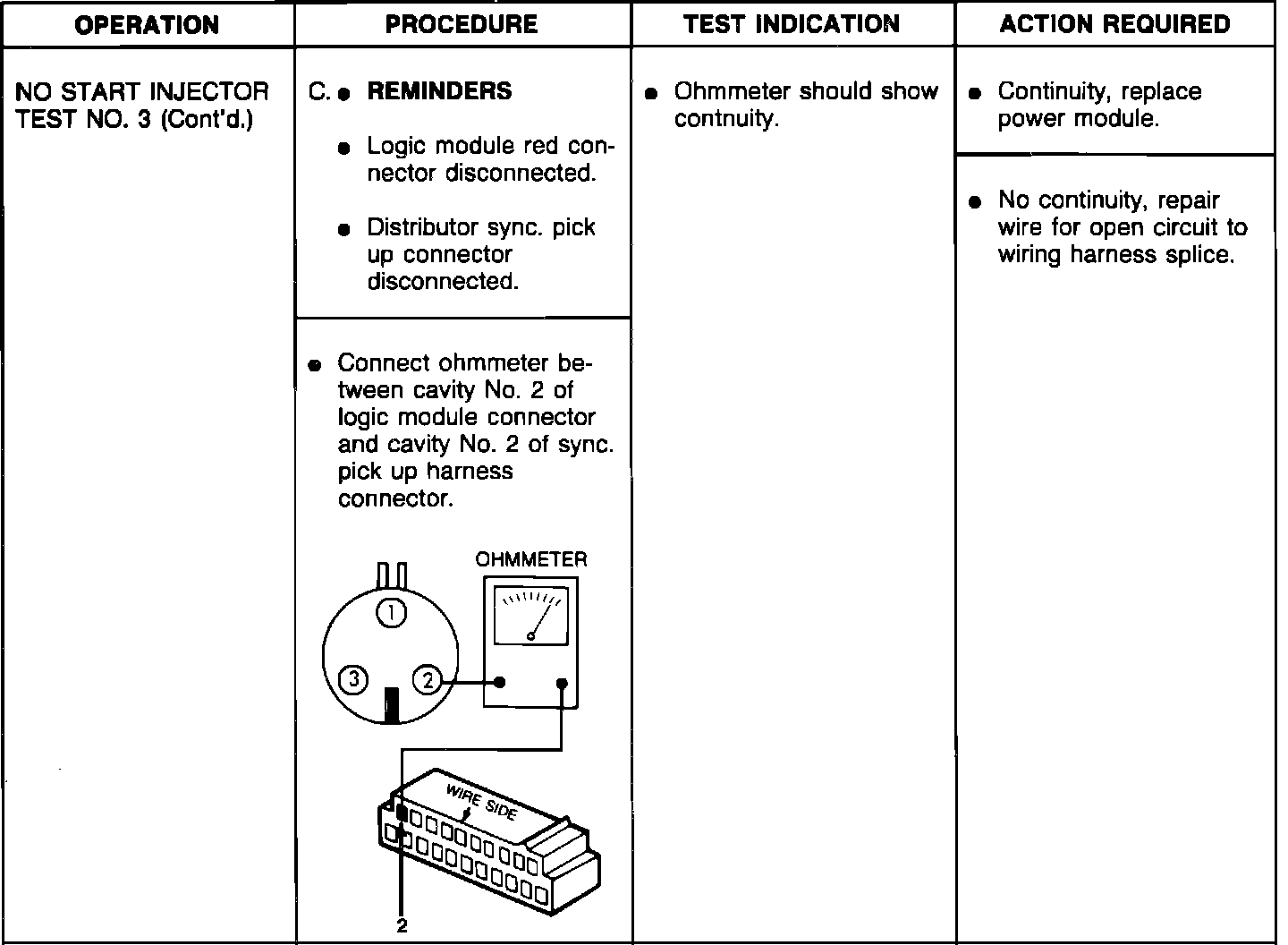

Test 3, Step C:
