Home >> Chrysler >> 1984 >> E Class L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> No Start Testing >> Ignition/Injectors >> Test 2

Test 2




Test 2, Step A:






Test 2, Step B:






Test 2, Step C & D:






Test 2, Step E:






Test 2, Step F:






Test 2, Step G:

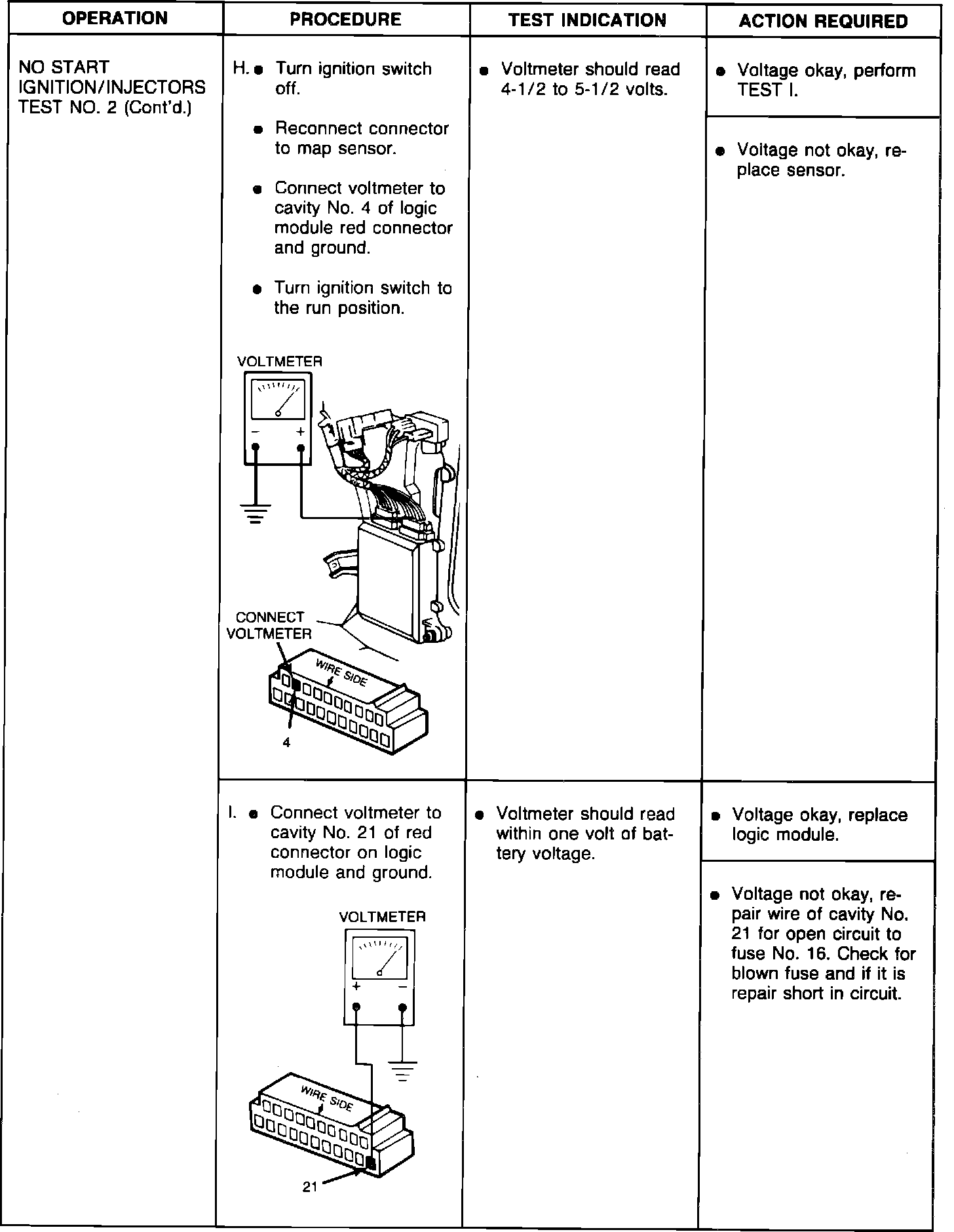

Test 2, Step H & I:

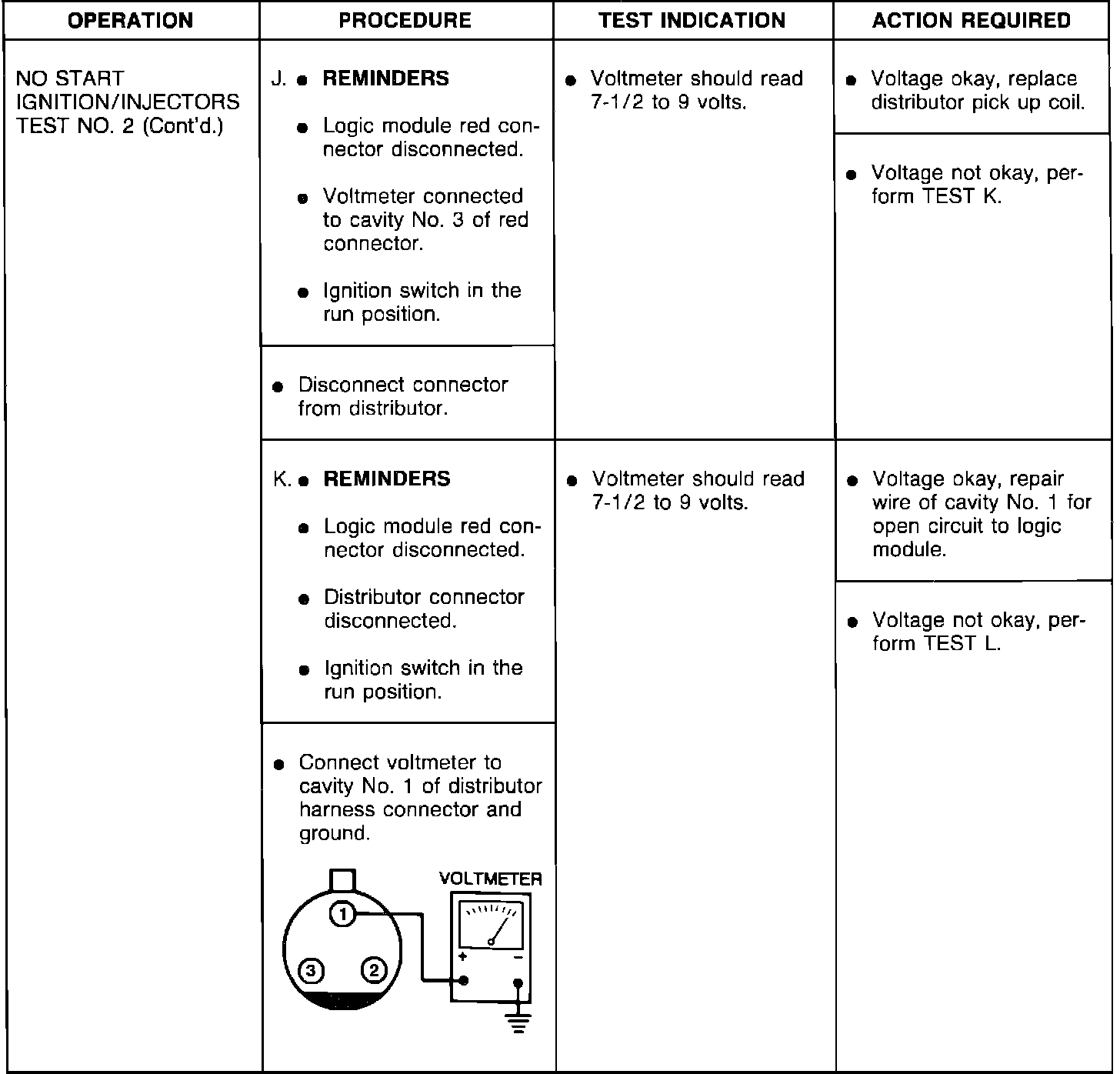

Test 2, Step J & K:






Test 2, Step L:






Test 2, Step M:
