E Class L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Hard Start, Start/Stall or Excessive Idle Speed
>>

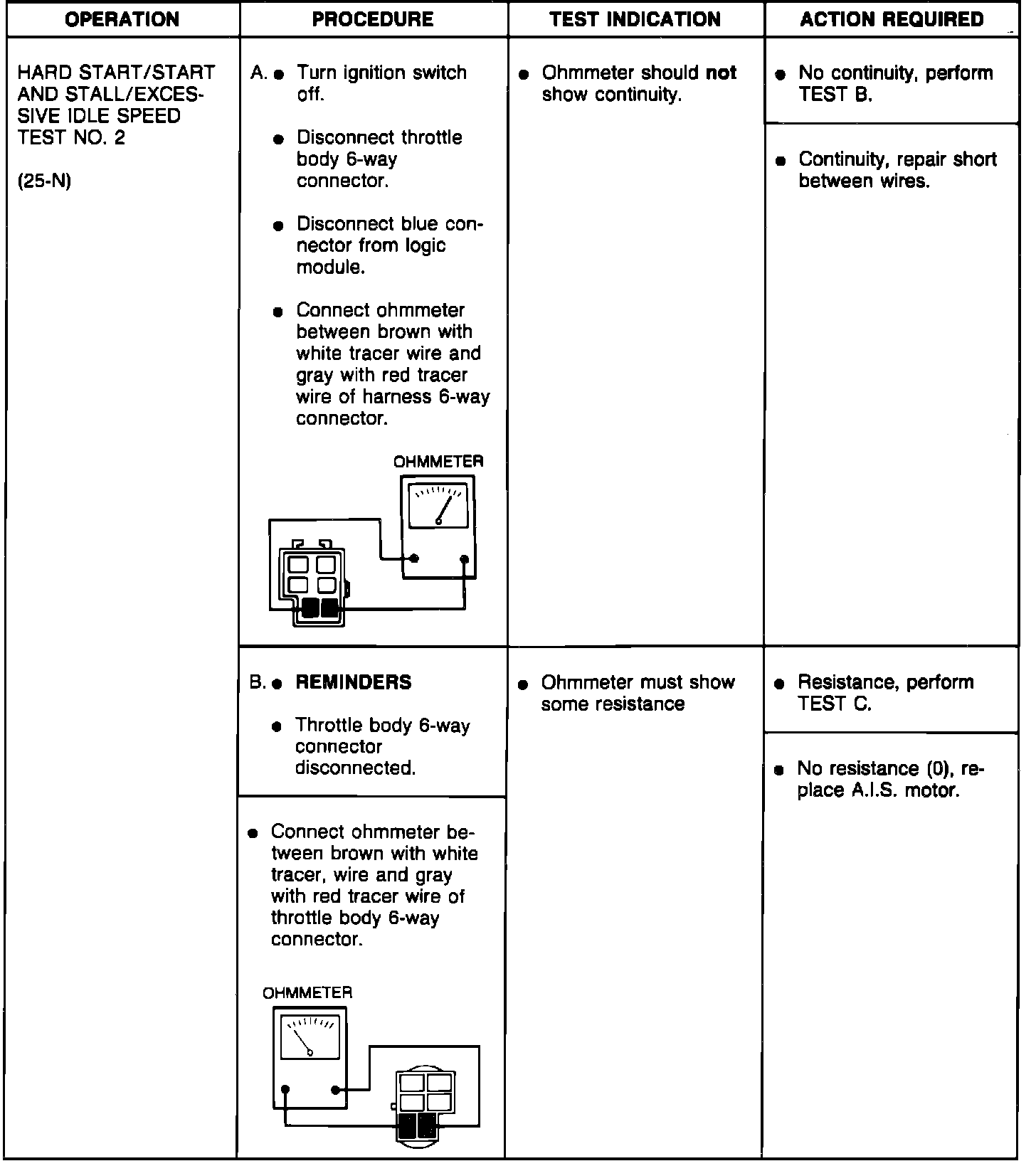

Test 2, Step A & B
Test 2, Step A & B
Test 2, Step A & B:
