Logic Module

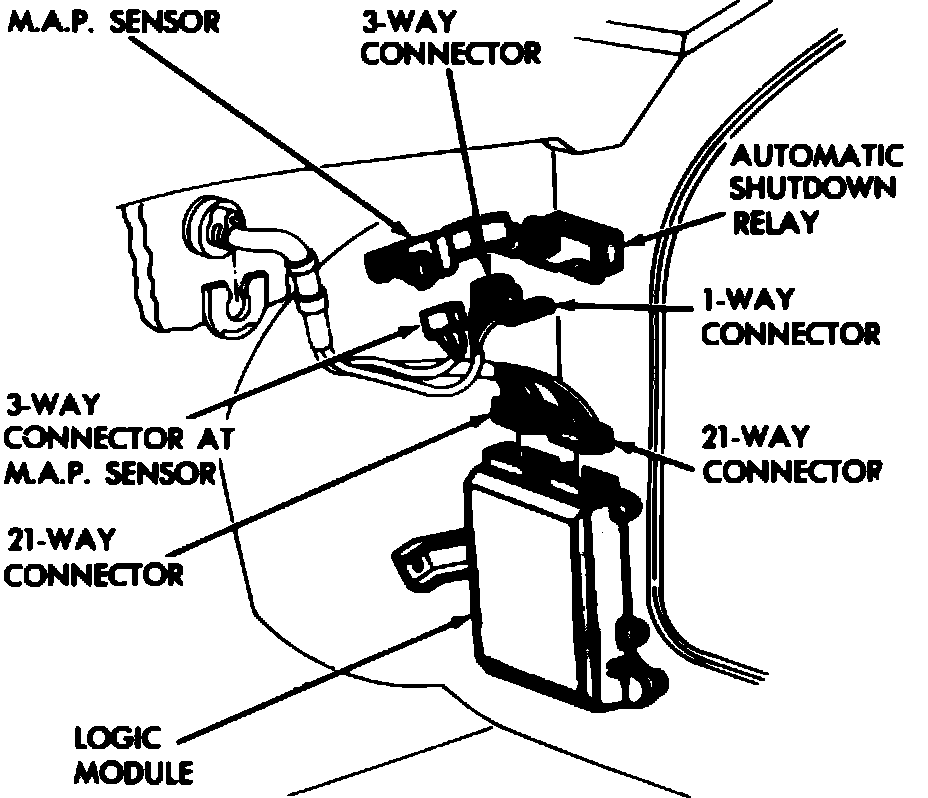

Fig. 8 Typical logic module & automatic shutdown (ASD) relay replacement:

1984-87
1. Remove right side kick panel, then the module attaching screws, Fig. 8.
2. Disconnect electrical connectors from module, then remove module from vehicle.
3. Reverse procedure to install.
