System Diagram

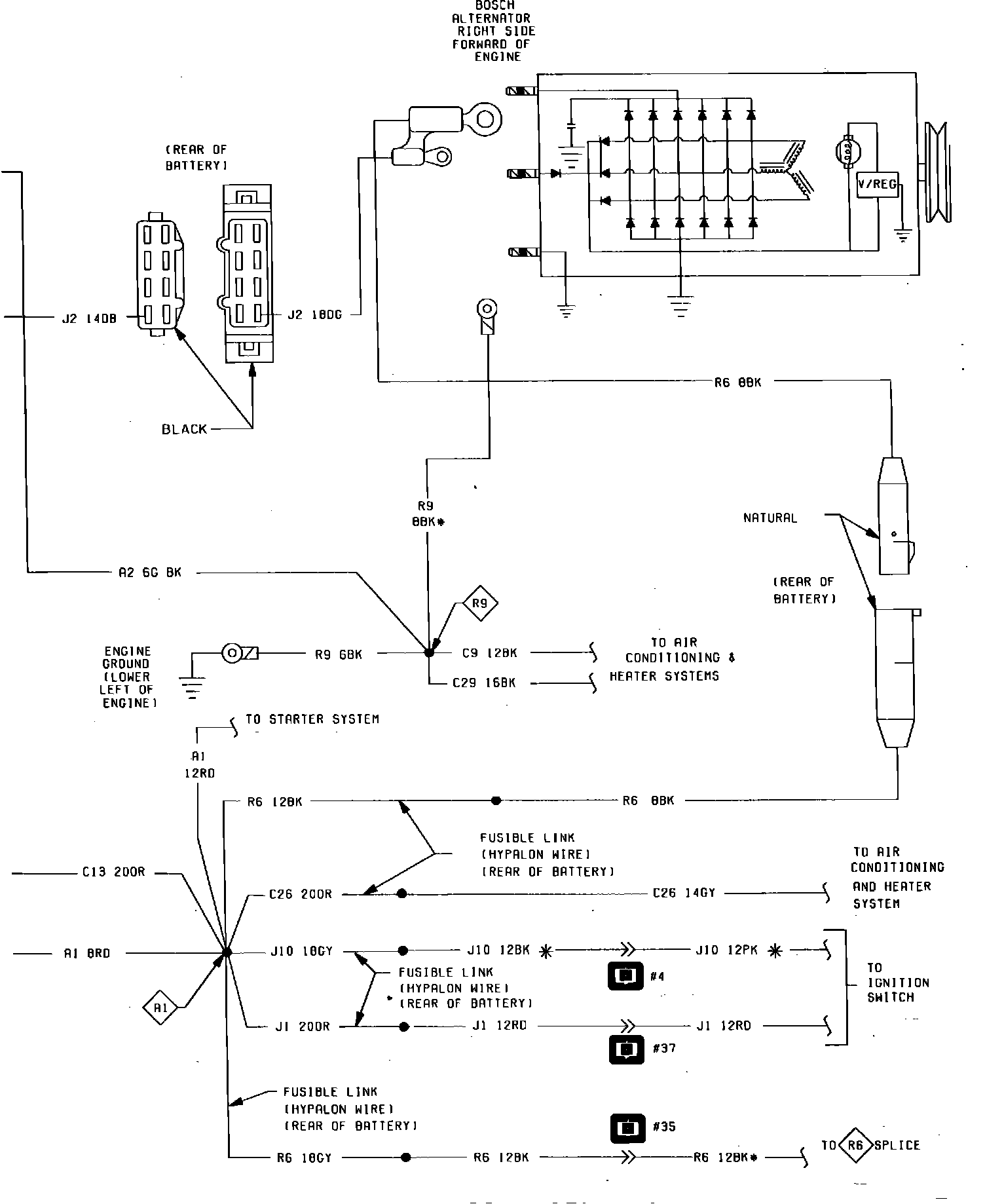

Fig. 30 Charging System Wiring Circuit (Part 1 of 2). 1984 4-135/2.2L W/Fuel Injection:



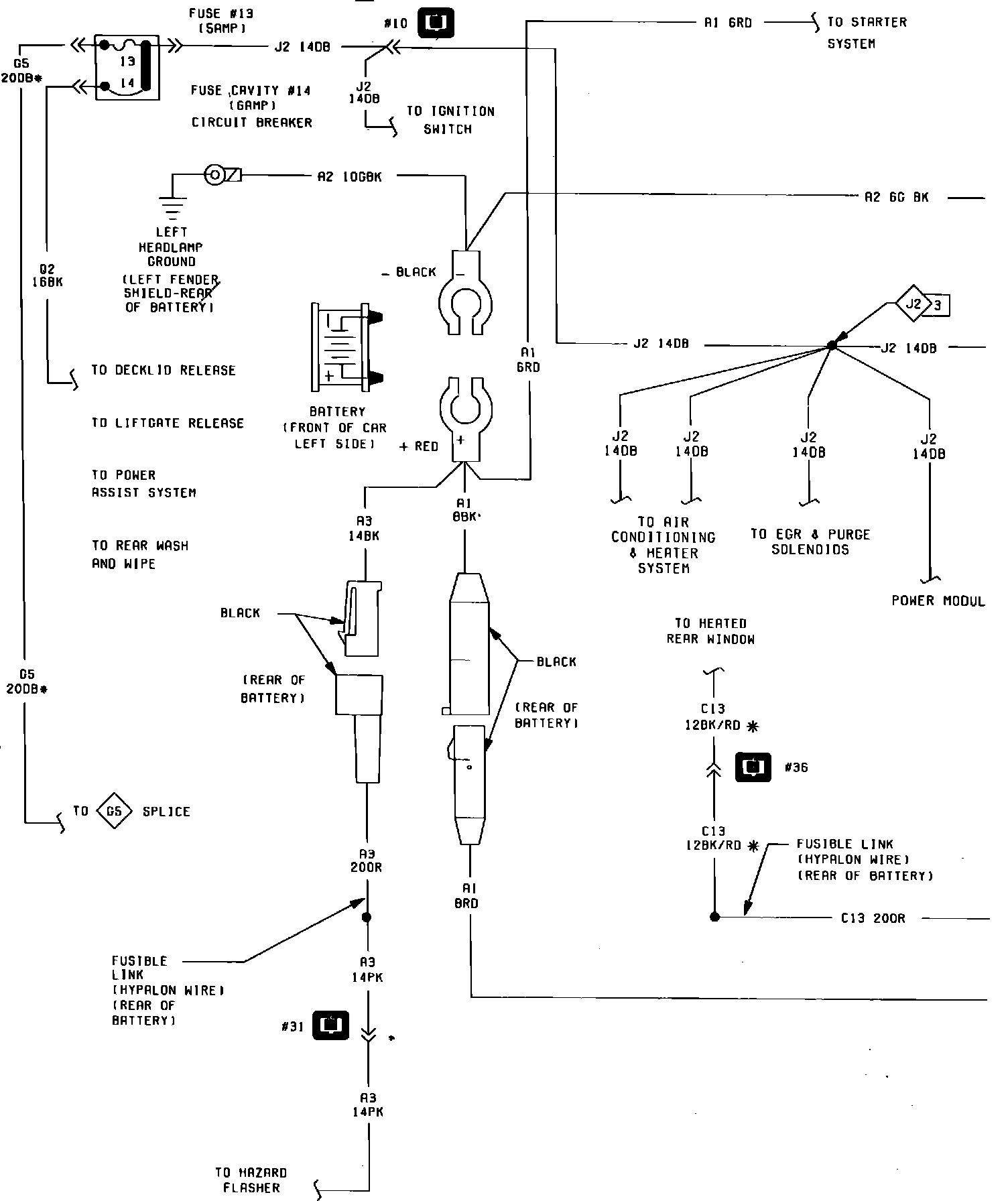

Fig. 30 Charging System Wiring Circuit (Part 2 of 2). 1984 4-135/2.2L W/Fuel Injection:



Fig. 122 Starter Wiring Circuit. 4-135/2.2L:
