Wiper Motor: Adjustments

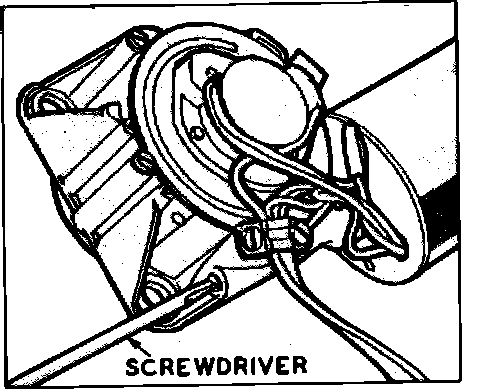

Fig. 13 Endplay adjustment:

END PLAY ADJUSTMENT
Most windshield wiper motors have a provision to adjust the armature shaft end play, by turning the adjustment screw in until it bottoms and backing off 1-16 turn. This adjustment can be made without removing the wiper motor from the vehicle.
