Vehicle Identification Ram 50/Arrow Pickup "SP-27" & "SP-27F"

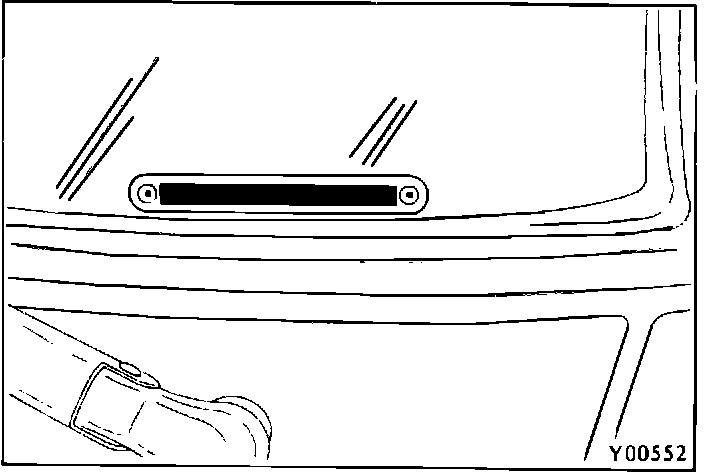

FIGURE 1 - VEHICLE IDENTIFICATION NUMBER:

VEHICLE IDENTIFICATION NUMBER LOCATION

The vehicle identification number (VIN) is located on a plate attached to the left top side of the instrument panel and visible through the windshield. (Fig. 1)

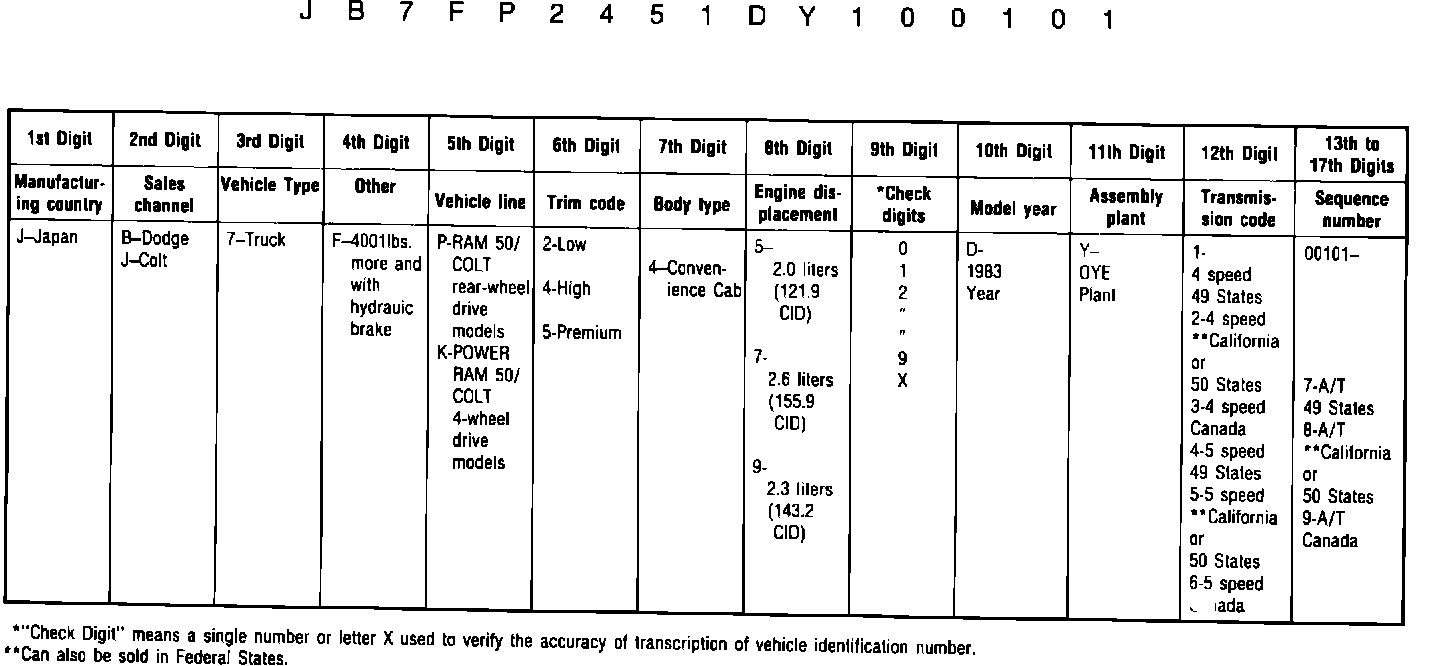

VEHICLE IDENTIFICATION CODE CHART PLATE

All vehicle identification number contains 17 digits. The vehicle number is a code which tells destination, brand, sales code, price class, engine displacement, type of body, etc.

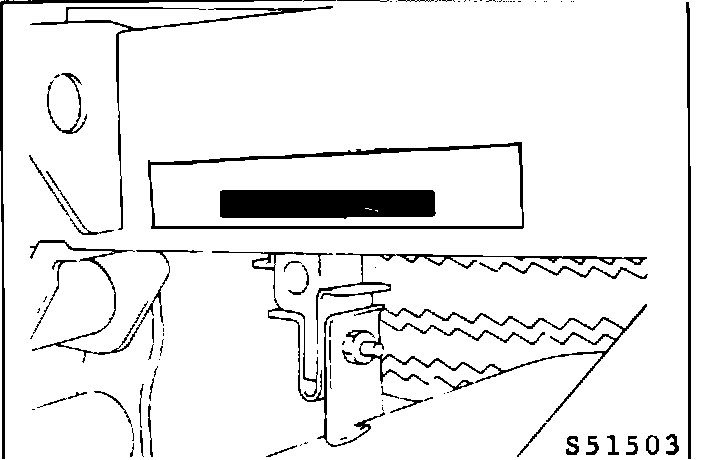

FIGURE 2 - STAMPING LOCATION:

CHASSIS NUMBER

Stamping Location

The chassis number is stamped on the sidewall of the frame near the rear spring hanger. (Fig. 2)

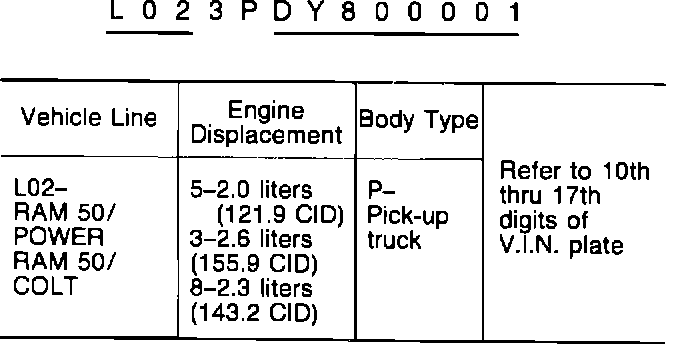

Chassis Number Code Chart

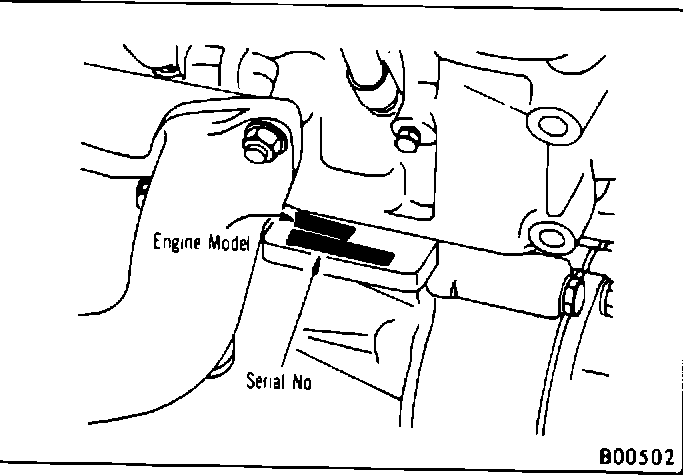

FIGURE 3 - ENGINE MODEL NUMBER AND SERIAL NUMBER:

ENGINE MODEL STAMPING

The engine model number and engine serial number are stamped onto the cylinder block in the locations indicated in the illustrations. (Fig. 3)
ENGINE MODEL STAMPING

(1) The engine model number is stamped near the engine serial number as shown in Fig. 3.
Engine Engine Remarks
model displacement

G52B 2.0 liters For U.S.A.
( U-engine) (121.7 CID)

4G52 2.0 liters For Canada
(U-engine) (121.7 CID)

G54B 2.6 liters For U.S.A.
(W-engine) (155.9 CID)
Engine Serial Number

G63R and 4G63 (U-engine) 63AA0201 t0 63YY9999
G54B and 4G54 (W-engine) 54AA0201 to 54YY9999
4D44 (TBD-engine) D5AA0201 to D5YY9999


Paint Code (A)
Model Name Engine displacement Remarks

G63B (U-engine) 2.0 liters (121.9 CID) For U.S.A.
4G63 (U-engine) 2.0 liters (121.9 CID) For Canada

G54B (W-engine) 2.6 liters (155.9 CID) For U.S.A.
4G54 (W-engine) 2.6 liters (155.9 CID) For Canada

4D55 (TBD- 2.3 liters (143.2 CID) For U.S.A.
engine) and Canada

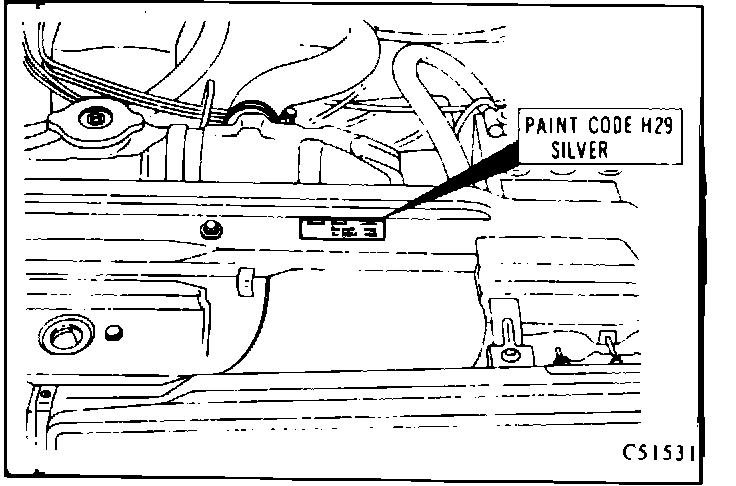

FIGURE 4 - BODY CODE PLATE LOCATION:

BODY COLOR PLATE

The body color plate is located on headlight support panel.
Body Color Code Information

The body color code contains (A) Paint Code and (B) Body Color Name.


Paint Code (A) Body Color (B)

B91 L/BLUE (M)
C90 BROWN (M)
H39 MED/GRAY (M)
H80 SILVER (M)
R55 RED
R73 RED
S34 BEIGE
W42 WHITE

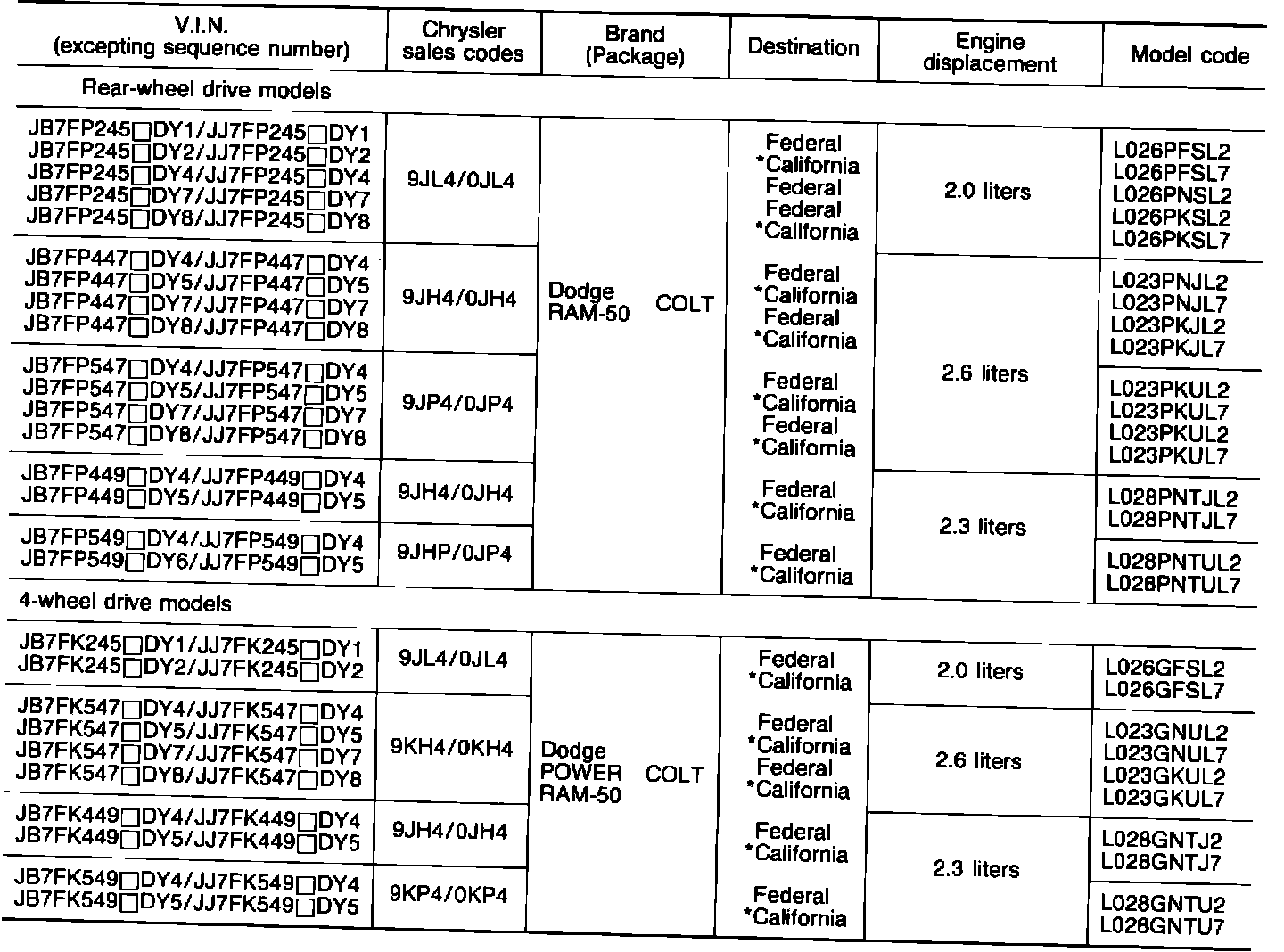

VEHICLE IDENTIFICATION NUMBER LIST

Cars for U.S.A.
