Circuit Resistance Test

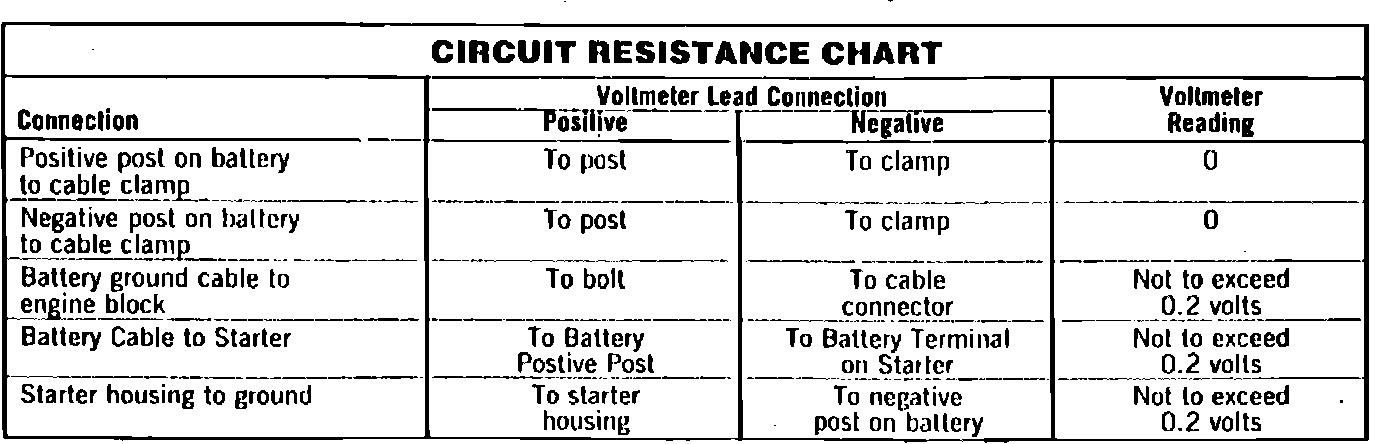

Fig. 3 Circuit resistance chart:

1. Connect voltmeter leads across each connection shown in circuit resistance chart.
2. If readings are higher than specified, clean or repair connection, then repeat test.
