Electrical Diagrams

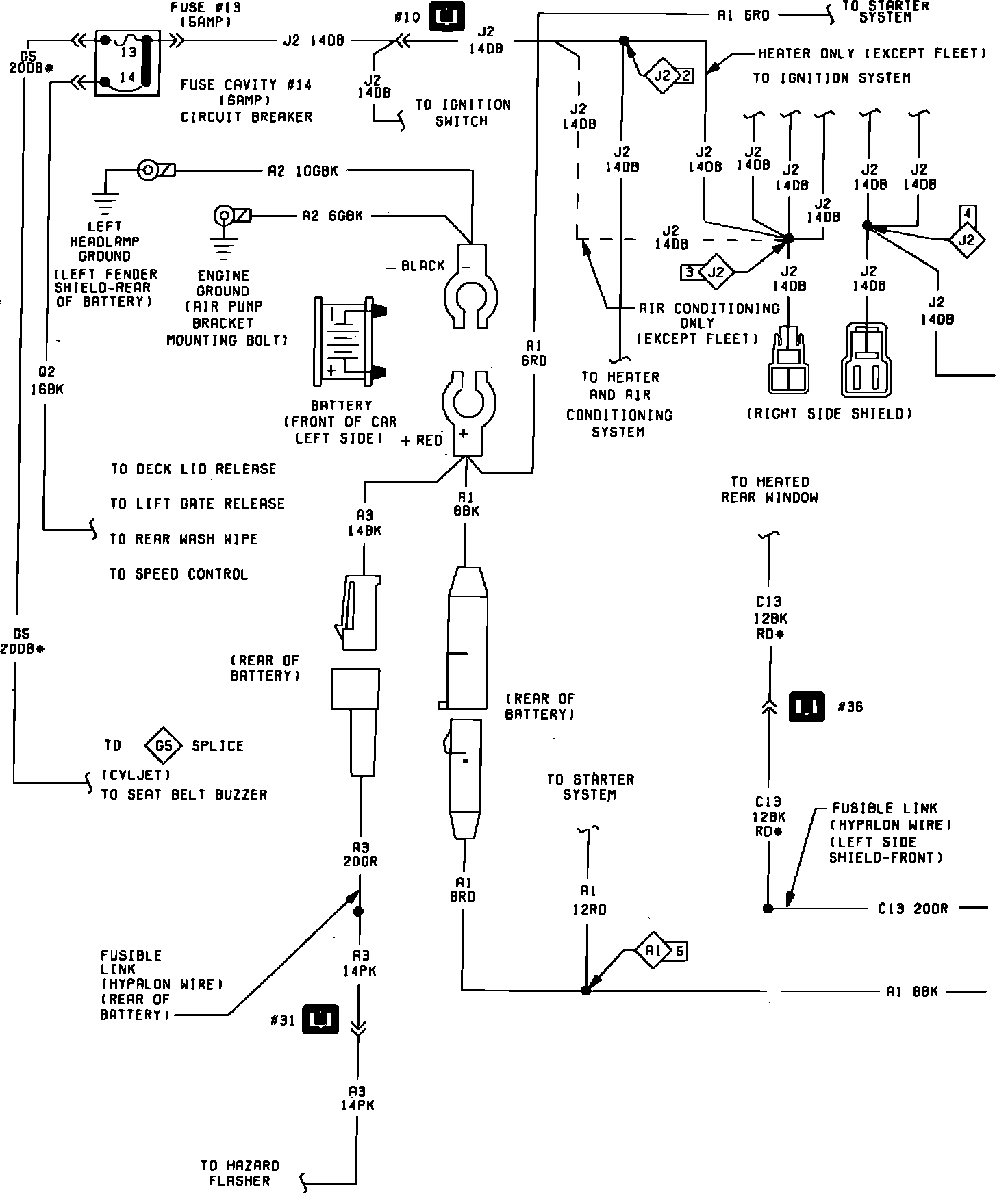

Fig. 28 Charging System Wiring Circuit. 1983 4-156/2.6L (Part 1 of 2):

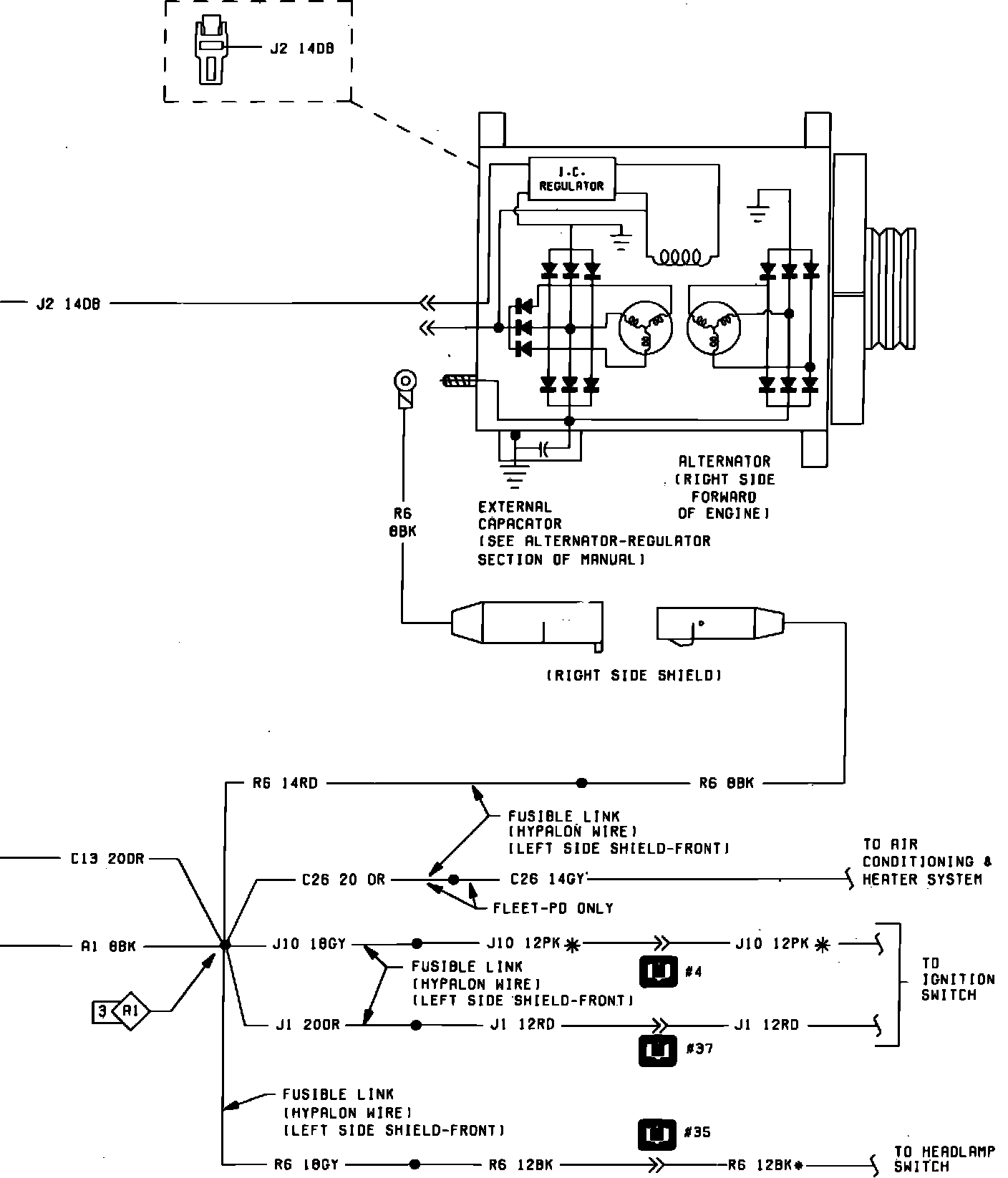

Fig. 28 Charging System Wiring Circuit. 1983 4-156/2.6L (Part 2 of 2):
