Current Output Test

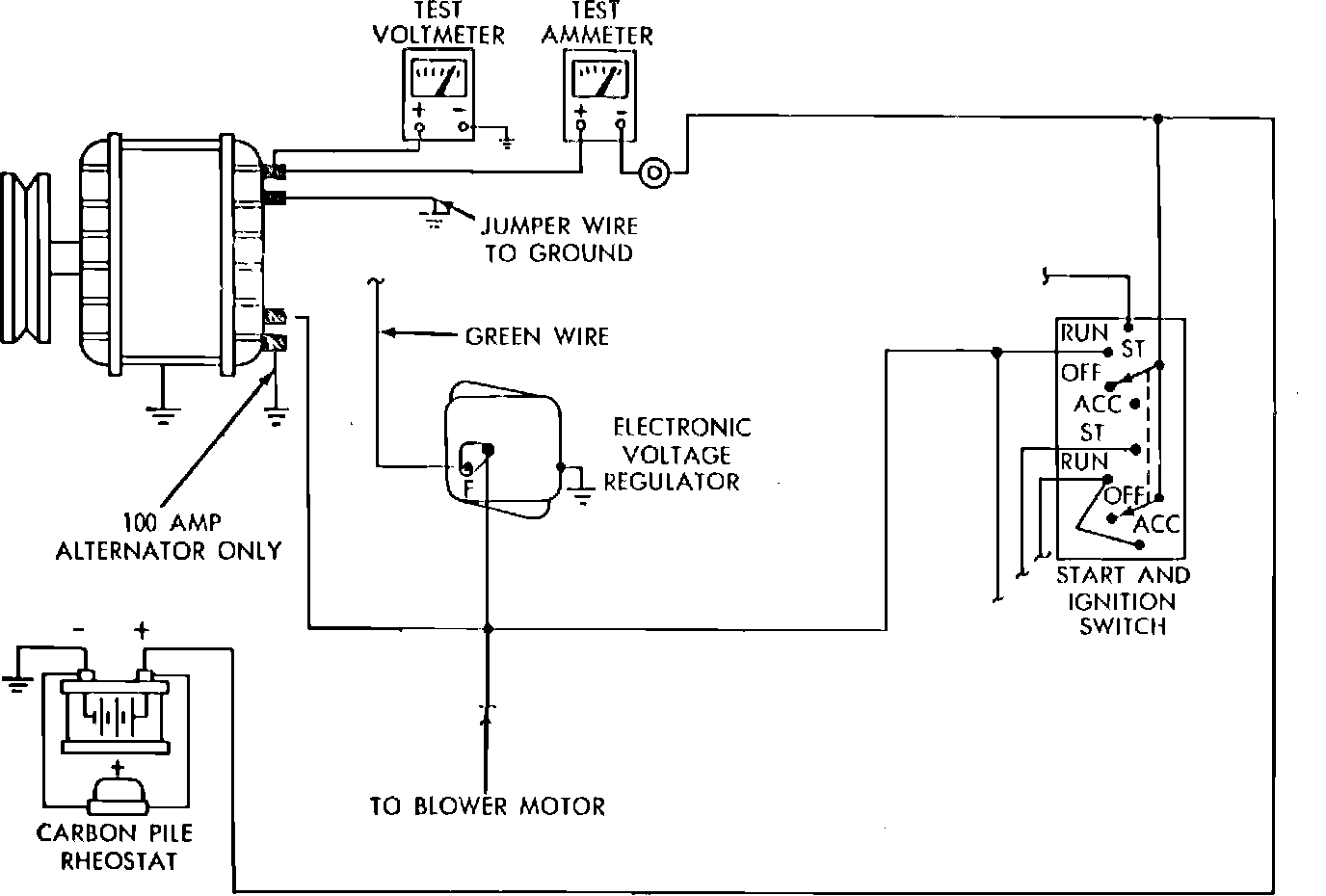

Fig. 7 Current output test. 1982---83 alternators:

When testing alternators except 100 and 114 amp units, use a 0---100 amp ammeter. When testing 100 and 114 amp alternators, use a 0---150 amp ammeter.
EXC. UNITS W/REGULATOR IN-ENGINE ELECTRONICS
1. Disconnect battery ground cable, complete test connections as shown and start engine and operate at idle. Immediately after starting, reduce engine speed to idle.
2. Adjust the carbon pile and engine speed in increments until a speed of 1250 RPM and 15 volts are obtained on all units except 100 and 114 amp alternators. On 100 and 114 amp alternators, obtain engine speed of 900 RPM and 13 volts. While increasing speed, do not allow voltage to exceed 16 volts.
3. Check ammeter reading. Output current should be within specifications.
